Hex Inverte rwith Schmitt Trigger Inputs,74AHC14XS14GTR-Replace-74HCT14PW.
74AHC14
74AHC14.pdf
74AHC14.pdfFEATURES
? Wide Operating Voltage Range: 2.0V to 5.5V
? Inputs Accept Voltages Higher than the Supply
Voltage
? +8mA/-8mA Output Current
? All Inputs with Schmitt Trigger Actions
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOIC-14 Package
PIN CONFIGUTION
优势替代
FEATURES
? Complies with JEDEC standard no. 7A
? Low-power dissipation
? ESD protection:
HBM JESD22-A114F exceeds 2000 V
MM JESD22-A115-A exceeds 200 V
? Multiple package options
? Specified from -40 ℃ to +85℃ and from -40 ℃to +125℃

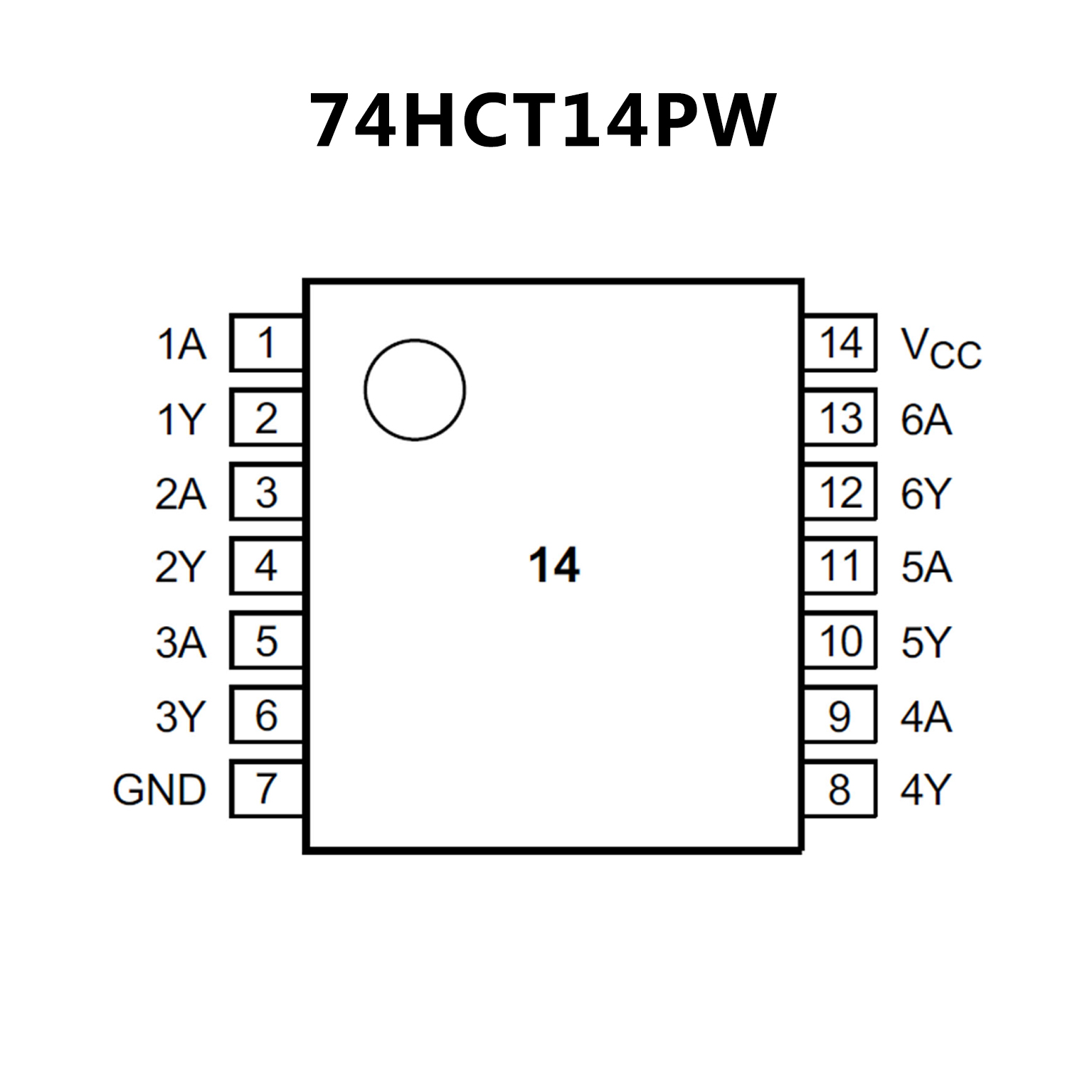

PIN CONFIGUTION
