Automotive Single 3-Input Positive AND Gate, 74LVC1G11QC6G Replace 74LVC1G11GW-Q100.
74LVC1G11QC6G
74LVC1G11QC6G.pdf
74LVC1G11QC6G.pdfFEATURES
? AEC-Q100 Qualified for Automotive Applications
Device Temperature Grade 1
TA = -40℃ to +125℃
? Wide Supply Voltage Range: 1.65V to 5.5V
? Inputs Accept Voltages up to 5.5V
? +24mA/-24mA Output Current at VCC = 3.0V
? Low Quiescent Current: ICC = 0.1μA (TYP)
? Propagation Delay: 5.25ns (TYP) at VCC = 3.3V
? Support Partial Power-Down Mode
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SC70-6 and SOT-23-6 Packages

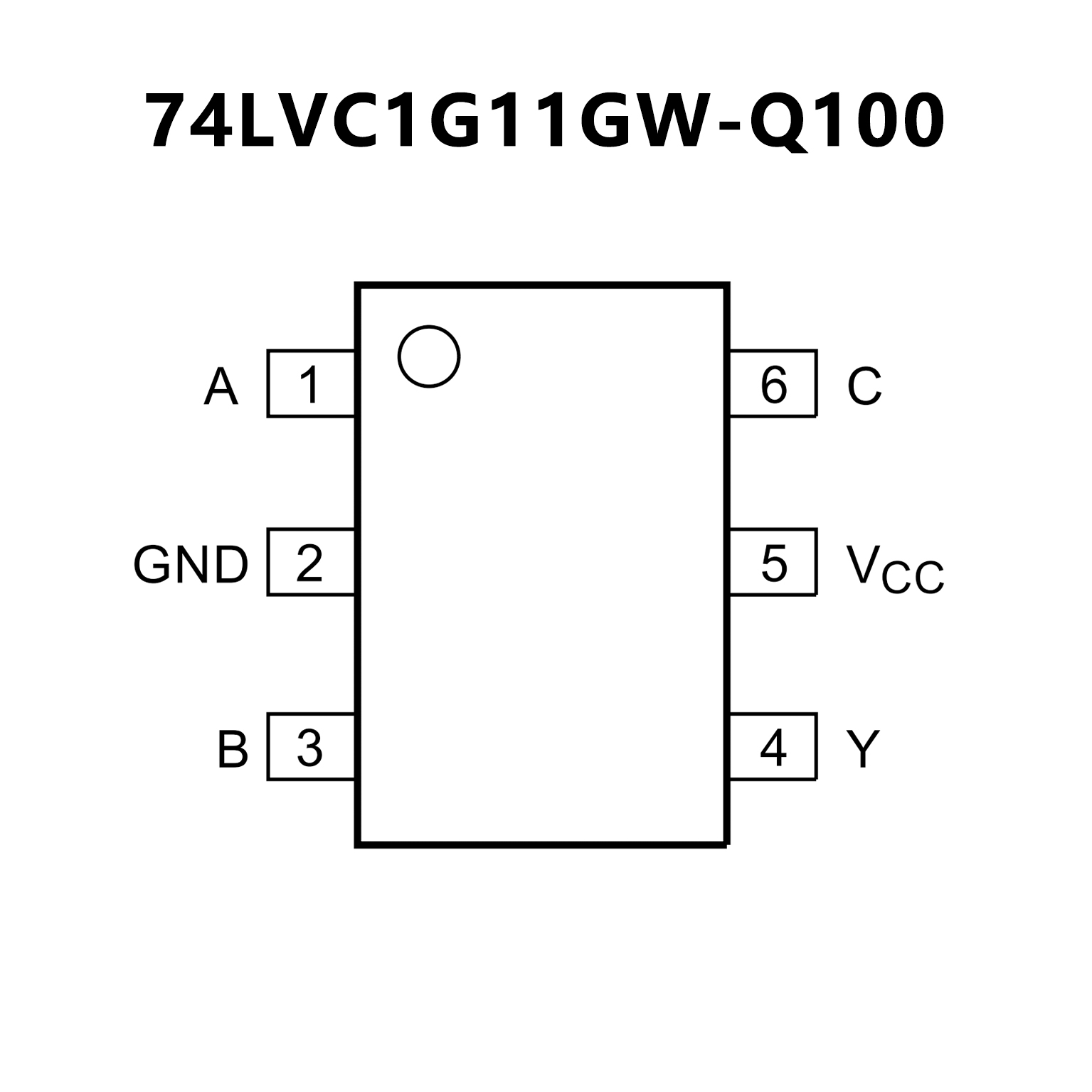

PIN CONFIGUTION
优势替代
FEATURES
? Automotive product qualification in accordance with
AEC-Q100 (Grade 1)
? Specified from -40 °C to +85 °C and -40 °C to +125 °C
? Wide supply voltage range from 1.65 V to 5.5 V
? Overvoltage tolerant inputs to 5.5 V
? High noise immunity
? ±24 mA output drive (VCC = 3.0 V)
? CMOS low power dissipation
? Direct interface with TTL levels
? ±24 mA output drive (VCC = 3.0 V)
? IOFF circuitry provides partial Power-down mode operation
? Latch-up performance exceeds 250 mA
? Complies with JEDEC standard:
? JESD8-7 (1.65 V to 1.95 V)
? JESD8-5 (2.3 V to 2.7 V)
? JESD8C (2.7 V to 3.6 V)
? JESD36 (4.5 V to 5.5 V)
? ESD protection:
? HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000V
? CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000V

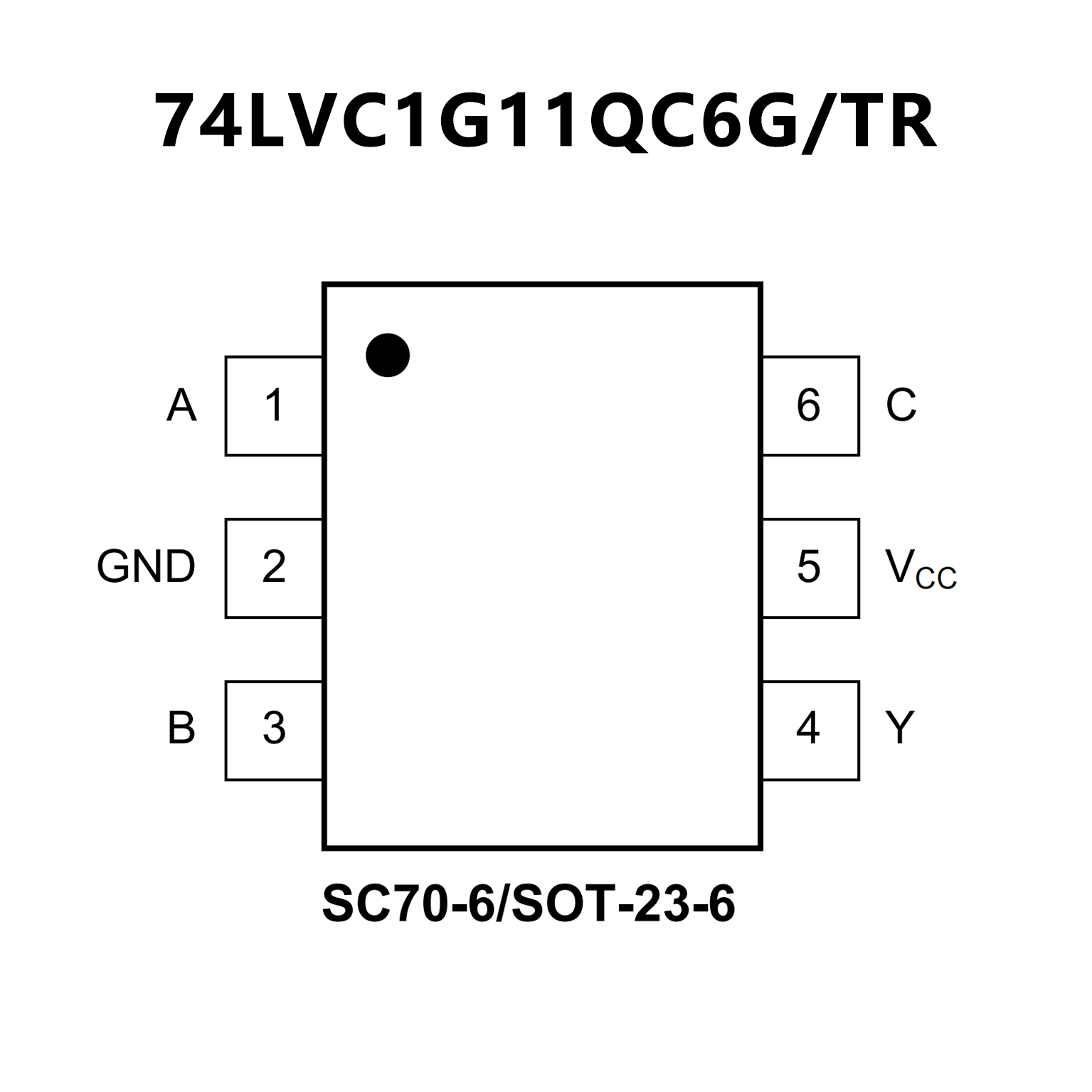

PIN CONFIGUTION
