Single 2-Input OR Gate, 74LVC1G32Q Replace 74AUP1G32GW-Q100.
74LVC1G32Q
74LVC1G32Q.pdf
74LVC1G32Q.pdfFEATURES
? AEC-Q100 (Grade 1) Qualified for Automotive Applications
TA = -40℃ to +125℃
? Wide Supply Voltage Range: 1.65V to 5.5V
? Inputs Accept Voltages up to 5.5V
? +24mA/-24mA Output Current at VCC = 3.0V
? CMOS Low Power Consumption
? High Noise Immunity
? Direct Interface with TTL Levels
? Complies with JEDEC Standards:
JESD8-7 (1.65V to 1.95V)
JESD8-5 (2.3V to 2.7V)
JESD8-B/JESD36 (2.7V to 3.6V)
? Latch-up Performance Exceeds 250mA
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SC70-5 Package

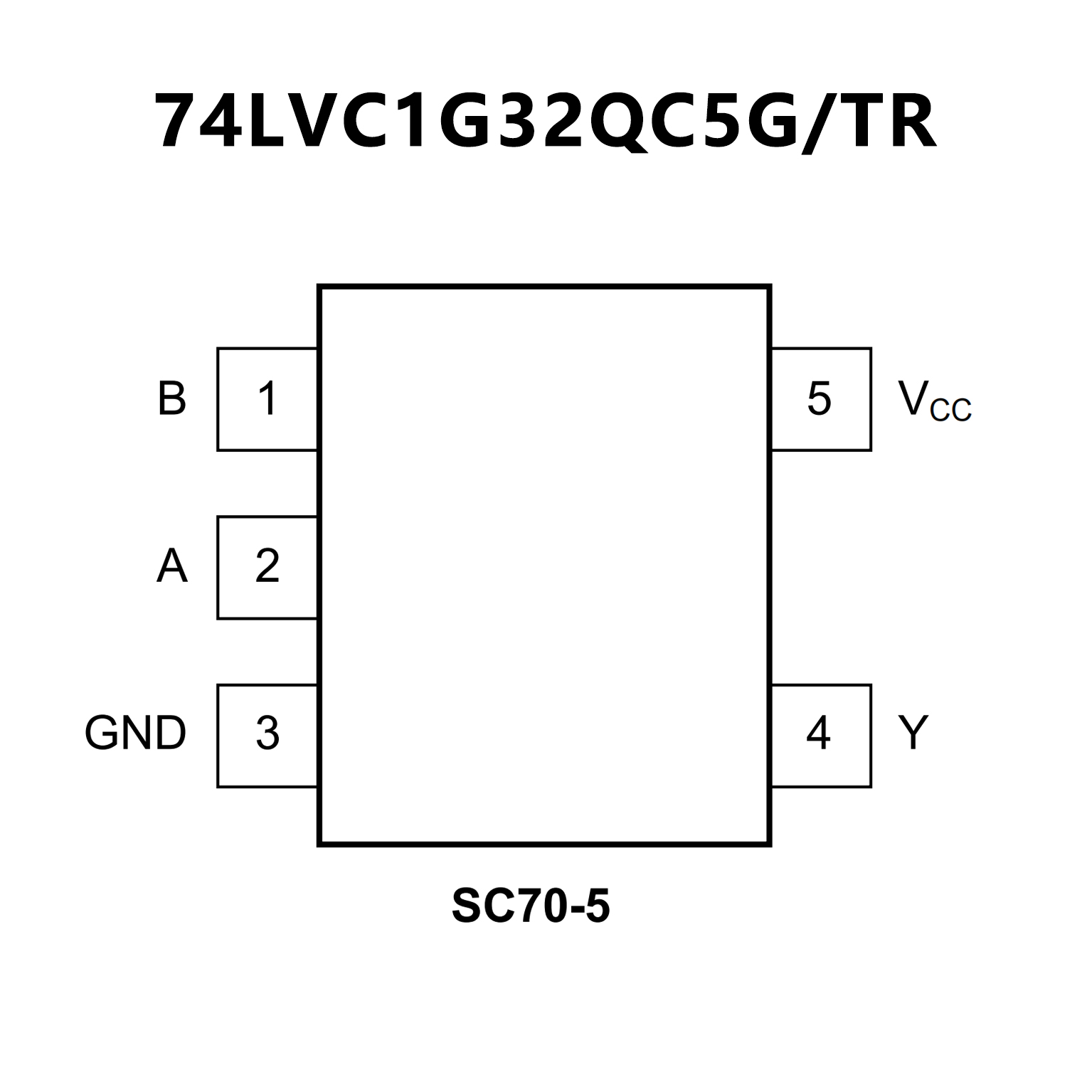

PIN CONFIGUTION
优势替代
FEATURES
? Automotive product qualification in accordance with
AEC-Q100 (Grade 1)
? Specified from -40°C to +85°C and from -40°C to +125°C
? Wide supply voltage range from 0.8 V to 3.6 V
? High noise immunity
? Complies with JEDEC standards:
? JESD8-12 (0.8 V to 1.3 V)
? JESD8-11 (0.9 V to 1.65 V)
? JESD8-7 (1.2 V to 1.95 V)
? JESD8-5 (1.8 V to 2.7 V)
? JESD8-B (2.7 V to 3.6 V)
? Low static power consumption; ICC = 0.9 ?A (maximum)
? Latch-up performance exceeds 100 mA per JESD 78 Class II
? Inputs accept voltages up to 3.6 V
? Low noise overshoot and undershoot < 10 % of VCC
? IOFF circuitry provides partial power-down mode operation
? ESD protection:
? HBM: ANSI/ESDA/JEDEC JS-001 class 3A exceeds 5000V
? CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000V

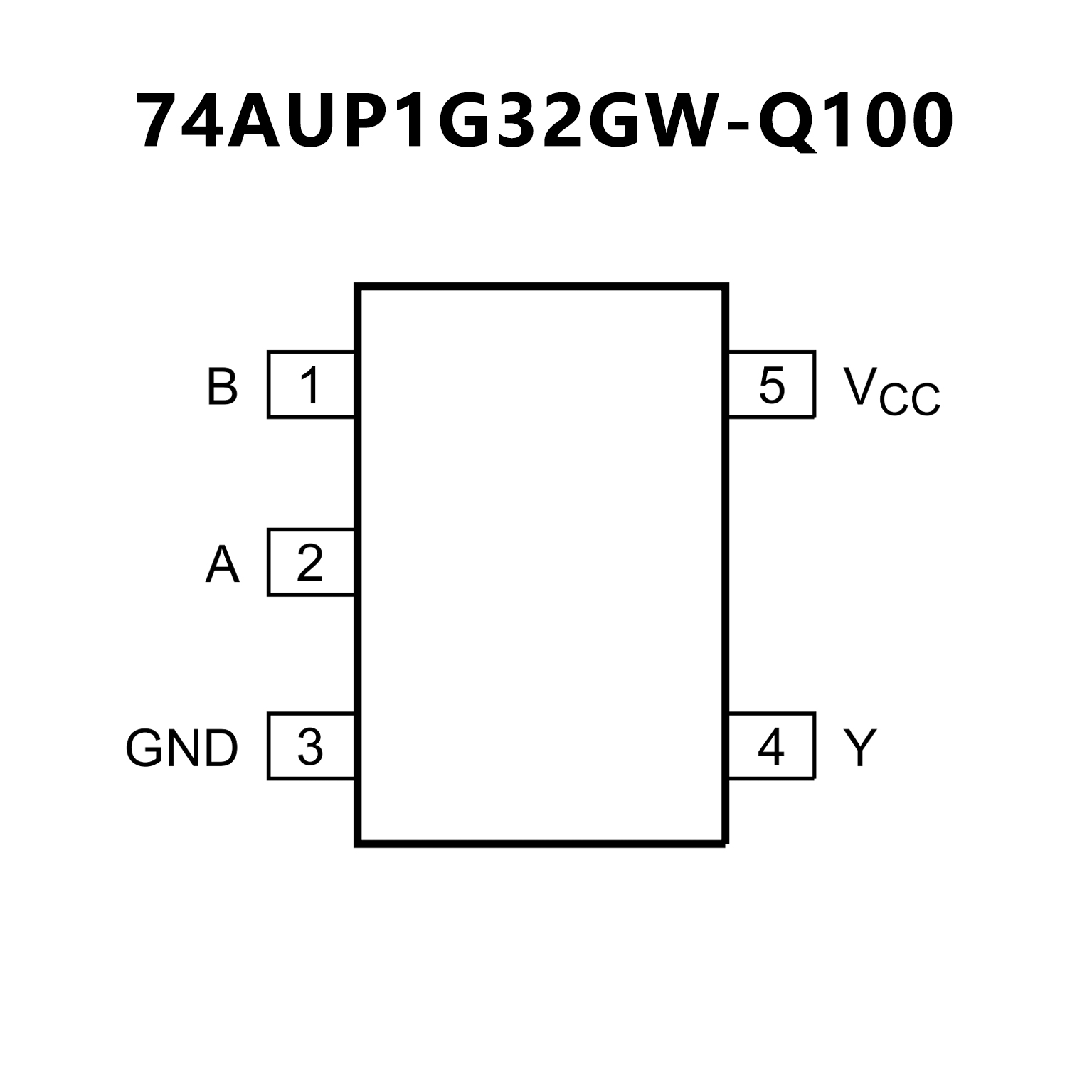

PIN CONFIGUTION
