Single D-Type Positive Edge-Triggered Flip-Flop with Clear and Preset, 74LVC1G74XSMS8G P2P 74LVC1G74DP.
74LVC1G74XSMS8G
74LVC1G74XSMS8G.pdf
74LVC1G74XSMS8G.pdfFEATURES
? Wide Supply Voltage Range: 1.65V to 5.5V
? Inputs Accept Voltages Higher than the Supply
Voltage
? +32mA/-32mA Output Current
? Outputs in High-Impedance State when VCC = 0V
? -40℃ to +125℃ Operating Temperature Range
? Available in Green VSSOP-8, XTDFN-1.4×1-8L
and MSOP-8(S) Packages

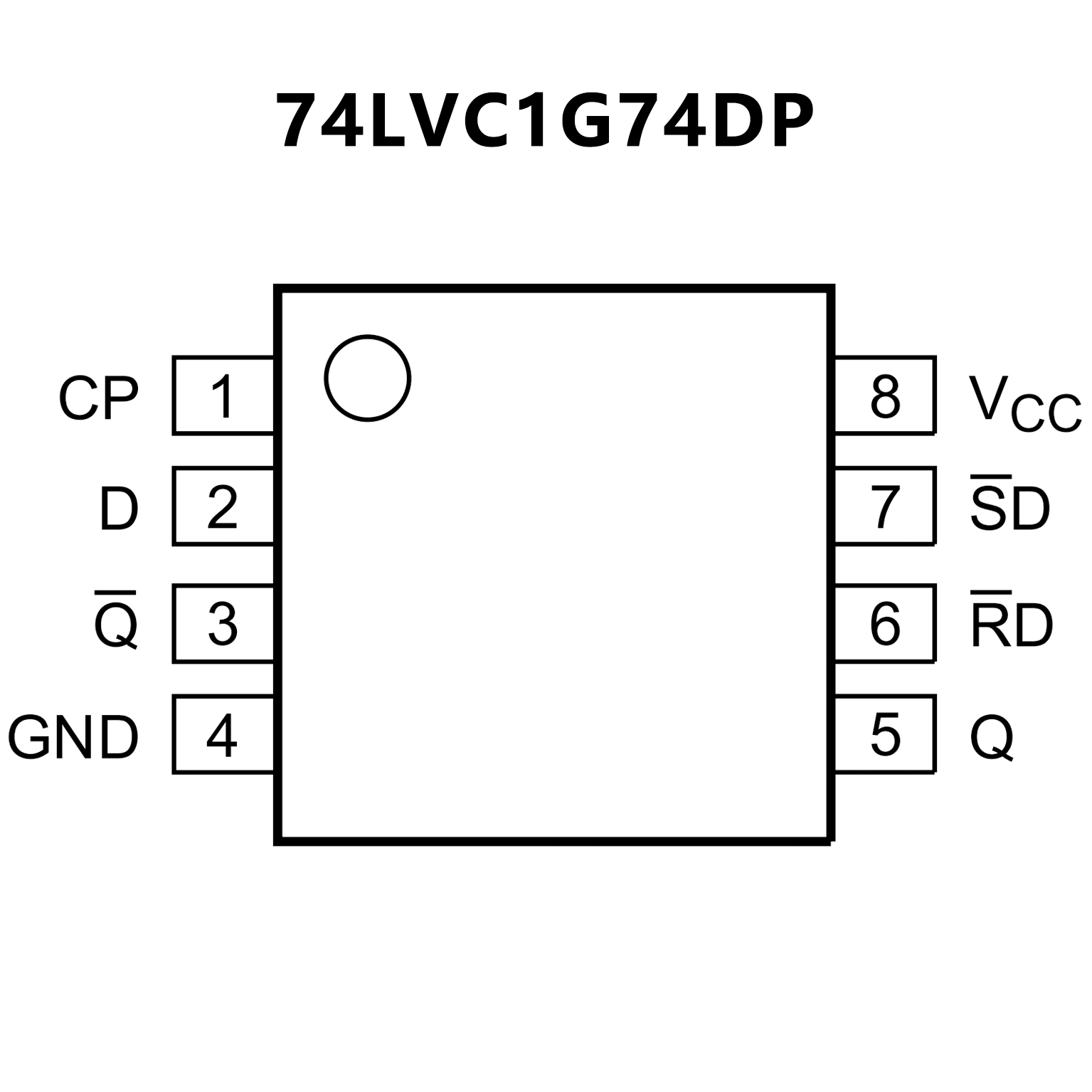

PIN CONFIGUTION
优势替代
FEATURES
? Wide supply voltage range from 1.65 V to 5.5V
? Overvoltage tolerant inputs to 5.5V
? High noise immunity
? ±24 mA output drive (VCC = 3.0V)
? CMOS low power consumption
? Direct interface with TTL levels
? IOFF circuitry provides partial Power-down mode operation
? Latch-up performance exceeds 250mA
? Complies with JEDEC standard:
? JESD8-7 (1.65 V to 1.95 V)
? JESD8-5 (2.3 V to 2.7 V)
? JESD8-B/JESD36 (2.7 V to 3.6 V)
? ESD protection:
? HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000V
? CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000V
? Multiple package options
? Specified from -40°C to +85°C and -40°C to +125°C
PIN CONFIGUTION
