? 600mA Low Dropout Regulator with EN

? Very low IQ: 35μA

? Wide input voltage range: 2V to 6V

? Wide adjustable output: 0.8V to 5.0V

? Fixed output options: 0.8V to 3.9V (0.1V step size

  possible)

? High PSRR: 65dB at 1kHz

? Fast start-up time: 200μs

? Stable with low ESR, 1μF ceramic output capacitor

? Excellent Load/Line Transient Response

? Low dropout: 300mV at 600mA

? Current limit and short circuit protection

? Thermal shutdown protection

? Ambient temperature range: -40?C to 85?C

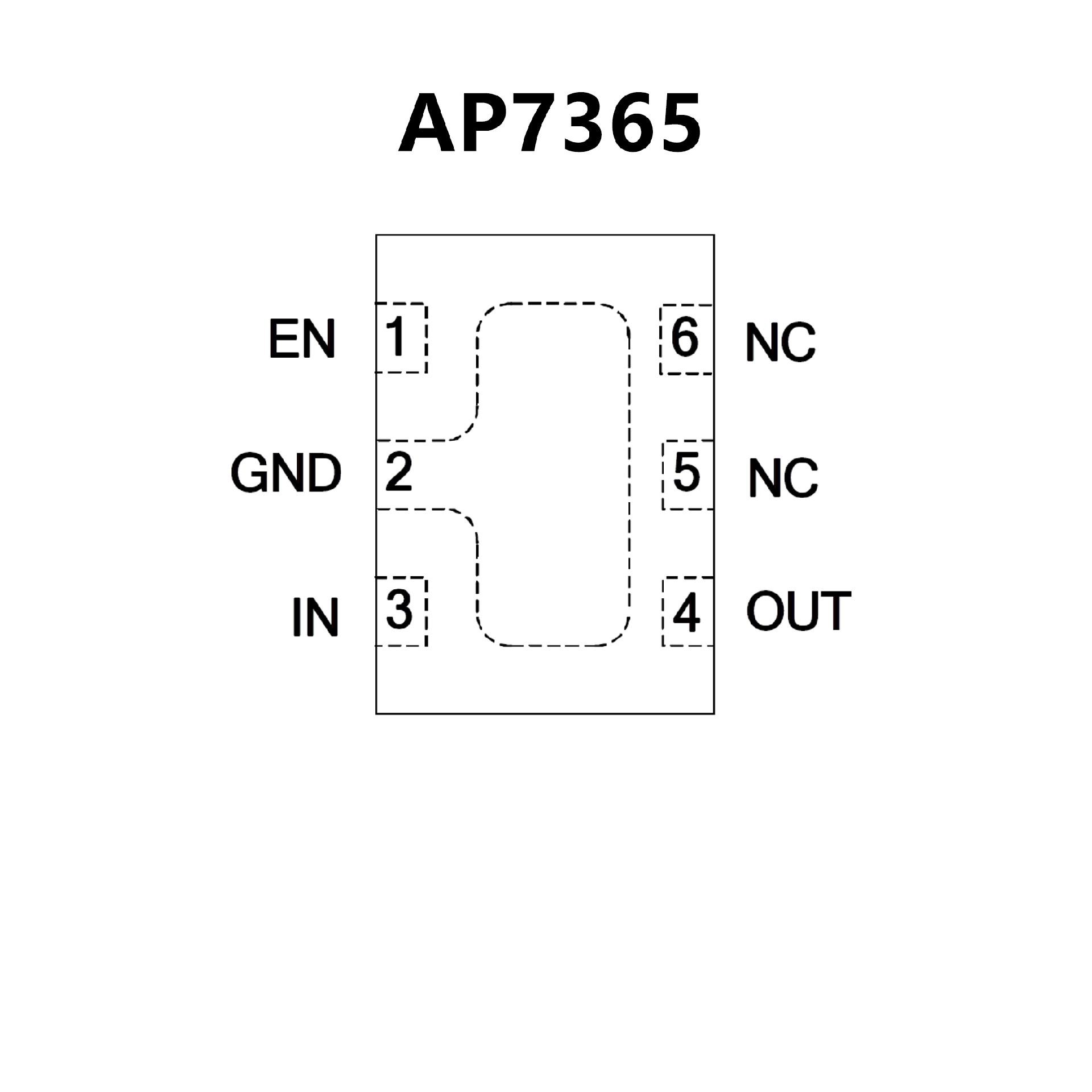

? SOT25, SOT89/R-3L, SOT223/R-3L, DFN2020-6:

  Available in “Green” Molding Compound (No Br, Sb)

? Lead Free Finish/ RoHS Compliant (Note 1)
