4~18V, 2A, 750KHz, VFB0.8V, SOT23-6, ACP2829 Replace JW5033.
ACP2829
ACP2829.pdf
ACP2829.pdfFEATURES
? VIN : 4.2V to 18V
? Output Voltage (VOUT) : 0.8V to 7V
? 2A Continuous Output Current
? 0.8V ± 1% Reference Voltage
? 150μA Low Quiescent Current
? 750KHz Switching Frequency (VIN = 12V, VOUT= 5V)
? Typically 85% Efficiency at 5mA Light Load
? Proprietary Gate Driver Design for Best EMI Reduction
? Under Voltage Lockout (UVLO)
? Cycle-by-Cycle Valley Current Limit
? Thermal Shutdown

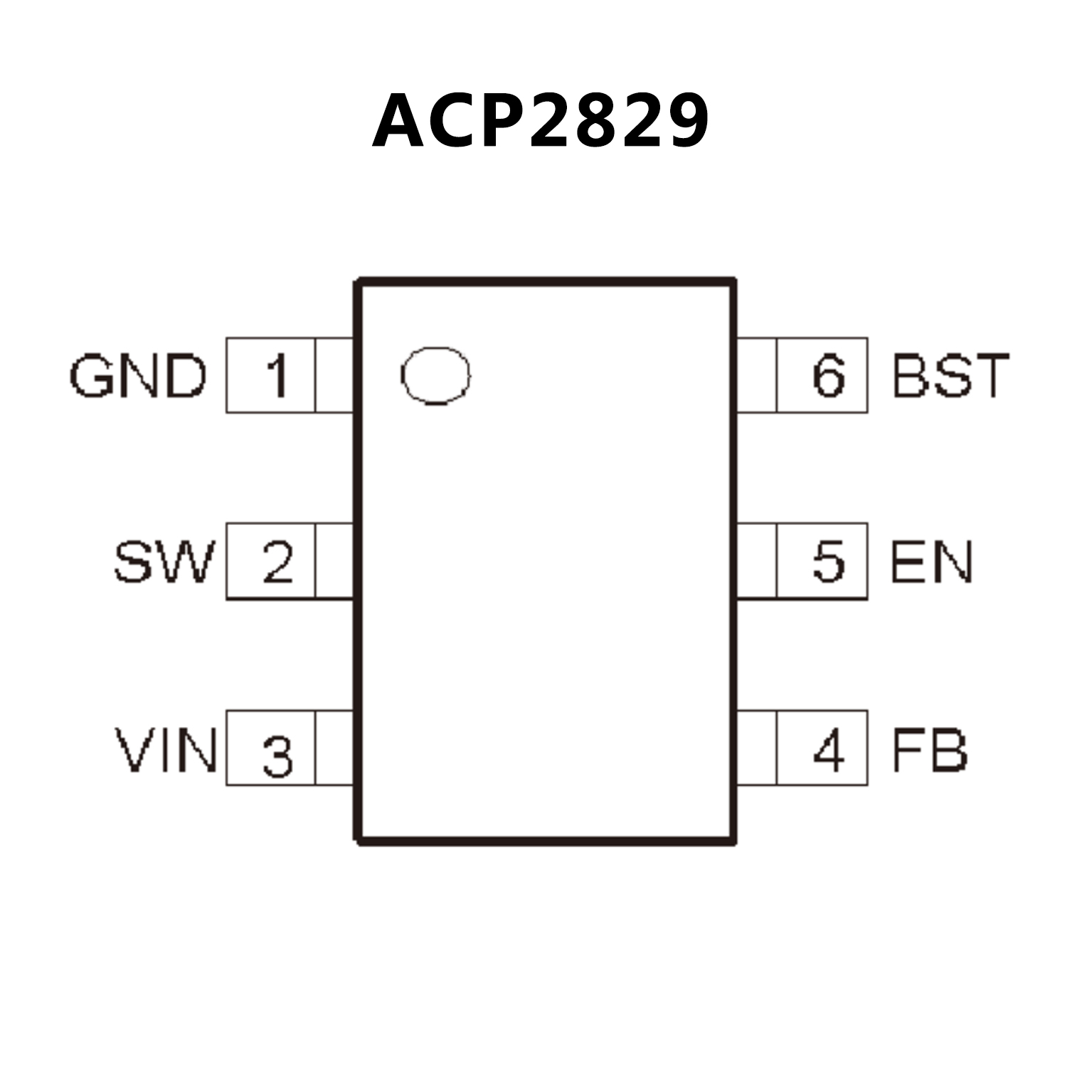

PIN CONFIGUTION
优势替代
FEATURES
? 3.7V to 18V operating input range 2A output current
? Up to 95% efficiency
? High efficiency at light load
? Fixed 800kHz Switching frequency
? Input under voltage lockout
? Start-up current run-away protection
? Over current protection and Hiccup
? Thermal protection
? Available in TSOT23-6 package

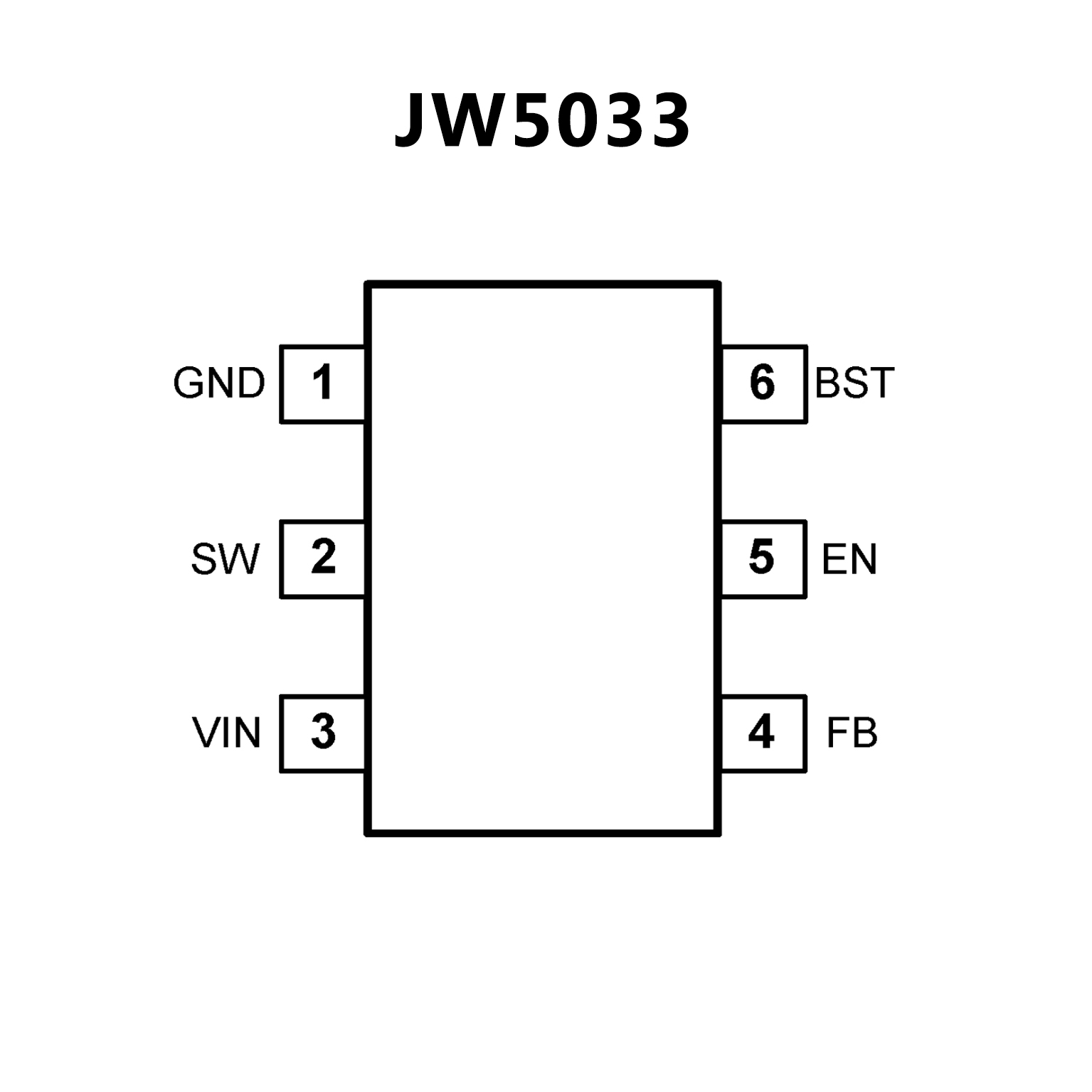

PIN CONFIGUTION
