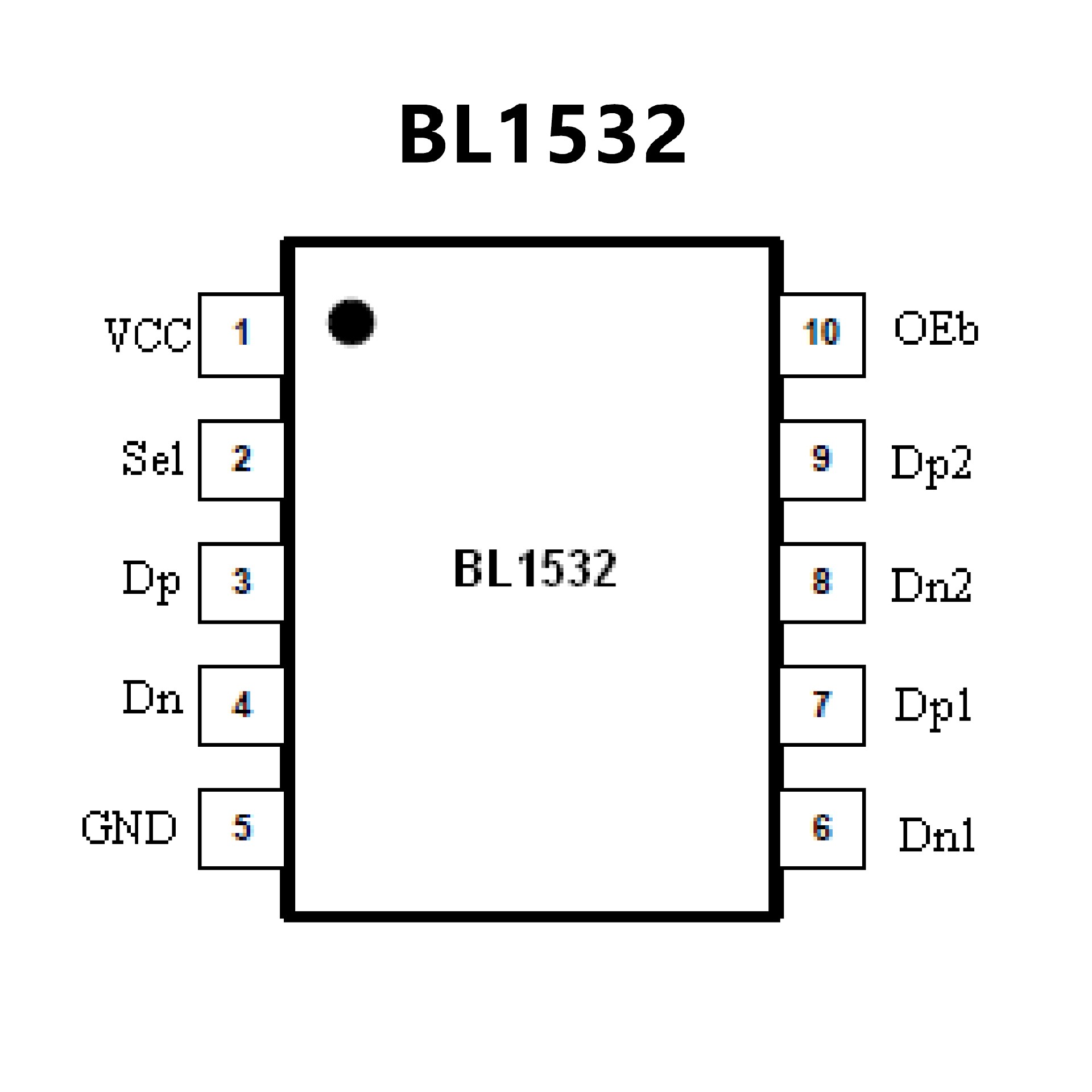

BL1532.pdf? Wide Power Supply Range: 2.3V to 5V
? Low On Capacitance 3.7pf Typical
? Low On Resistance 4.5Ω (typ) at 3V VDD when VSW=0.4V
? High Bandwidth (-3db):
>720MHz without CL and >550MHz with CL=5pF
? Low Power Consumption: 1?A Maximum
? ESD: pass 8kV HBM test
? Over voltage tolerance (OVT) on all USB
ports up to 5.25V without external components
? TTL/CMOS Compatible
? Break-Before-Make Switching
? Operation Temperature Range: -40℃ to 85℃
? UTQFN1.8×1.4-10L and MSOP10L Package

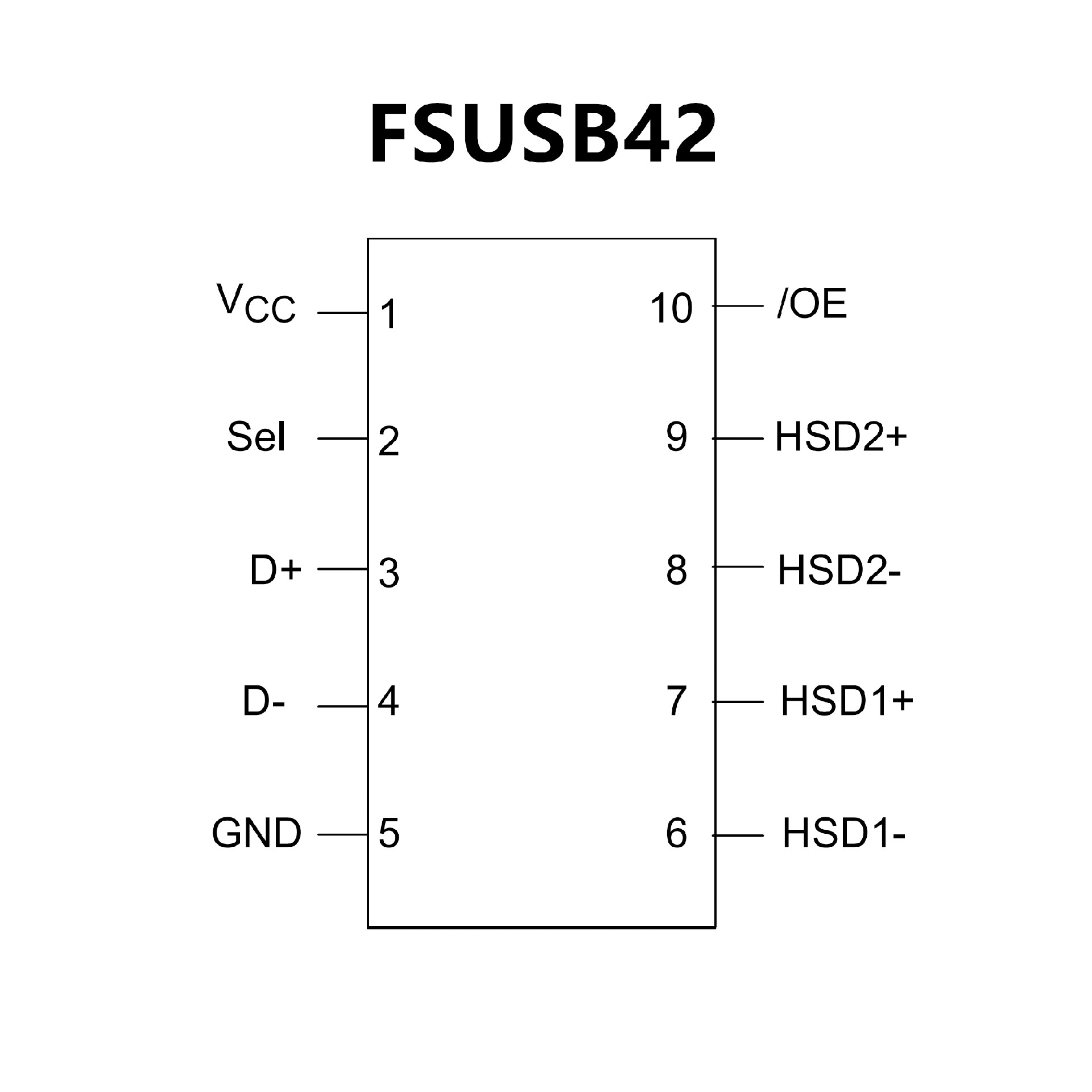

? 低导通电容: 3.7 pF典型值
? 低导通电阻: 3.9 ? 典型值
? 低功耗: 1 μA最大值
在扩展的电压范围内
（VIN=1.8 V， VCC=4.4 V),最大ICCT电流为15 μA
? 宽广的 -3 db带宽: > 720 MHz
? Packaged in:
10-Lead UMLP (1.4 x 1.8 mm)
10-Lead MSOP
? 8 kV的ESD, >16 kV 电源对地ESD
? 当VCC=0V时所有管脚有断电保护
D+/D-管脚耐压达5.25 V
? 在无需额外元件的情况下所有的USB端口可耐过压
高达5.25 V
