? Serial Peripheral Interface (SPI) data transferprotocol

? Memory array:

  2M bits (256 Kbytes) of EEPROM

  Page size: 256 bytes

  Additional Write lockable page

? Single supply voltage and high speed:

  5 MHz （2.8V - 5.5V）

? Random and sequential Read modes

? Write:
– Byte Write within 6 ms

   Page Write within 6 ms

   Partial Page Writes Allowed

? Write Protect: quarter, half or whole memoryarray

? Operating temperature range: from -40℃ to85℃

? High-reliability

  Endurance: 1 Million Write Cycles

  Data Retention: 100 Years

? Enhanced ESD/Latch-up protection

  HBM 8000V

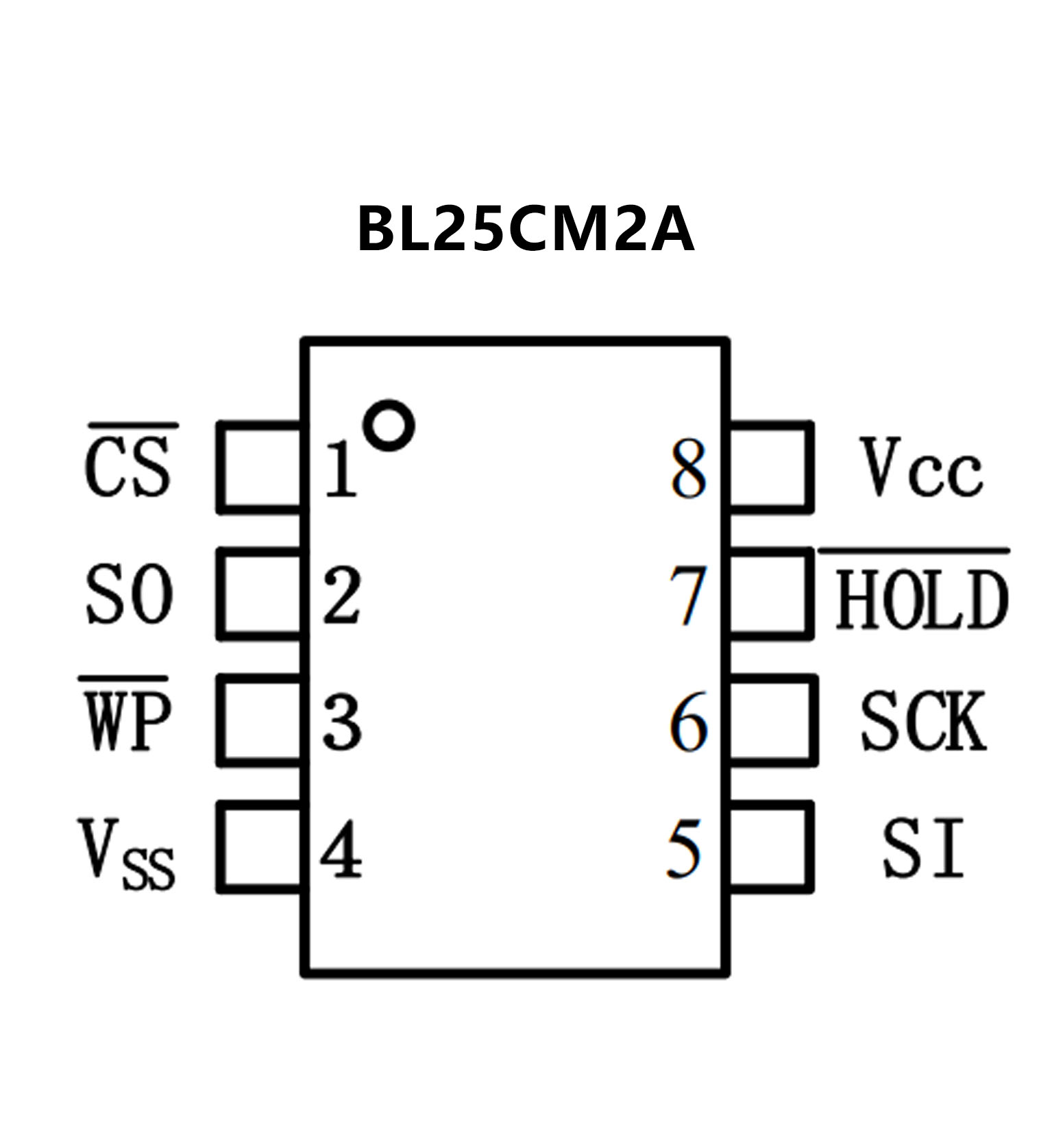

? 8-lead SOP/TSSOP and WLCSP8 packages
