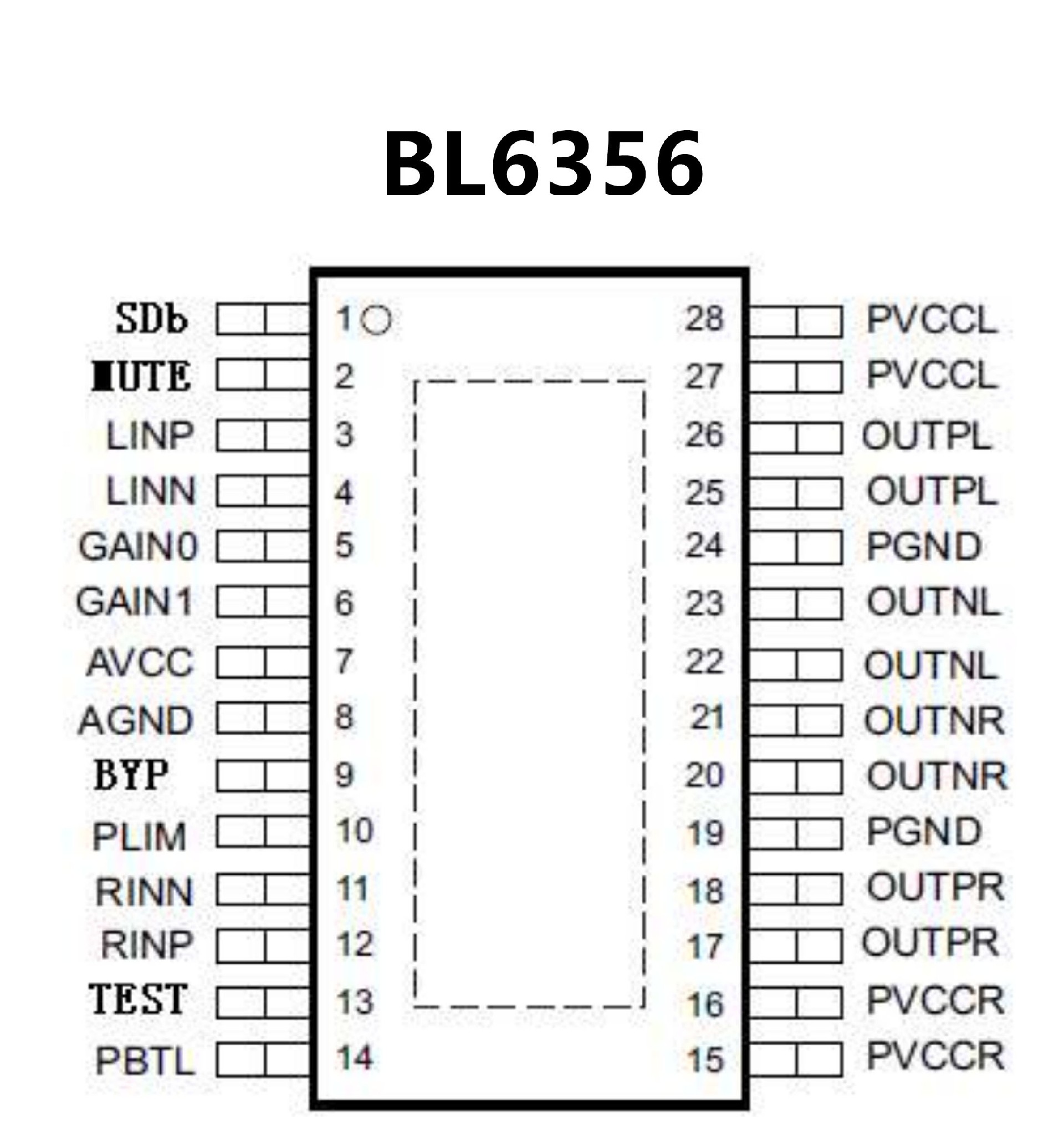

BL6356.pdf? 输出功率 2*10W（12V, RL=8Ω, THD+N=10%）
? 4阶可选增益控制
? 宽电压工作范围：4V-12V
? 高效率（88%@RL=8Ω,Po=4W）
? 过流、过温保护
? ETSSOP28封装

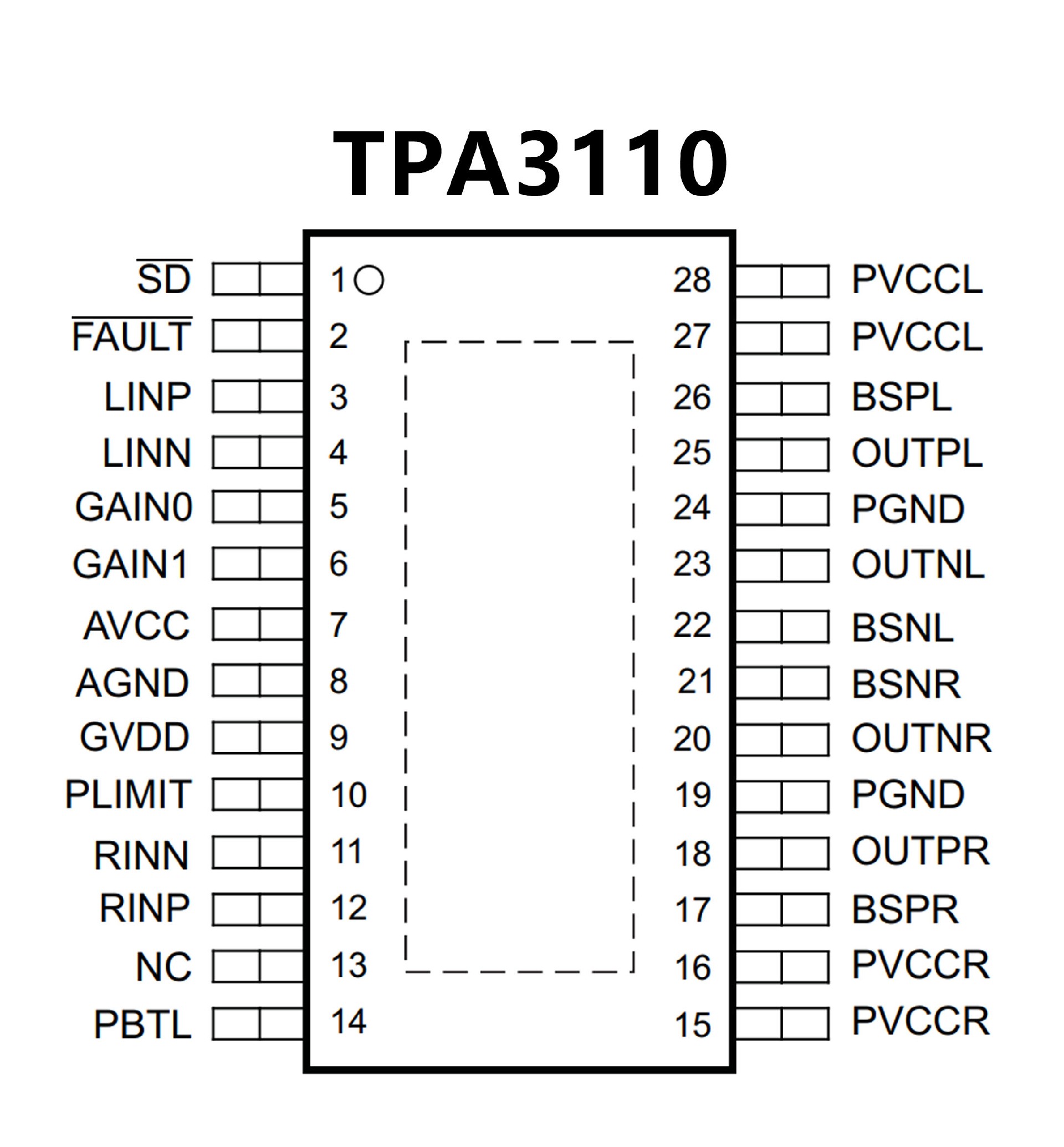

? 15-W/ch into an 8-? Loads at 10% THD+N Froma 16-V Supply
? 10-W/ch into 8-? Loads at 10% THD+N From a13-V Supply
? 30-W into a 4-? Mono Load at 10% THD+N Froma 16-V Supply
? 90% Efficient Class-D Operation Eliminates Needfor Heat Sinks
? Wide Supply Voltage Range Allows OperationFrom 8 V to 26 V
? Filter-Free Operation
? SpeakerGuard? Speaker Protection IncludesAdjustable
Power Limiter Plus DC Protection
? Flow Through Pin Out Facilitates Easy BoardLayout
? Robust Pin-to-Pin Short Circuit Protection andThermal
Protection With Auto Recovery Option
? Excellent THD+N / Pop-Free Performance
? Four Selectable, Fixed Gain Settings
? Differential Inputs
