Dual-Channel Digital Isolators, BL7120 Replace ADuM1201.
BL7120
BL7120.pdf
BL7120.pdfFEATURES
? 100Mbps 信号传输速率
? 强大的隔离性能
±100kV/?s CMTI（典型值）
3.75kVRMS 隔离耐压
>50 年的隔离栅寿命
高达 8kV 的抗浪涌能力
? 宽电源电压范围：2.5V 至 5.5V
? 2.5V 至 5.5V 电平转换
? 宽温度范围：-40℃ to 125℃
? 默认输出高电平（H）和低电平（L）选项
? 低传播延迟：11ns（典型值，5V 供电）
? 低脉宽失真：3ns

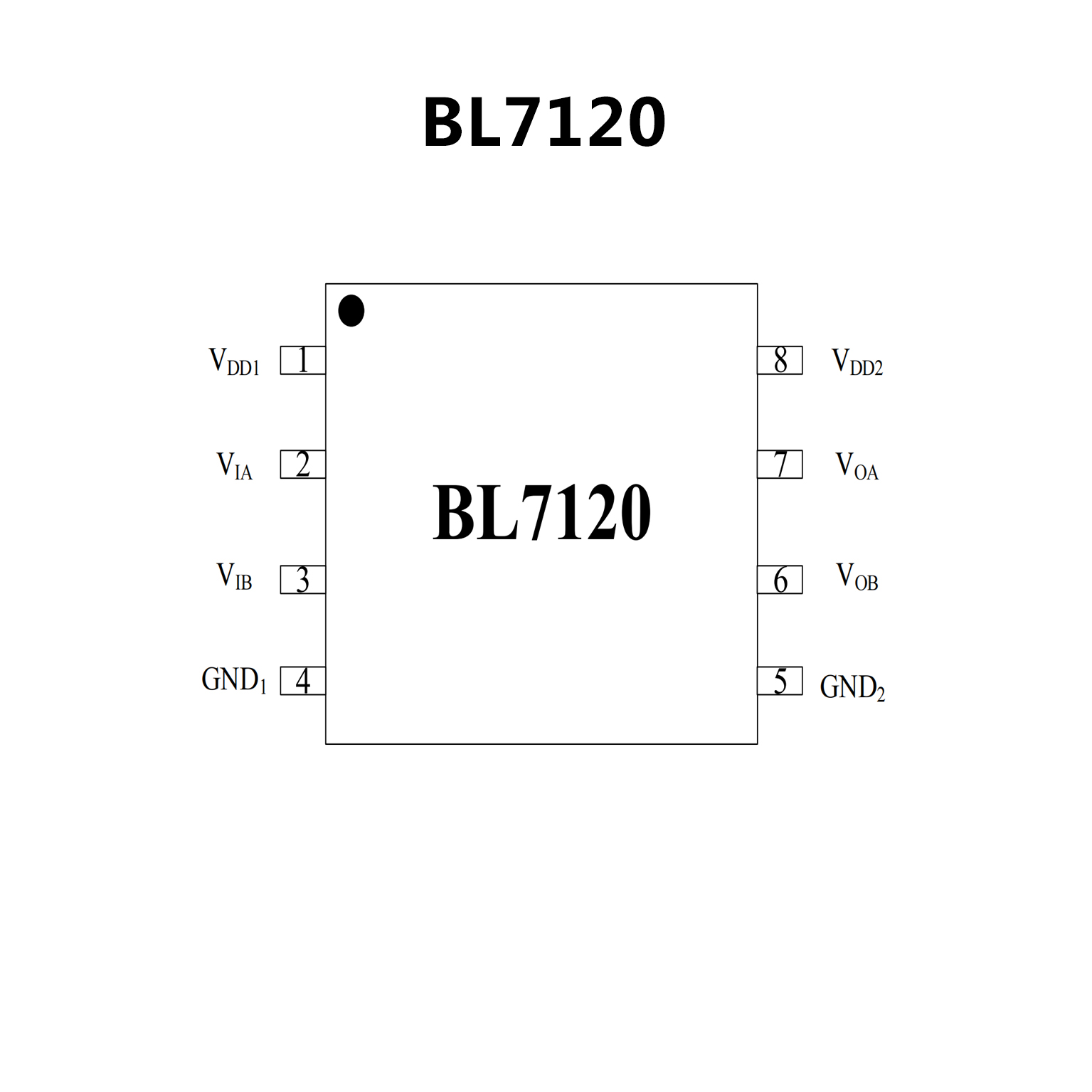

PIN CONFIGUTION
优势替代
FEATURES
? Narrow body, RoHS-compliant, SOIC 8-lead package
? Low power operation
5 V operation
1.1 mA per channel maximum at 0 Mbps to 2 Mbps
3.7 mA per channel maximum at 10 Mbps
8.2 mA per channel maximum at 25 Mbps
3 V operation
0.8 mA per channel maximum at 0 Mbps to 2 Mbps
2.2 mA per channel maximum at 10 Mbps
4.8 mA per channel maximum at 25 Mbps
? Bidirectional communication
? 3 V/5 V level translation
? High temperature operation: 125°C
? High data rate: dc to 25 Mbps (NRZ)
? Precise timing characteristics
3 ns maximum pulse width distortion
3 ns maximum channel-to-channel matching
? High common-mode transient immunity: >25 kV/μs
? Safety and regulatory approvals
UL recognition
2500 V rms for 1 minute per UL 1577
CSA Component Acceptance Notice 5A
VDE Certificate of Conformity
DIN V VDE V 0884-10 (VDE V 0884-10): 2006-12
VIORM = 560 V peak
? Qualified for automotive applications

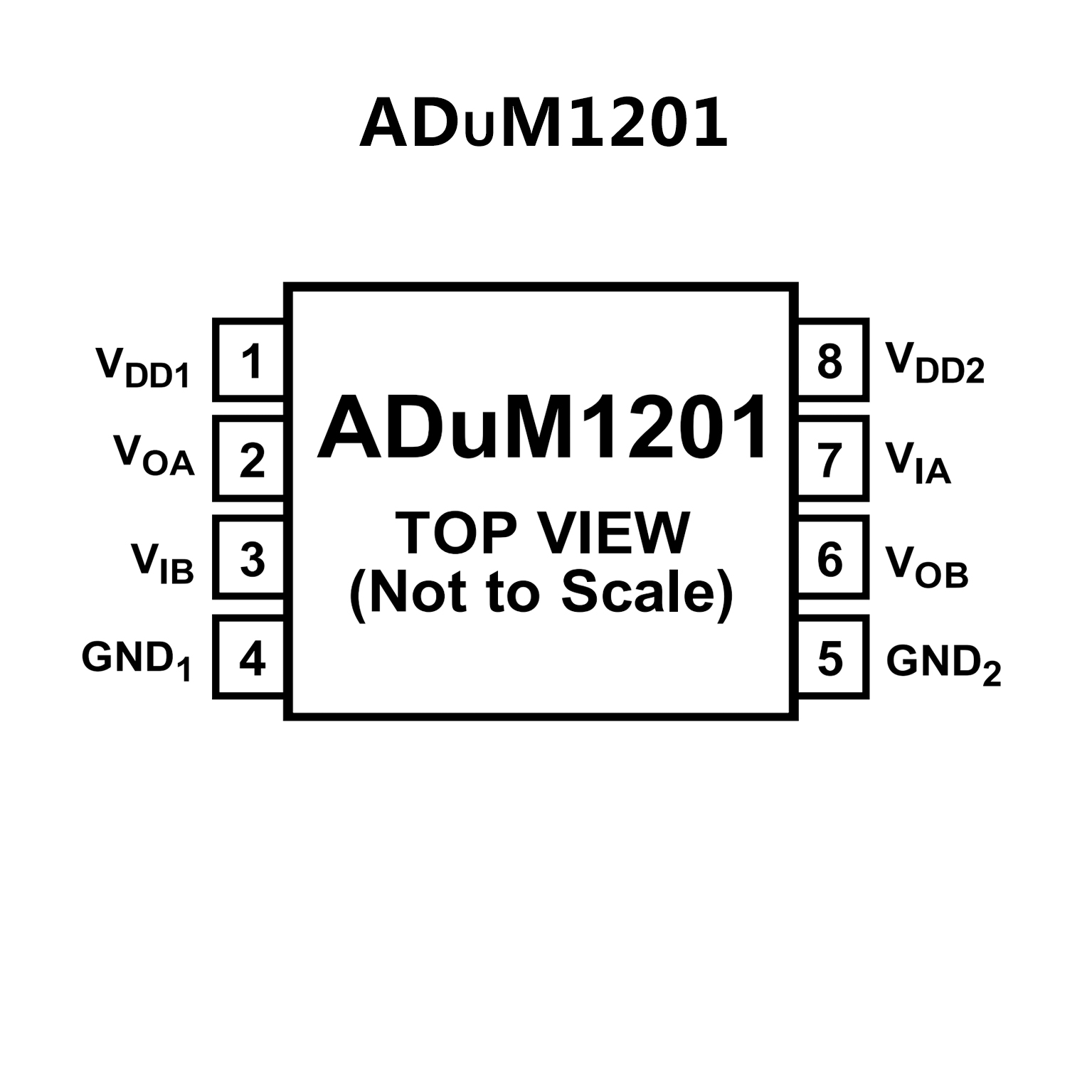

PIN CONFIGUTION
