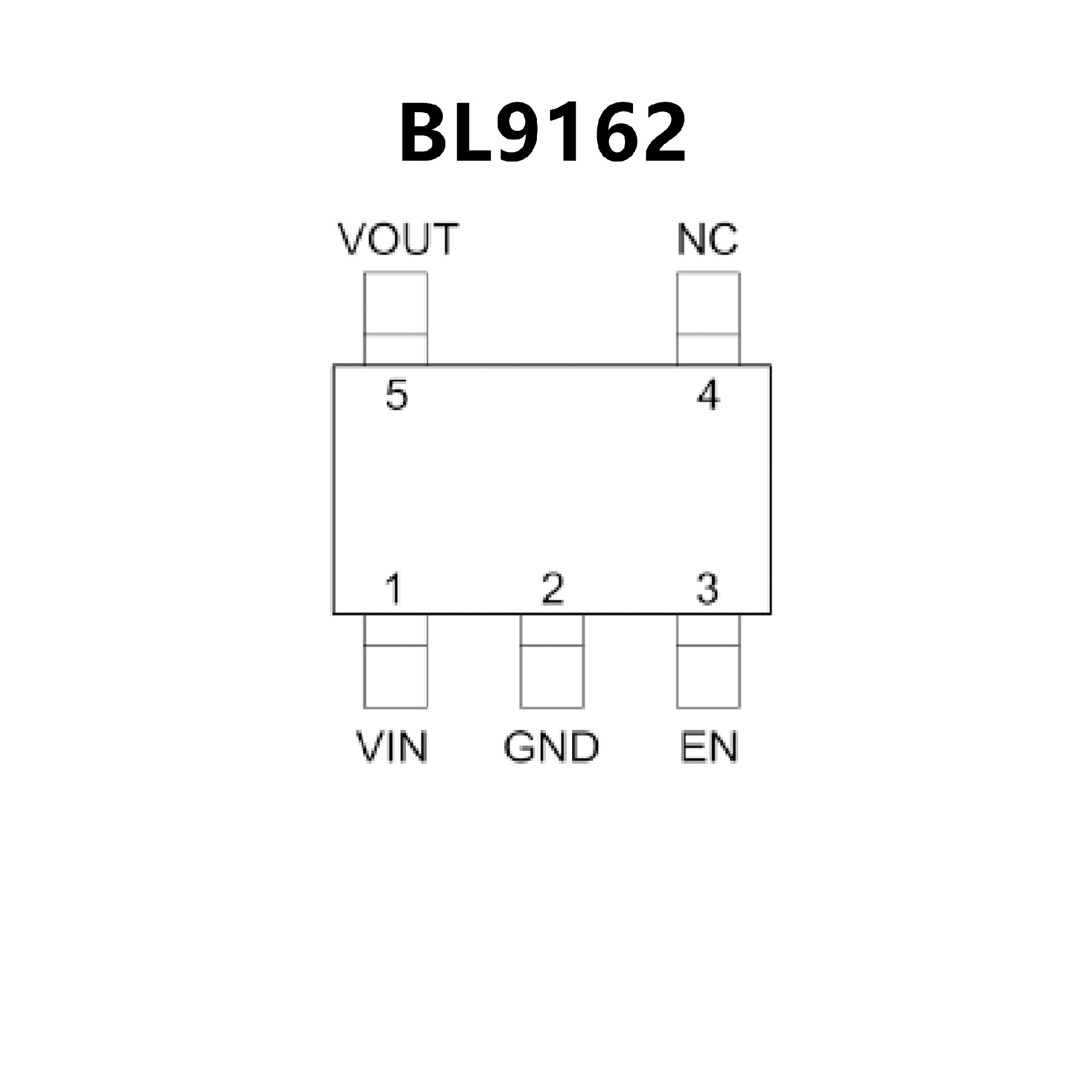

BL9162.pdf? Ultra-low Noise
? Ultra-Fast Transient Response
? High PSRR: -87dB @ 217Hz
-83dB @ 1KHz
-54dB @ 1MHz
? 0.1?A Standby Current When Shutdown
? Low Dropout: 140mV@300mA (VOUT=2.8V)
? Wide Operating Voltage Ranges: 1.8V to 5.5V
? Current Limiting and Short Circuit Current Protection
? Thermal Shutdown Protection
? Only 1?F Output Capacitor Required forStability
? Fast output discharge
? Available in SOT23-5, SC70-5 and DFN1X1-4L Packages

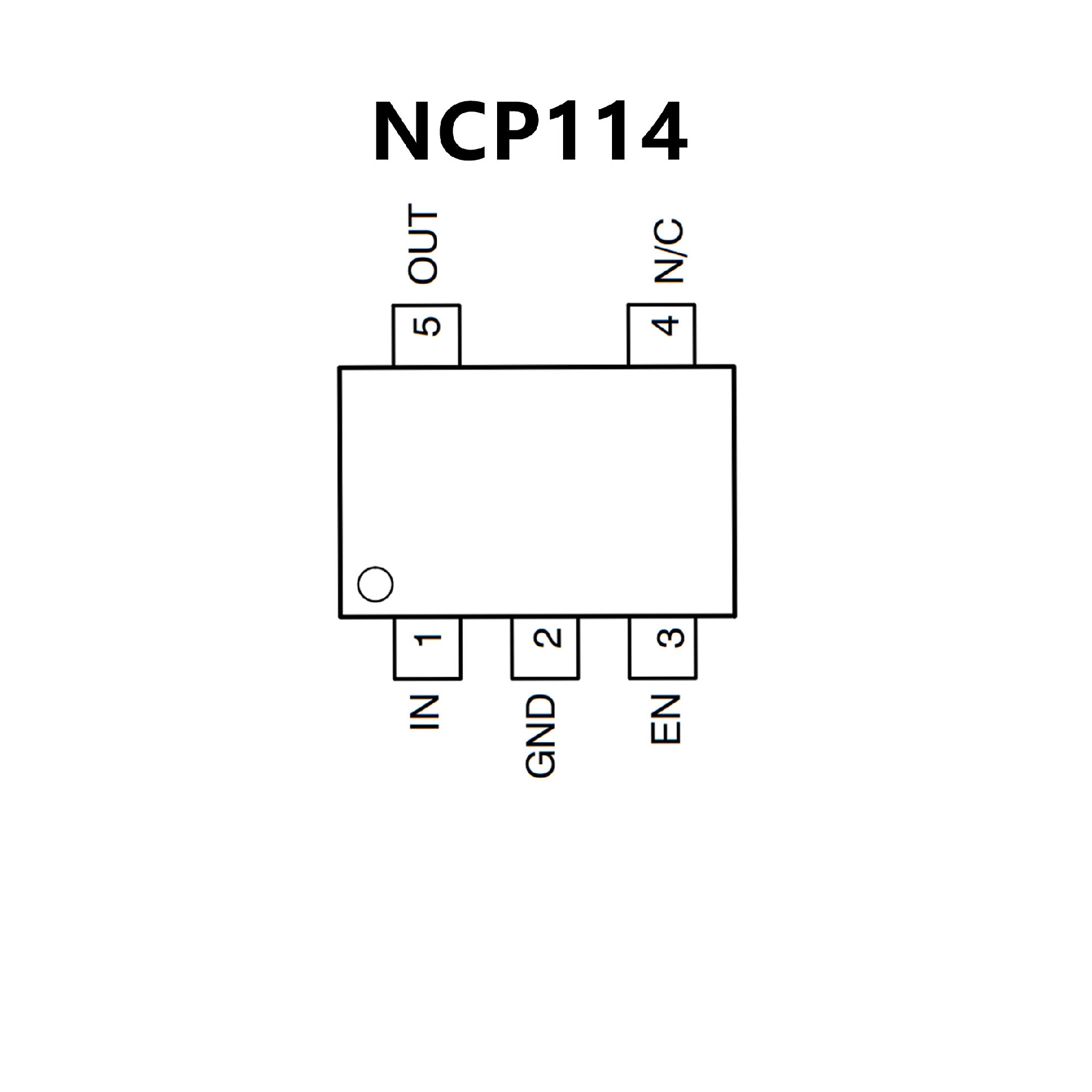

? Operating Input Voltage Range: 1.7 V to 5.5 V
? Available in Fixed Voltage Options: 0.75 V to
3.6 V
Contact Factory for Other Voltage Options
? Very Low Quiescent Current of Typ. 50?A
? Standby Current Consumption: Typ. 0.1?A
? Low Dropout: 135 mV Typical at 300 mA
? ±1% Accuracy at Room Temperature
? High Power Supply Ripple Rejection: 75 dB at 1 kHz
? Thermal Shutdown and Current Limit Protections
? Stable with a 1?F Ceramic Output Capacitor
? Available in UDFN and TSOP Packages
? These are Pb?Free Device
