50 V, 100 mA NPN/PNP resistor-equipped double transistor, DCX114YU-7-F Replace PUMD9.
DCX114YU-7-F
DCX114YU-7-F.pdf
DCX114YU-7-F.pdfFEATURES
? Package: SOT363
? Package Material: Molded Plastic, “Green” Molding
Compound; UL Flammability Classification Rating 94V-0
? Moisture Sensitivity: Level 1 per J-STD-020
? Terminals: Finish – Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
? Weight: 0.006 grams (Approximate)

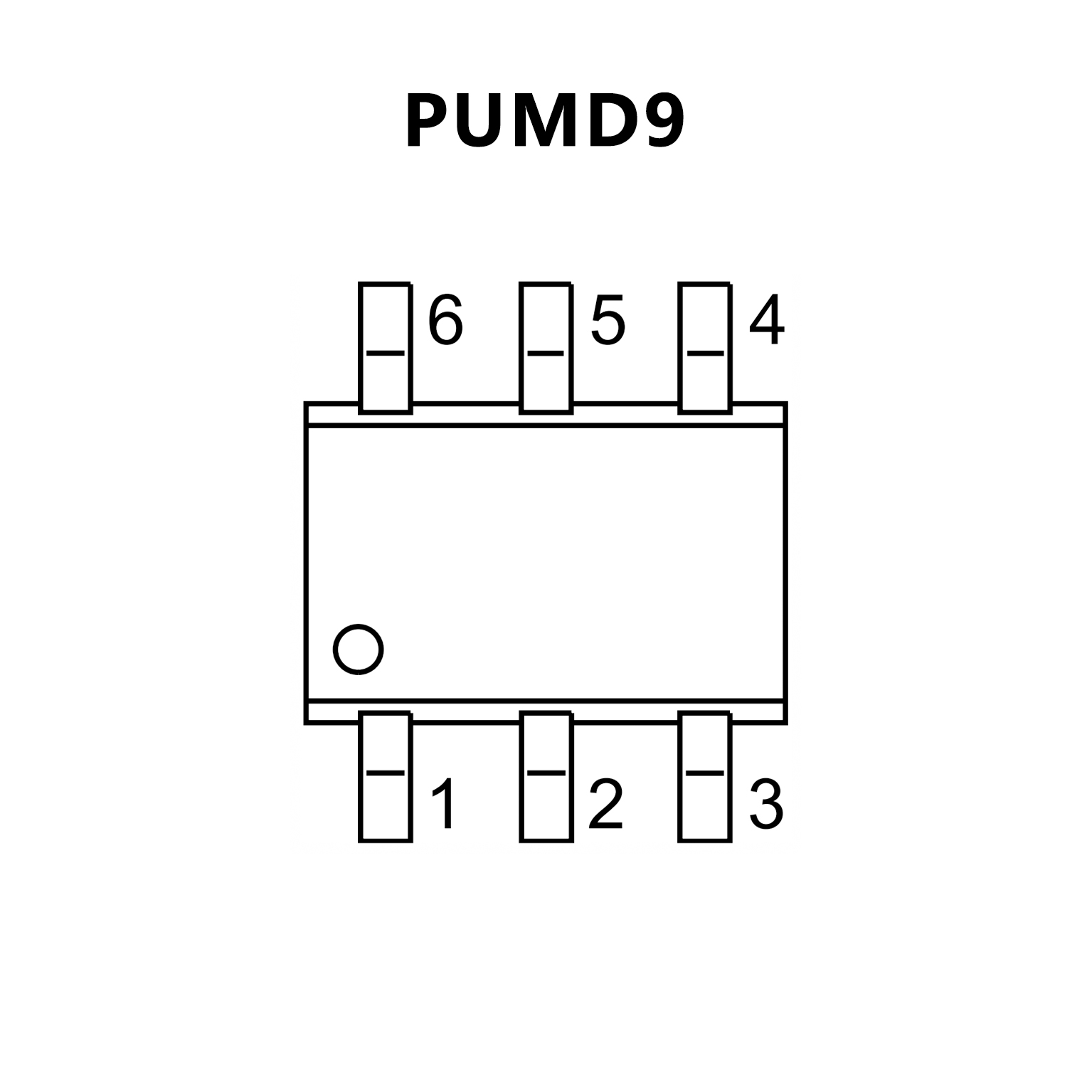

PIN CONFIGUTION
优势替代
FEATURES
? 100 mA output current capability
? Built-in bias resistors
? Simplifies circuit design
? Reduces component count
? Reduces pick and place costs
PIN CONFIGUTION
