2.5W/CH Stereo Filterless Class-D Audio Amplifier with 64-Step DC Volume Control, EUA2073 P2P PAM8003.
EUA2073
EUA2073.pdf
EUA2073.pdfFEATURES
? Wide Supply Voltage: 2.7V to 5.5V
? Unique Modulation Scheme Reduces EMI Emission
? 2.5W/ch into an 4? Load From 5V Supply
? 64-Step DC Volume Control
? Thermal and Short-Circuit Protection
? Integrated Click and Pop Suppression
? Available in SOP-16 Packages
? RoHS Compliant and 100% Lead(Pb)-Free
Halogen-Free

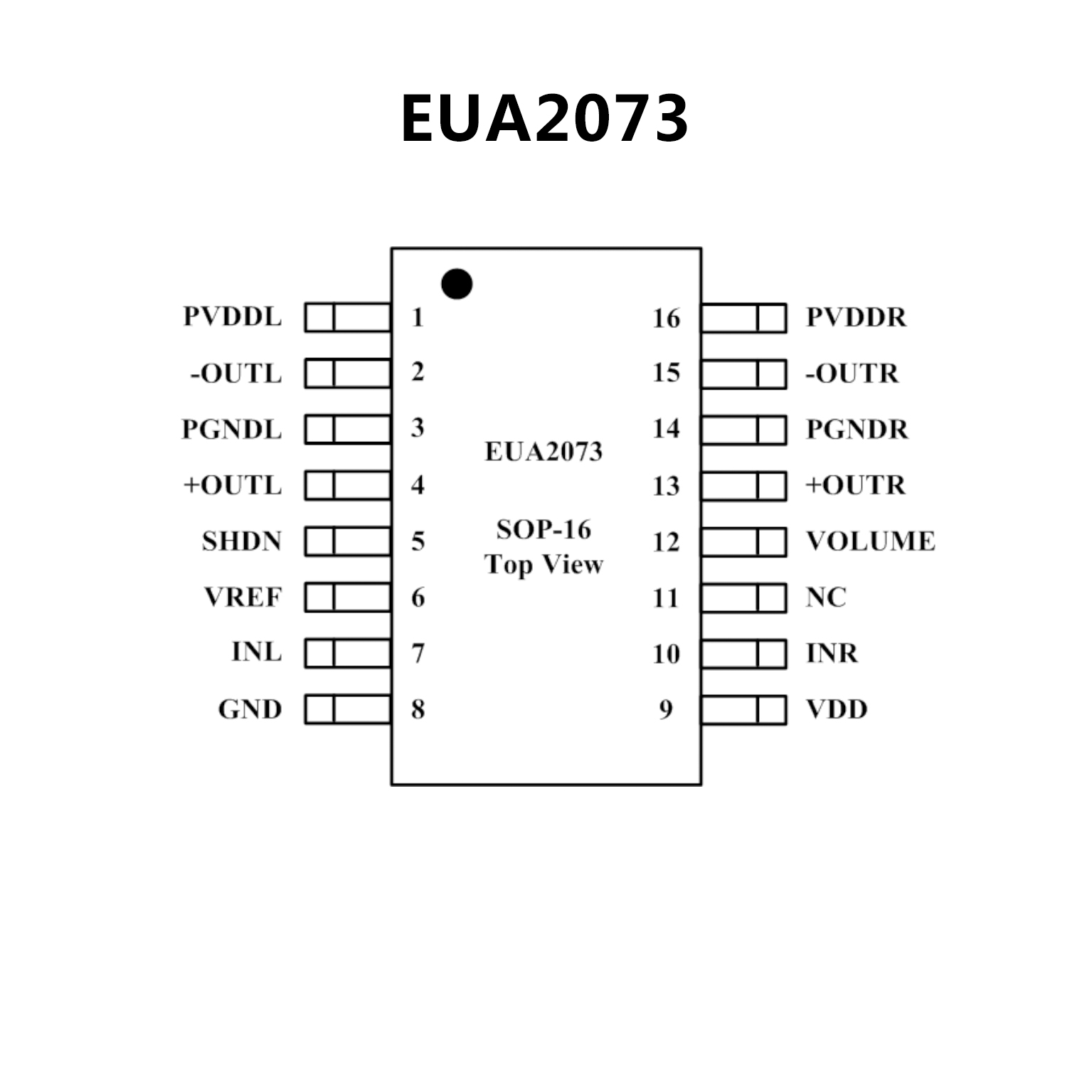

PIN CONFIGUTION
优势替代
FEATURES
? 2.5W Output at 10% THD with a 5Ω Load and 5V Power Supply
? Filterless, Low Quiescent Current and Low EMI
? Low THD+N
? 64-Step DC Volume Control
? Superior Low Noise
? Short Circuit Protection
? Thermal Shutdown
? Few External Components to Save the Space and Cost
? RoHS Pass and Green Package
? Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
? Halogen and Antimony Free. “Green” Device (Note 3)
PIN CONFIGUTION
