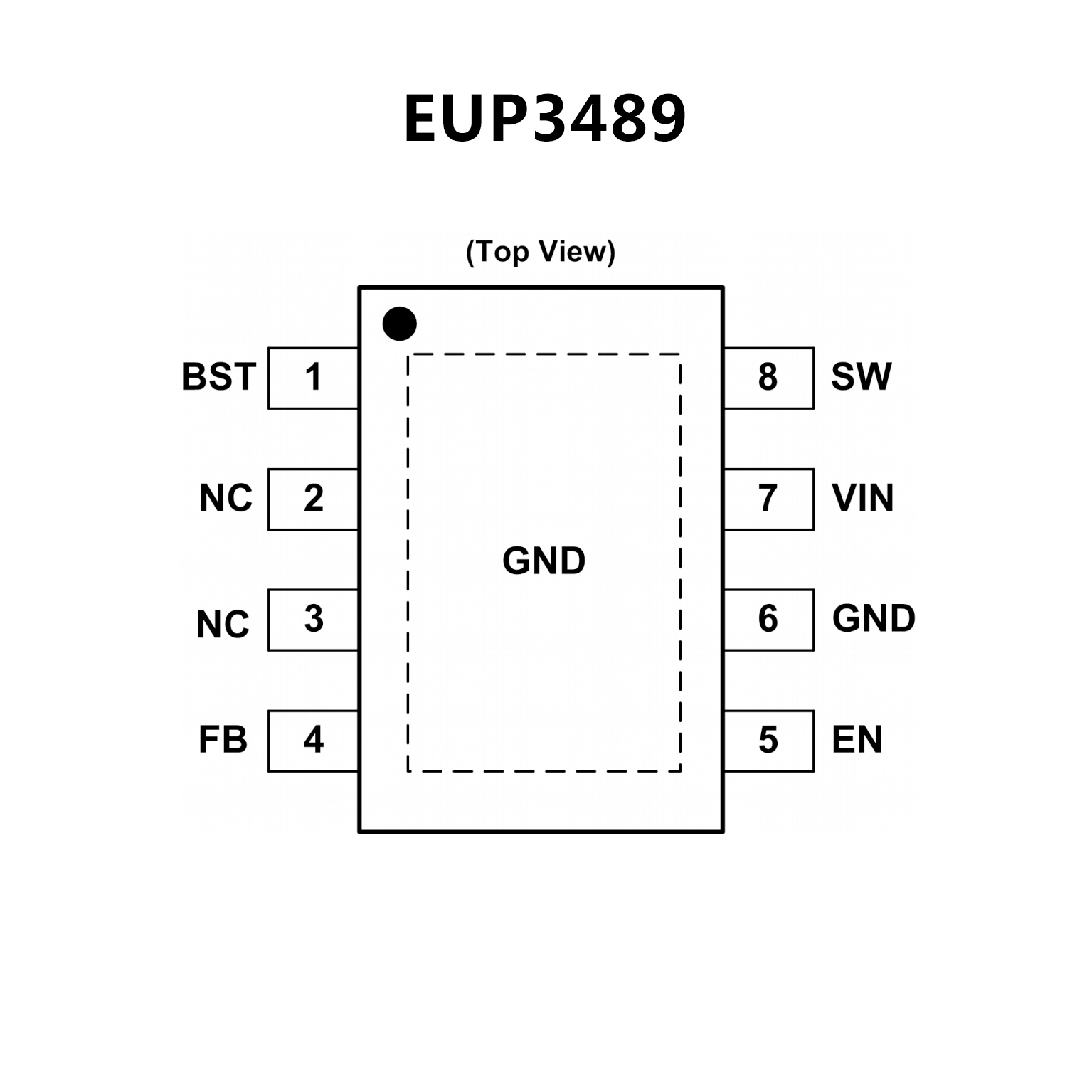

EUP3489.pdf? 4.75V to 30V Wide Input Operating Range
? Output Adjustable from 1.222V to 26V
? Up to 5A Output Current
? 3?A Low Shutdown Current
? 0.1? Internal DMOS Output Switch
? Up to 90% Efficiency
? Fixed 500kHz Switching Frequency
? Internal Compensation
? Internal Soft Start
? Cycle-by-Cycle Current Limit Protection
? Thermal Shutdown Protection
? Input Supply Undervoltage Lockout
? Available SOP-8 (EP) Package
? RoHS Compliant and 100% Lead(Pb)-Free
Halogen-Free
? 5A Output Current
? Internal Soft-Start
? 110mΩ Internal Power MOSFET Switch
? Internal Compensation Minimizes External Parts
Count
? High Efficiency up to 90%
? 25μA Shutdown Mode
? Fixed 500kHz Frequency
? Thermal Shutdown
? Cycle-by-Cycle Over Current Protection
? Wide 5.5V to 36V Operating Input Range
? Adjustable Output Voltage from 1.222V to 26V
? Available In an SOP8 (Exposed Pad) Package
? RoHS Compliant and Halogen Free
