Gate resistor installed Dual N-channel MOS FET, GS95A8CS-R Replace FC4B22690L.
GS95A8CS-R
GS95A8CS-R.pdf
GS95A8CS-R.pdfFEATURES
? Input Voltage up to 20V
? MOSFET Turn on Resistor RSS(ON)
=33mohm(Max)@Vgs=4.5V
? Drain to Drain MOSFET Module
? With ESD Protection
? Continuous Current=5.2A
? Green Product (RoHS, Lead-Free, Halogen-Free Compliant)

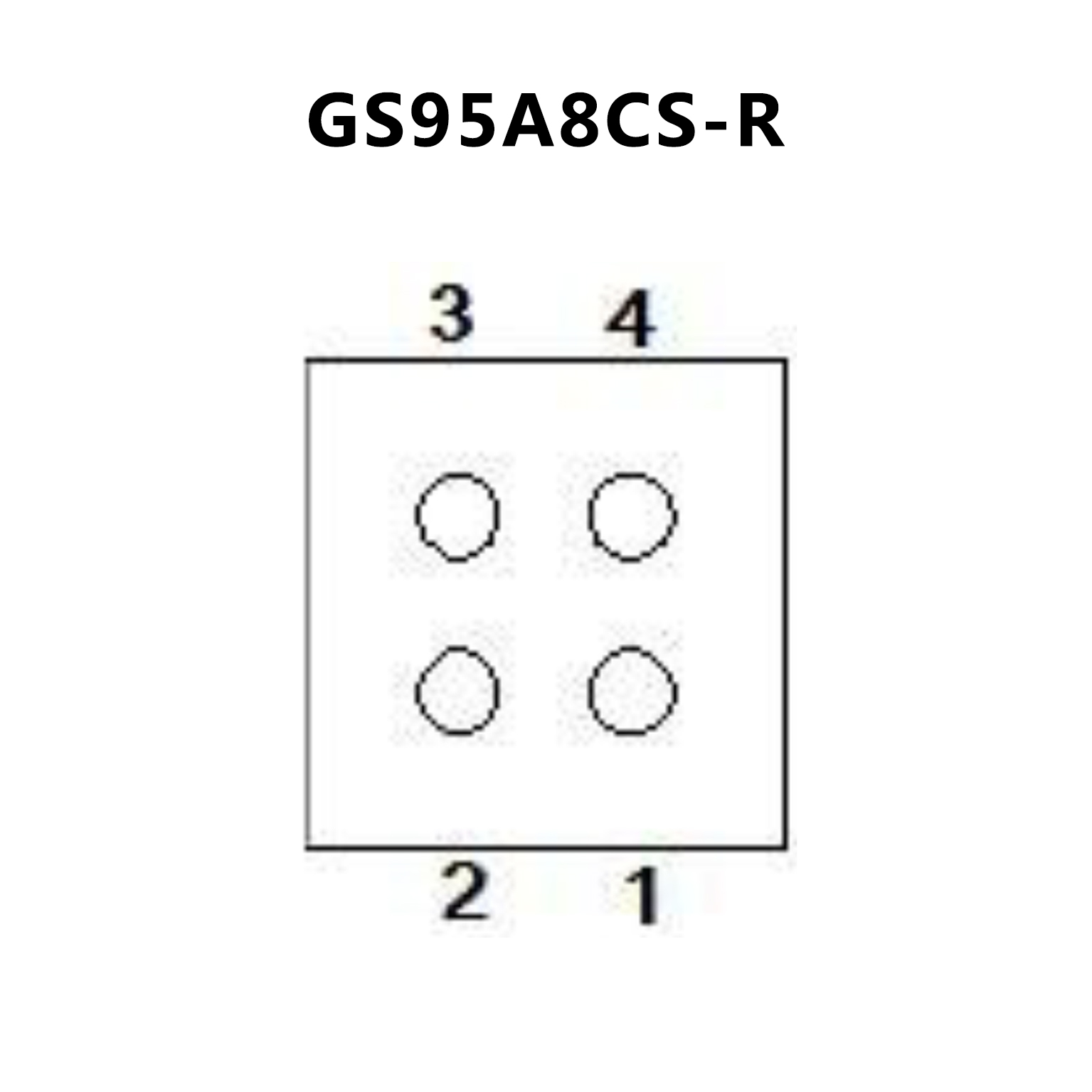

PIN CONFIGUTION
优势替代
FEATURES
? Source-source On-state Resistance : RSS(on) typ. = 30 mW ( VGS = 4.0 V )
? CSP ( Chip Size Package )
? Halogen-free / RoHS compliant ( EU RoHS / UL-94 V-0 / MSL : Level 1 )

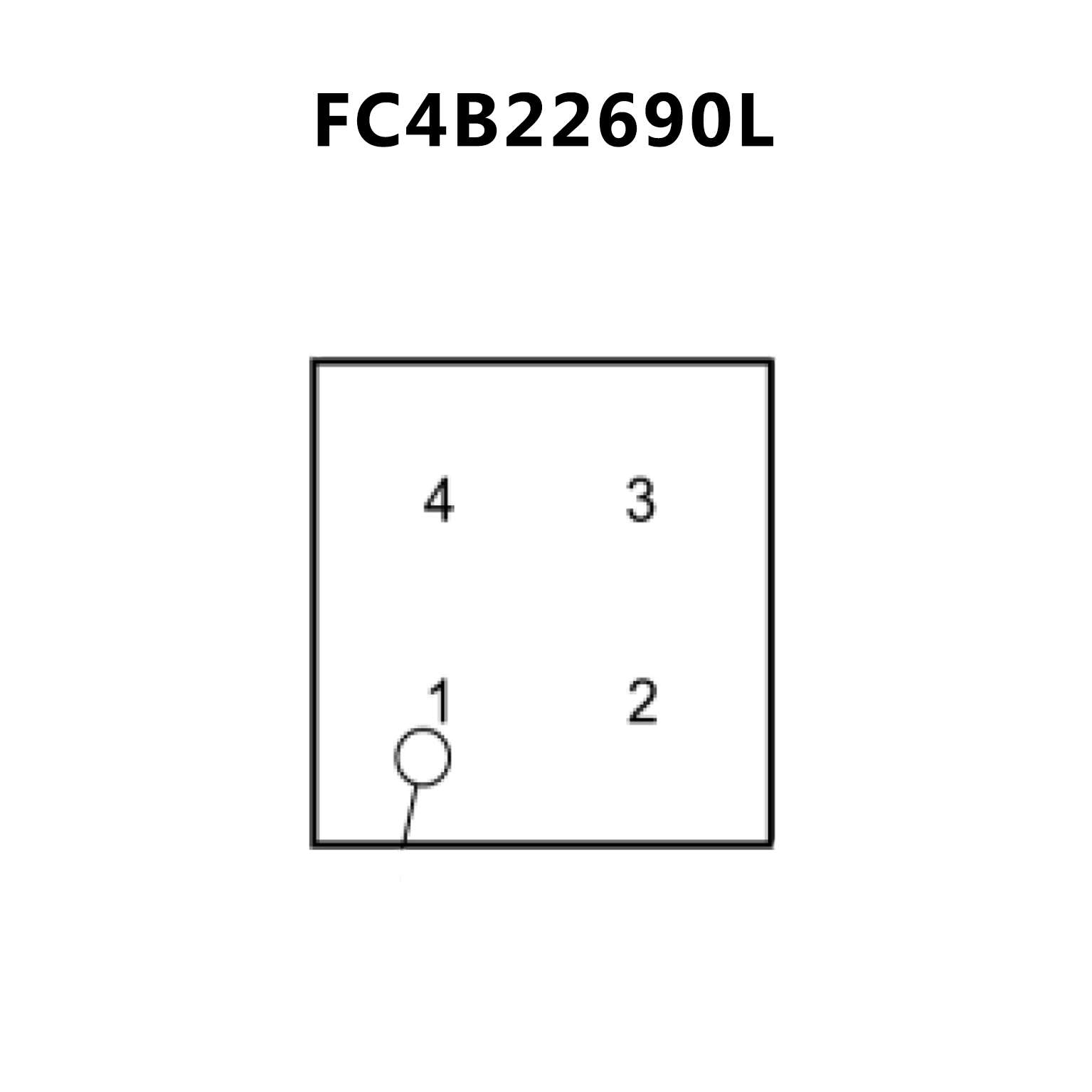

PIN CONFIGUTION
