Gate resistor installed Dual N-channel MOS FET, GS95B3CS-R Replace FCAB21490.
GS95B3CS-R
GS95B3CS-R.pdf
GS95B3CS-R.pdfFEATURES
? Input Voltage up to 12V
? MOSFET Turn on Resistor RSS(ON)
=2.2mohm(Typ)@Vgs=3.8V
? Drain to Drain MOSFET Module
? With ESD Protection
? Continuous Current=13.5A
? Green Product (RoHS, Lead-Free, Halogen-Free Compliant)
PIN CONFIGUTION
优势替代
FEATURES
? Source-source ON resistance:RSS(on) typ. = 2.2 mW（VGS = 3.8 V)
? CSP(Chip Size Package)
? Halogen-free / RoHS compliant (EU RoHS / UL-94 V-0 / MSL : Level 1)

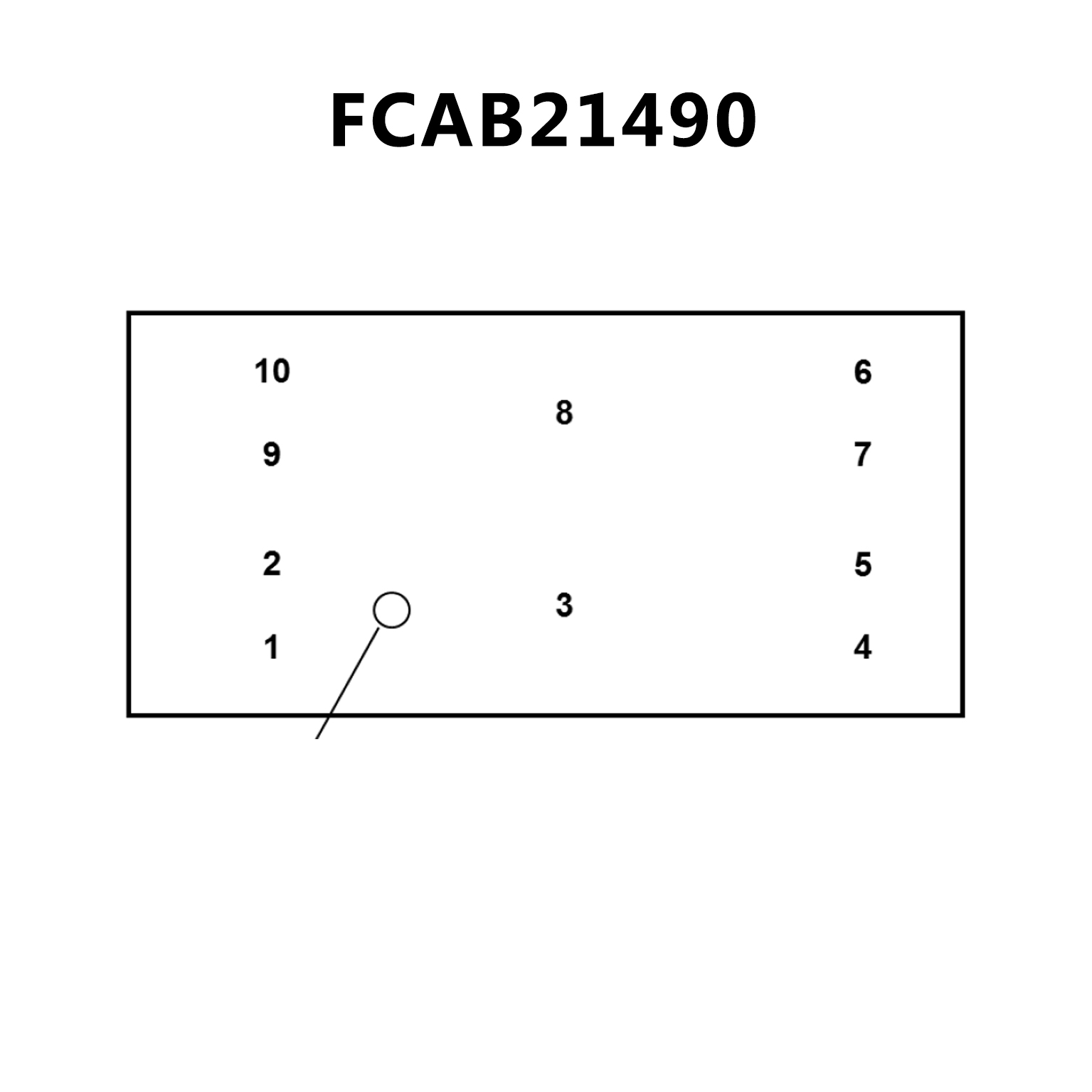

PIN CONFIGUTION
