12V Common-Drain Dual N-Channel MOSFET, GS95B5CS-R Replace AOC3860.
GS95B5CS-R
GS95B5CS-R.pdf
GS95B5CS-R.pdfFEATURES
? Input Voltage up to 12V
? MOSFET Turn on Resistor RSS(ON)
=3.1mohm(Max)@Vgs=4.5V
? Drain to Drain MOSFET Module
? With ESD Protection
? Continuous Current=20A
? Green Product (RoHS, Lead-Free, Halogen-Free Compliant)

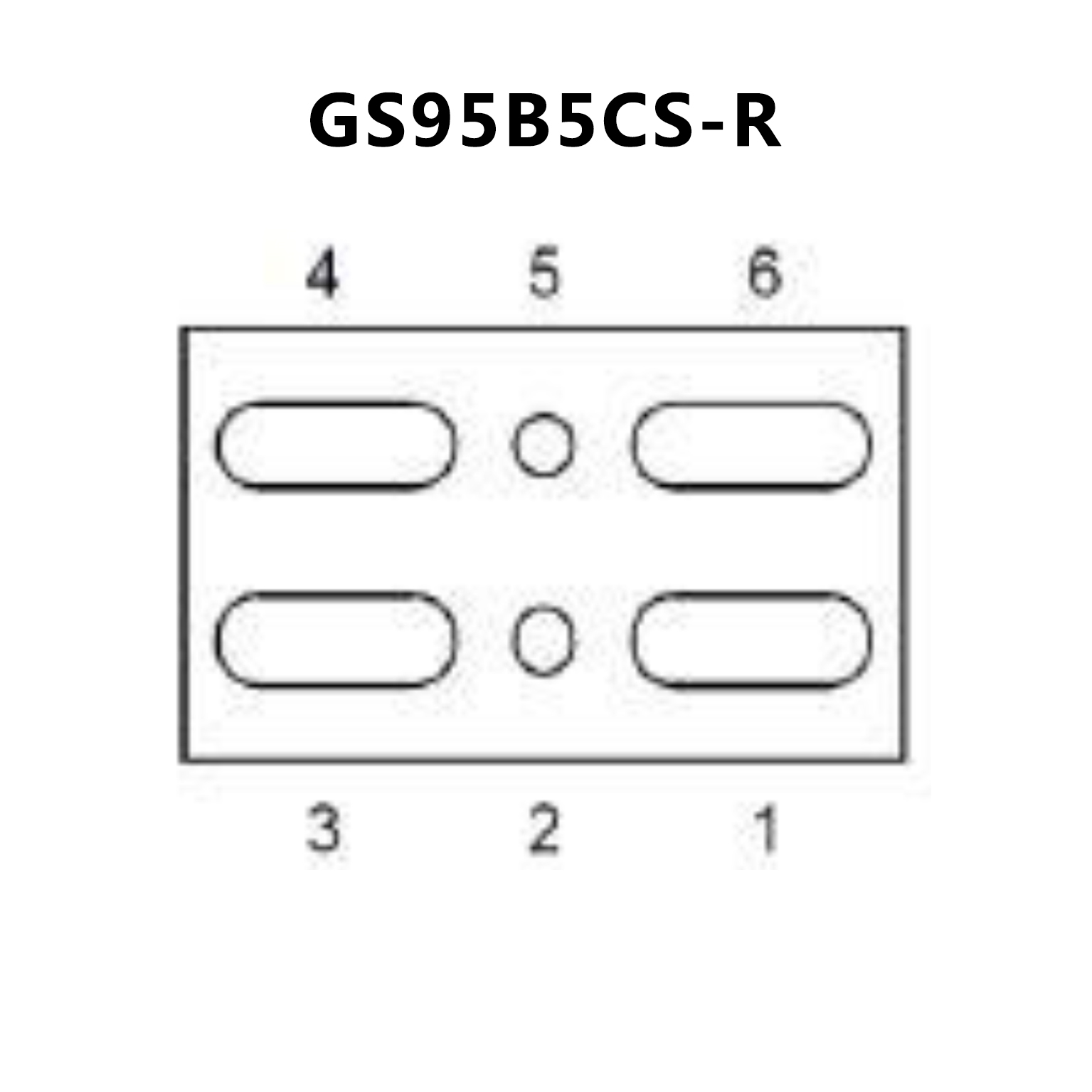

PIN CONFIGUTION
优势替代
FEATURES
? Trench Power MOSFET technology
? Low RSS(ON)
? With ESD protection to improve battery performance and safety
? Common drain configuration for design simplicity
? RoHS and Halogen-Free Compliant

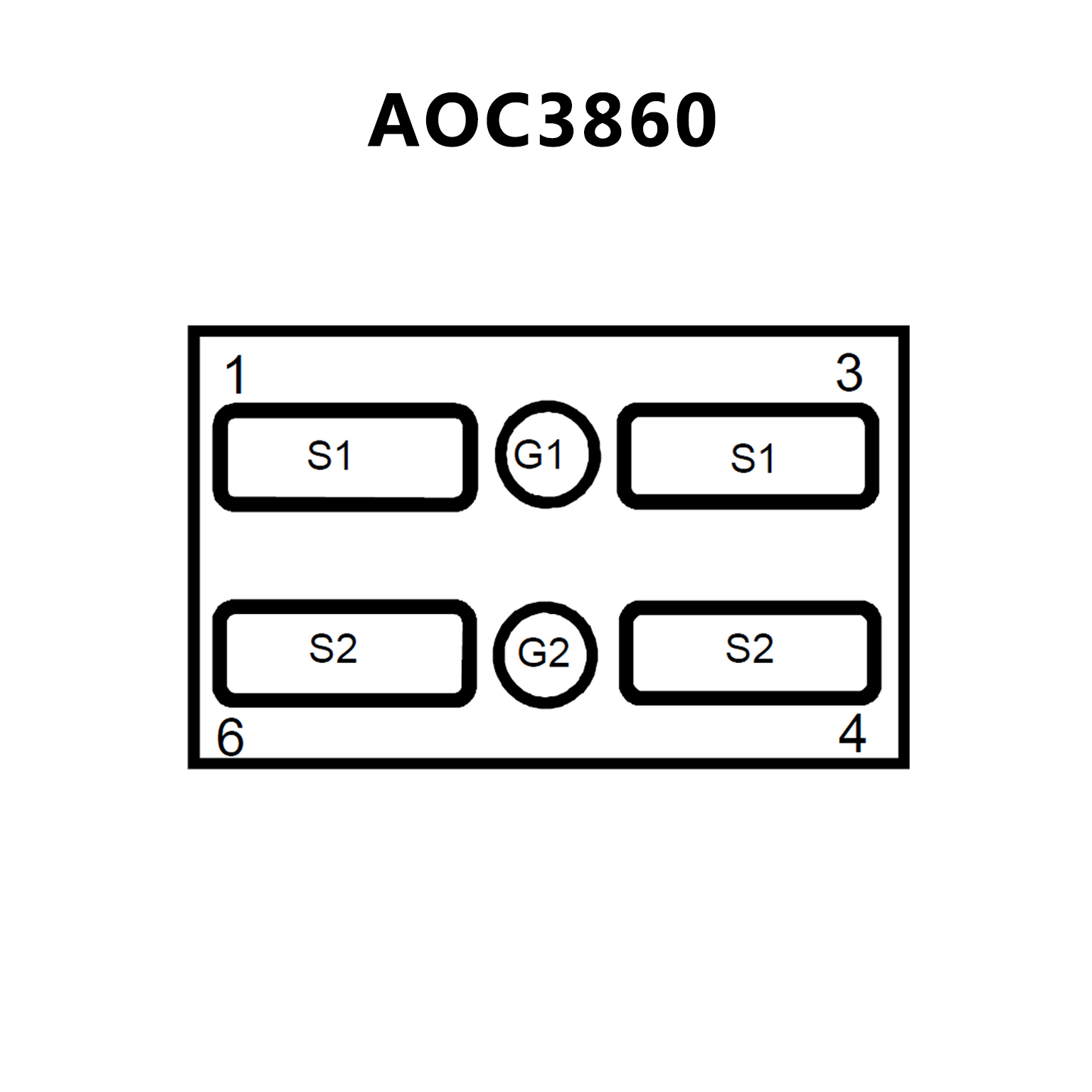

PIN CONFIGUTION
