X 电容自动放电芯片, HF81 替代型号推荐 ME8701.
ME8701
ME8701.pdf
ME8701.pdfFEATURES
? 内置 1000V MOSFET
? AC 电压接入后阻止 X 电容放电
? AC 电压断电后通过放电电阻对 X 电容放电
? 功率损耗<5mW@230VAC
? X 电容容值灵活调节，简化 EMI 滤波电路设计
? 自供电，无需外部偏置
? 两端子结构，满足安规标准
? 内部限制最大放电电流

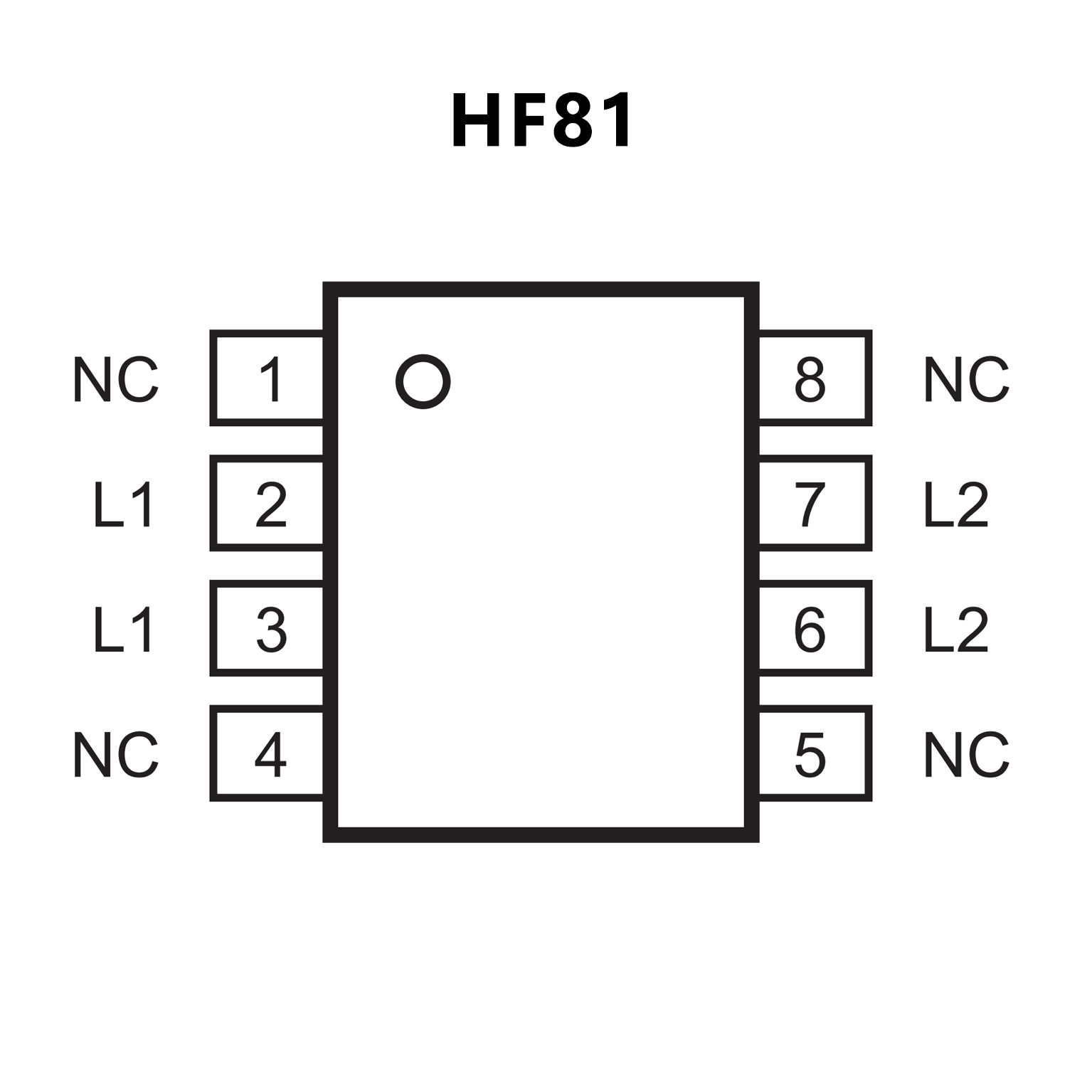

PIN CONFIGUTION
优势替代
FEATURES
? Disconnect series discharge resistors from
L-N when AC voltage is applied
? Connect series discharge resistors with L-N
to discharge the X capacitor when AC
voltage is unplugged
? Supplied by AC voltage directly and doesn’t
need external bias
? Meets safety standards for use before or
after input fuse
? No external ground pin leads to high
common mode surge immunity
? 1000V internal JFET inside leads to high
differential surge immunity
? >4mm creepage on package and PCB
? Compliant to IEC 60950-1

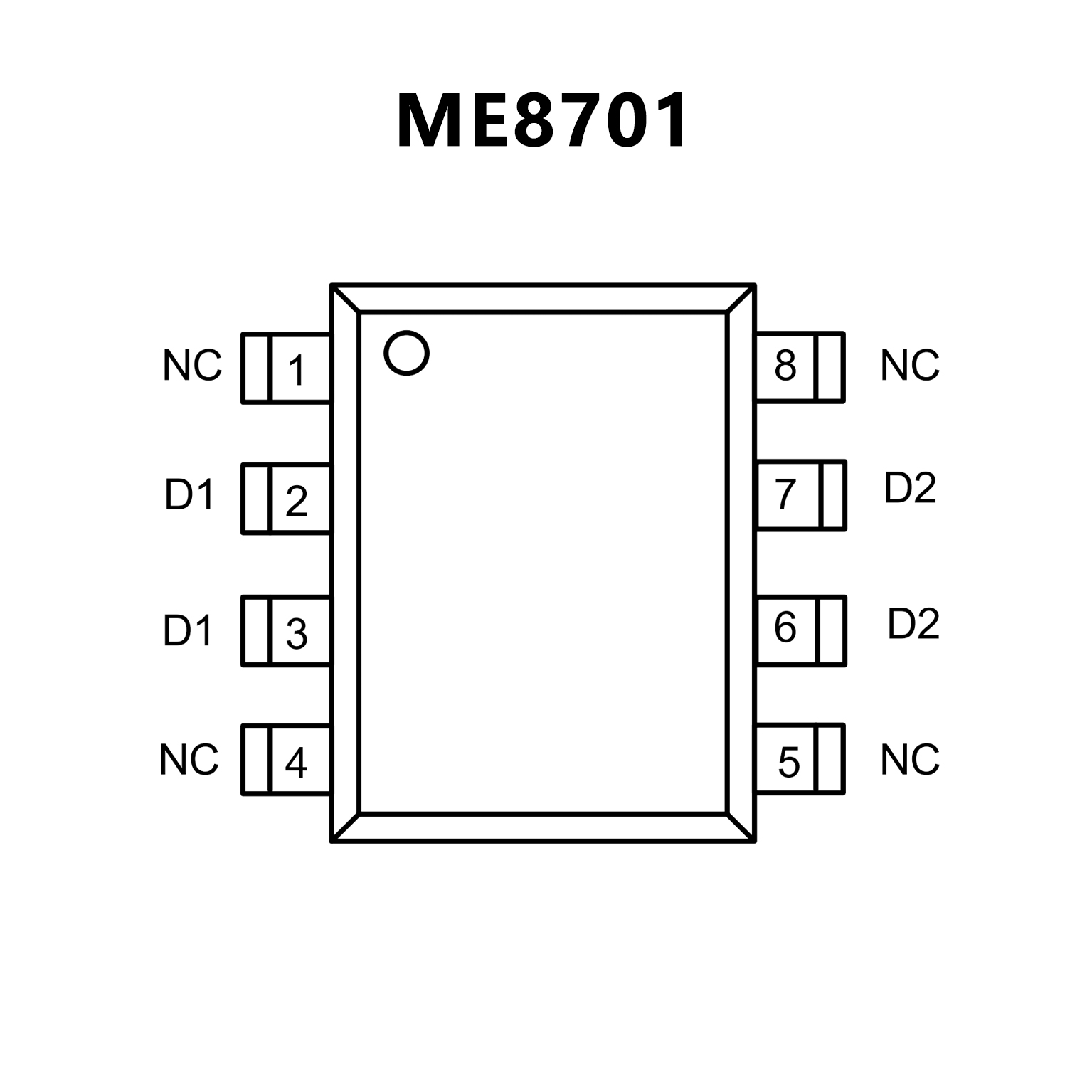

PIN CONFIGUTION
