Precision Timers, NE555 Replace TI LM555.
NE555
NE555.pdf
NE555.pdfFEATURES
? Timing from microseconds to hours
? Astable or monostable operation
? Adjustable duty cycle
? TTL compatible output can source or sink up to 200mA
? “Green” Molding Compound (No Br, Sb)
? Lead Free Finish/ RoHS Compliant (Note 1)

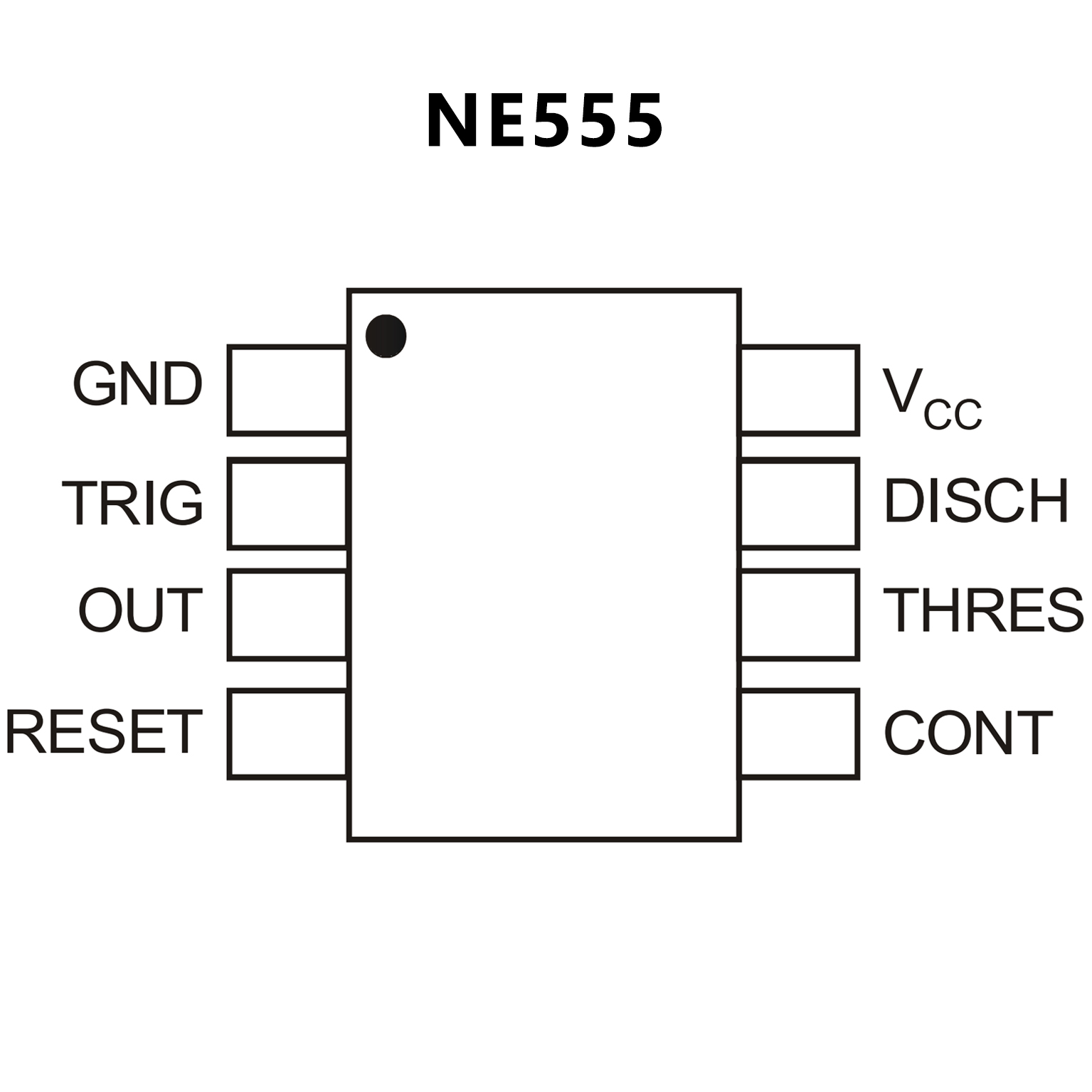

PIN CONFIGUTION
优势替代
FEATURES
? Direct Replacement for SE555/NE555
? Timing from Microseconds through Hours
? Operates in Both Astable and Monostable Modes
? Adjustable Duty Cycle
? Output Can Source or Sink 200 mA
? Output and Supply TTL Compatible
? Temperature Stability Better than 0.005% per °C
? Normally On and Normally Off Output
? Available in 8-pin VSSOP Package
PIN CONFIGUTION
