3.3V, 8:1 Mux/DeMux NanoSwitch, PI3B3251 Replace CBT3251.
PI3B3251
PI3B3251.pdf
PI3B3251.pdfFEATURES
? Near-Zero propagation delay
? 5? switches connect inputs to outputs
? Ultra Low Quiescent Power (0.1?A typical)
– Ideally suited for notebook applications
? Pin compatible with 74 series 251 logic devices
? Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
? Halogen and Antimony Free. “Green” Device (Note 3)
? For automotive applications requiring specific change control
? Packaging (Pb-free & Green available):
– 16-pin 173-mil Wide (TSSOP)

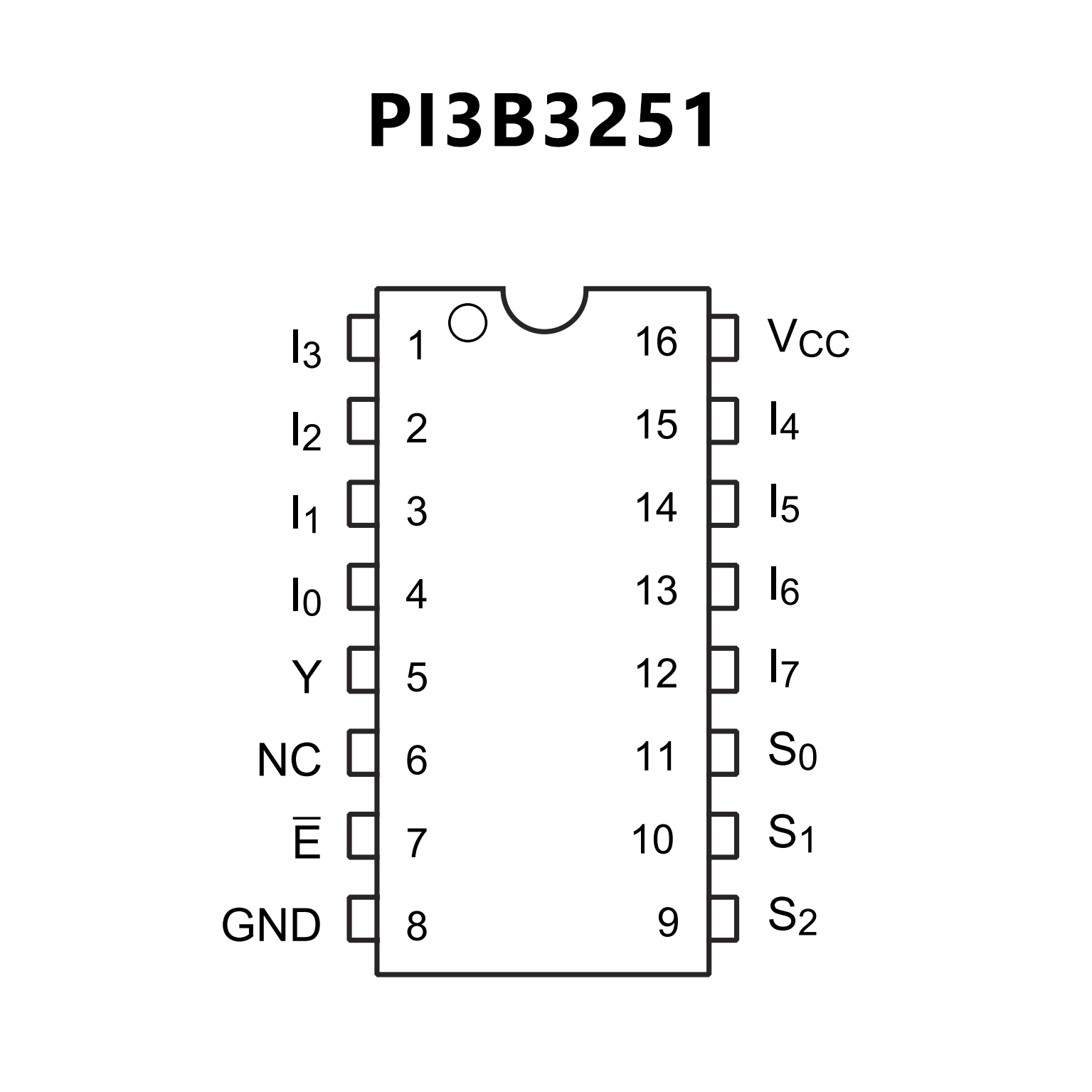

PIN CONFIGUTION
优势替代
FEATURES
? 5 ? switch connection between two ports
? TTL-compatible input levels
? Minimal propagation delay through the switch
? ESD protection exceeds 2000V HBM per JESD22-A114,
200V MM per JESD22-A115 and 1000V CDM per
JESD22-C101
? Latch-up testing is done to JESDEC Standard JESD78
which exceeds 100 mA

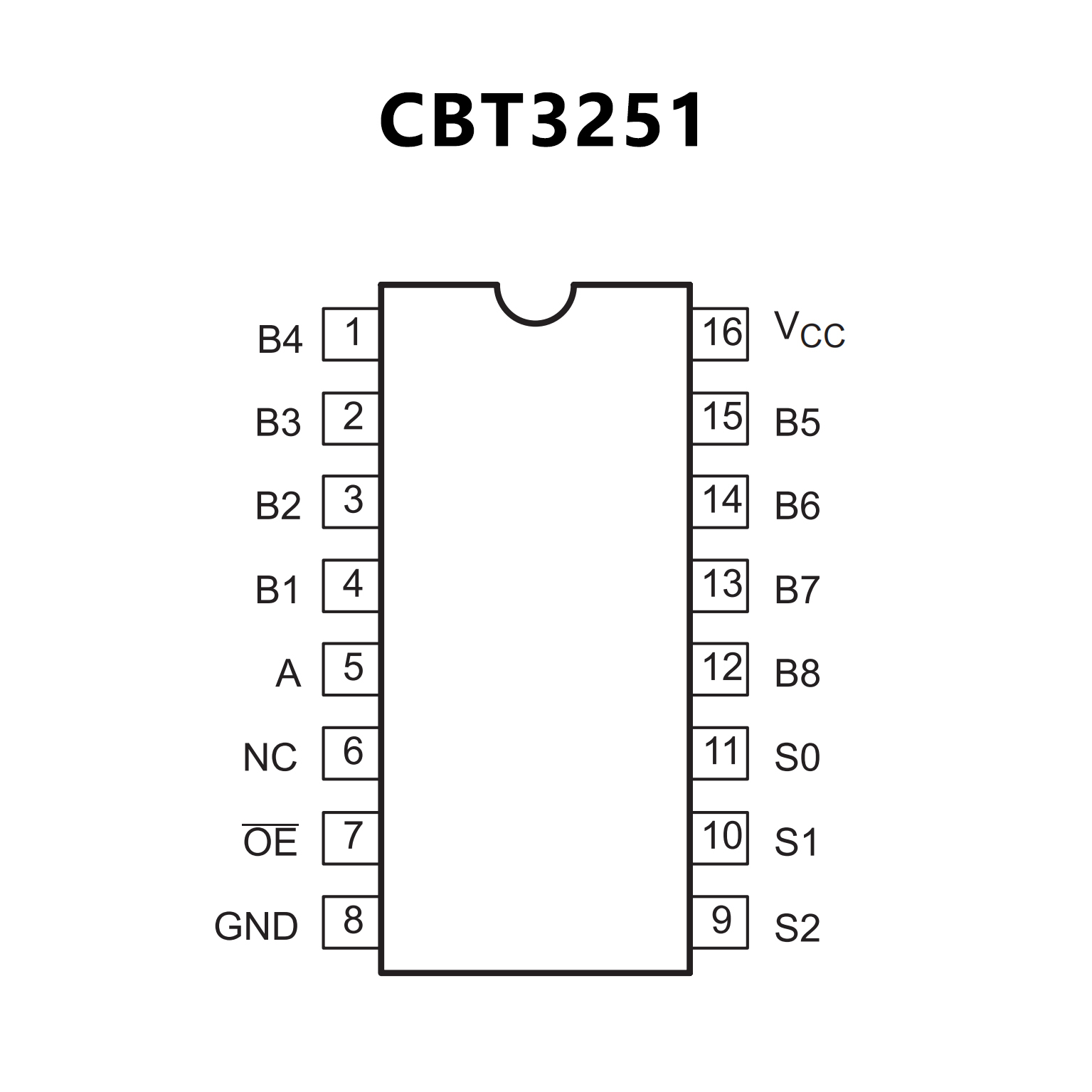

PIN CONFIGUTION
