? Operation Power Supply Voltage from 2.3V to 5.5V

? 16-bit Remote I/O Pins that Default to Inputs at

  Power-up

? 1 MHz PC-bus Interface

? Compliant with the PC-bus Fast and Standard Modes

? 5.5V Tolerant I/Os

? SDA with 30 mA Sink Capability for 4000 pF Buses

? Latched Outputs with 25 mA Sink Capability for

  Directly Driving LEDs

? Total Package Sink Capability of 400 mA

? Active LOW Open-drain Interrupt Output

? Low Standby Current

? 16 Programmable Slave Addresses using 2 Address Pins

? ESD Protection (4KV HBM and 1KV CDM)

? Latch-up Tested (exceeds 100mA)

? Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

? Halogen and Antimony Free. “Green” Device (Note 3)

? For automotive applications requiring specific change

  control

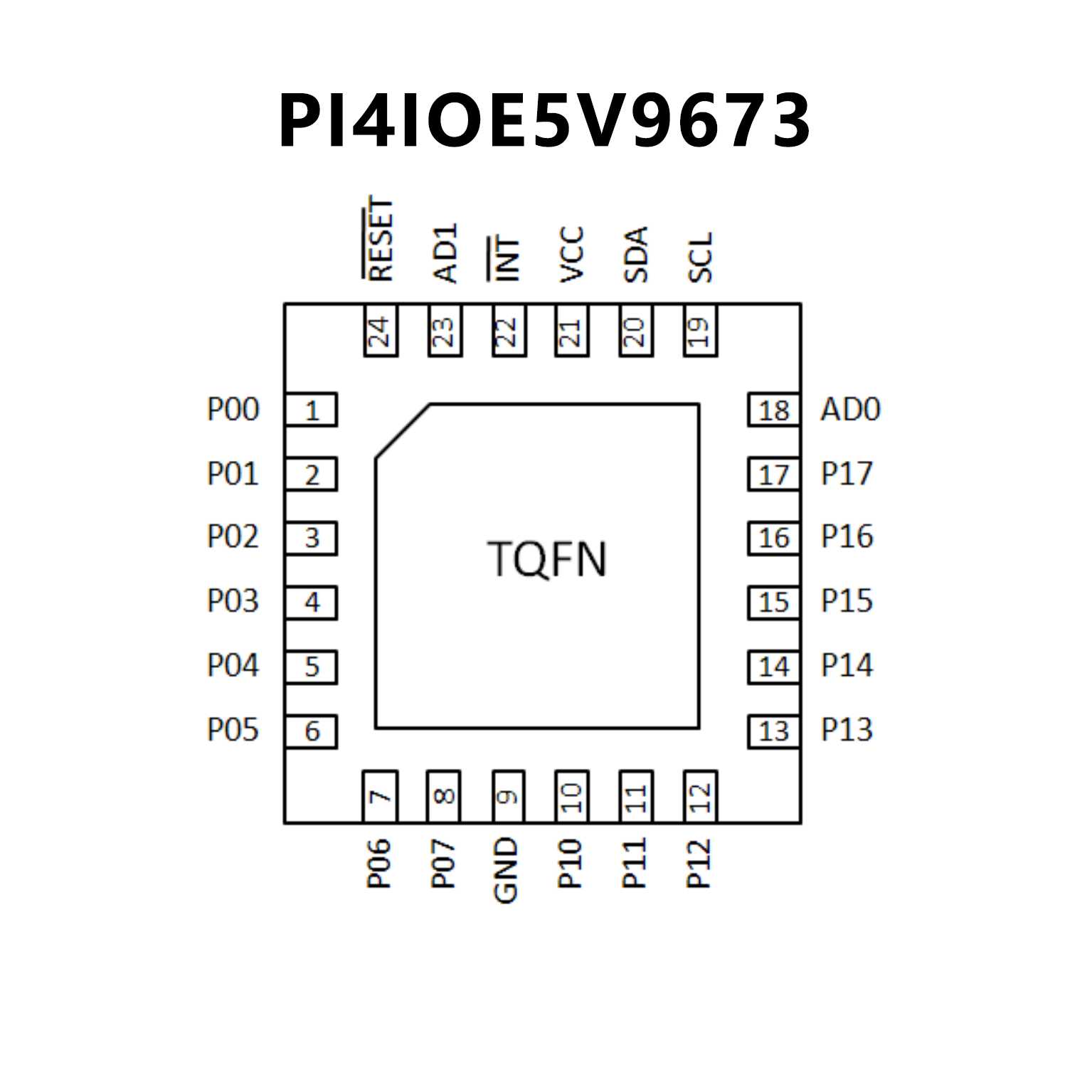

? Packaging (Pb-free & Green): 24-Pin, TQFN 4x4 (ZD)
