2.8V-6V Vin 3A Synchronous Step Down Convertor, SCT2130Q Replace MPQ2179.
SCT2130Q
SCT2130Q.pdf
SCT2130Q.pdfFEATURES
? Qualified for Automotive Applications
? AEC-Q100 Qualified with the Following Results:
- Device Temperature Grade 1: -40°C to 125°C
Ambient Operating Temperature Range
? Input Voltage Range: 2.8V-6V
? Up to 3A Continuous Output Current
? Low Shutdown Current: 0.7uA
? 0.6V±1.1% Feedback Reference Voltage
? 2.1MHz Switching Frequency
? Integrated 25m? High-Side and 20mΩ Low-Side
Power MOSFETs
? Adjustable output voltage from 0.6V to 5V
? Active output discharge
? Programmable Soft Start Time
? Power Good Indicator
? Integrated Protection Feature
- Cycle-by-cycle current limit
- Under-voltage Lockout
- HICCUP Over Current Protection
- Thermal Shutdown Protection:160°C
? QFN-8L 1.5mm*2mm Package
? Available in a Wettable Flank Package

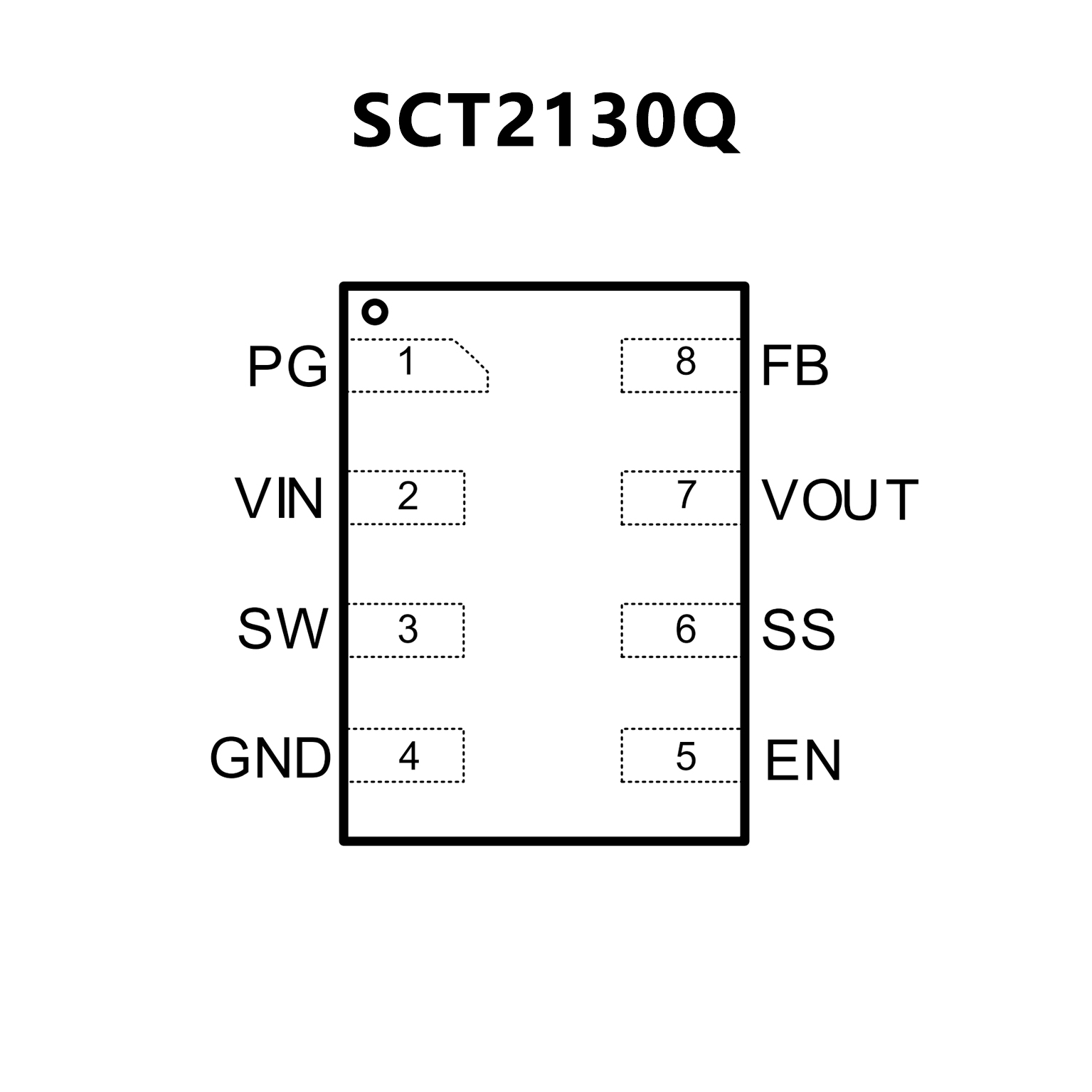

PIN CONFIGUTION
优势替代
FEATURES
? Wide 2.5V to 5.5V Operating Input Voltage Range
? Up to 3A Peak Output Current
? 2.4MHz Switching Frequency
? EN for Power Sequencing
? 1% FB Accuracy
? Output Adjustable from 0.6V
? 65m? and 35m? Internal Power MOSFET Switches
? 100% Duty On
? Output Discharge
? Power Good (PG)
? External Soft Start (SS) Control
? Output Over-Voltage Protection (OVP)
? Short-Circuit Protection (SCP) with Hiccup Mode
? Forced Continuous Conduction Mode (FCCM)
? Available in a QFN-8 (1.5mmx2mm) Package
? Available in a Wettable Flank Package
? AEC-Q100 Grade 1

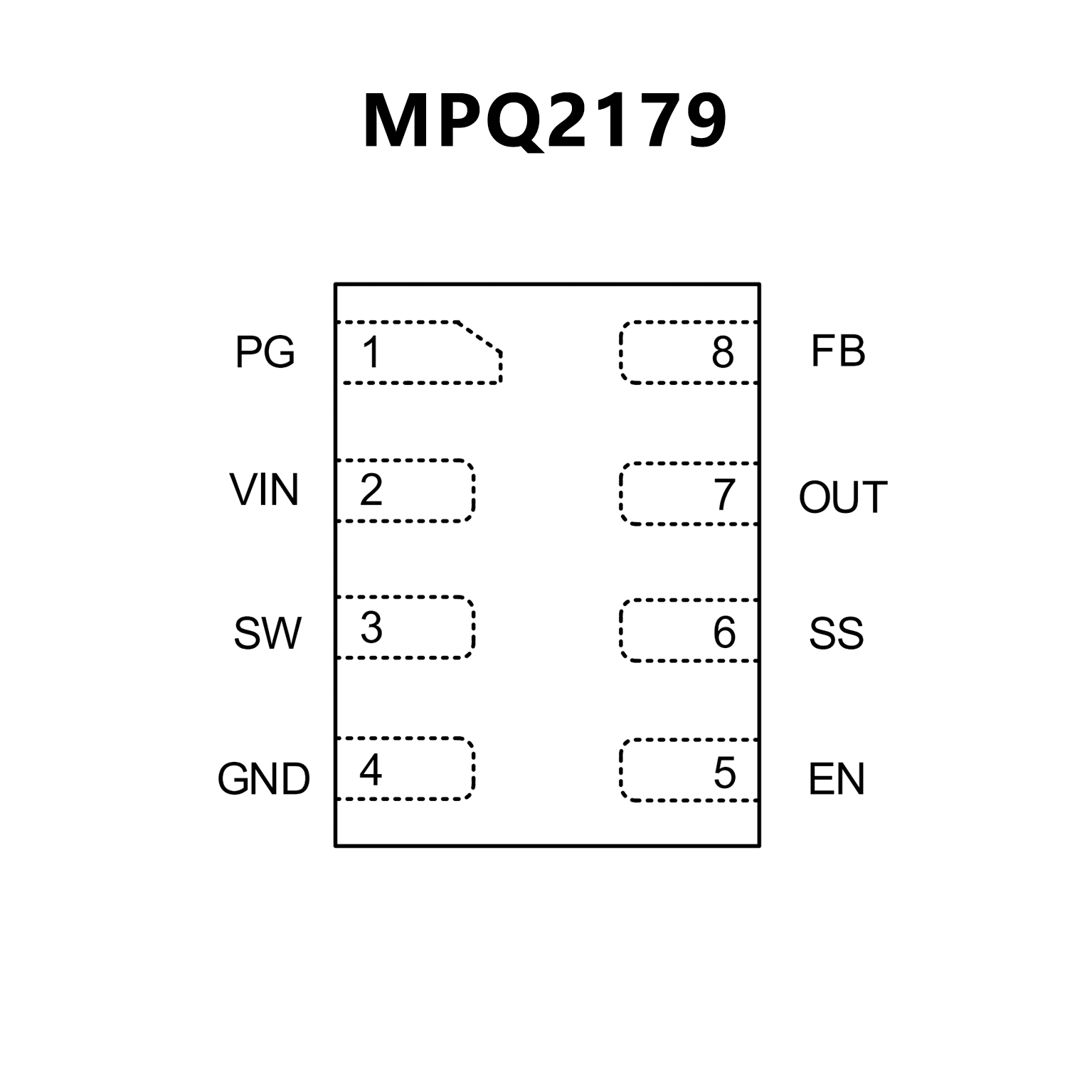

PIN CONFIGUTION
