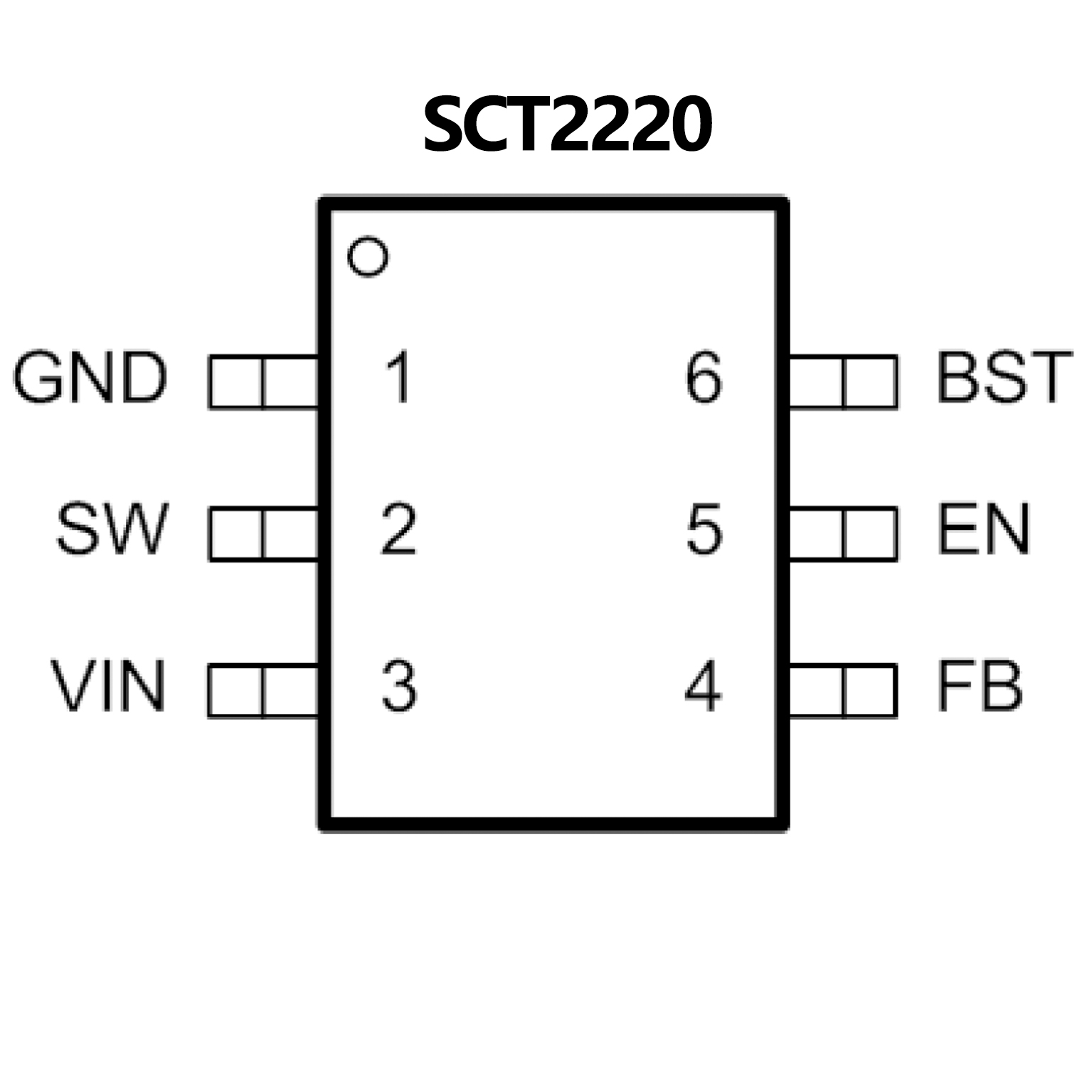

SCT2220.pdf? Wide Input Voltage: 4.2-17V
? 2A Continuous Output Current with
Integrated 90mΩ/65mΩFETs
? Wide Output Voltage Range:0.8V-7V
? Quiescent Current 135?A
? Cycle-by-Cycle Current Limiting
? Internal 2.5ms Soft-Start
Limits the inrush current
? Fixed 750kHz Switching Frequency
? Input Under-Voltage Lockout
? Power save mode at light load
? Over-Temperature Protection
? Available in a SOT563 and TSOT23 Package

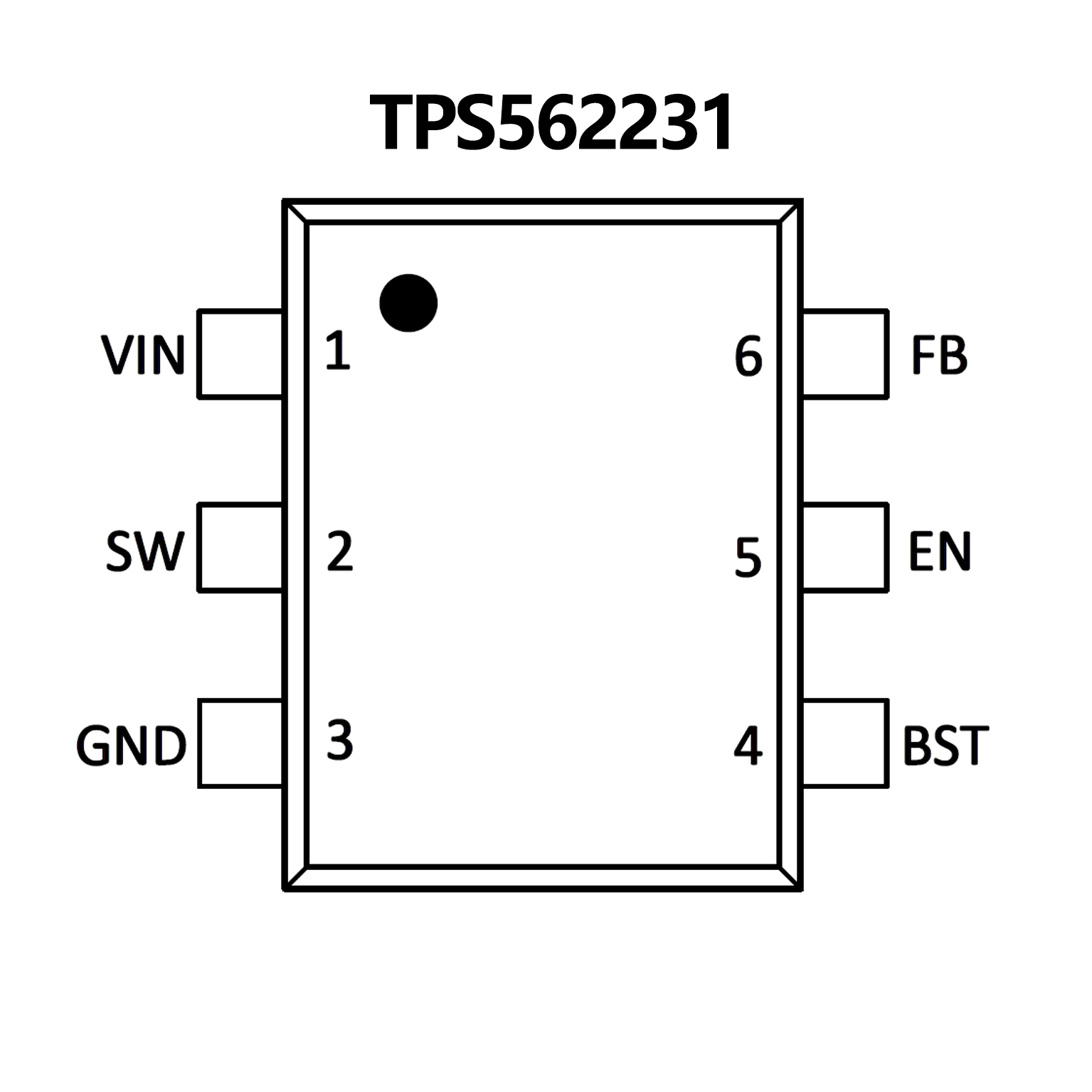

? 2-A converter integrated 95-mΩ and 55-mΩ FETs
? D-CAP3? Mode Control with fast transient
response
? Input voltage range: 4.5 V to 17 V
? Output voltage range: 0.6 V to 7 V
? Pulse skip mode
? 850-kHz switching frequency
? Low shutdown current less than 2 μA (typical)
? 2% feedback voltage accuracy (25?C)
? Startup from pre-biased output voltage
? Cycle-by-cycle over current limit
? Hiccup-mode over current protection
? Non-latch UVP and TSD protections
? 6-pin SOT563 package
? Precision enable
? Pin-to-pin compatible with TPS563231
