4.5V 40V Vin, 600mA Synchronous Step-down DCDC Converter, SCT2400 Replace SY8200.
SCT2400
SCT2400.pdf
SCT2400.pdfFEATURES
? Wide Input Range: 4.5V-40V
? Up to 600mA Continuous Output Current
? Less than 0.1% Output Ripple at 12V Output
? 0.81V ± 2.5% Feedback Reference Voltage
? Integrated 600mΩ High-Side and 300mΩ Low-
Side Power MOSFETs
? Fixed Frequency 2MHz
? Pulse Skipping Mode (PSM) at Light Load
? 90uA Quiescent Current in Sleep Mode
? 80ns Minimum On-time
? 1ms Internal Soft-start Time
? Over-Temperature Protection
? Available in an TSOT23-6L Package

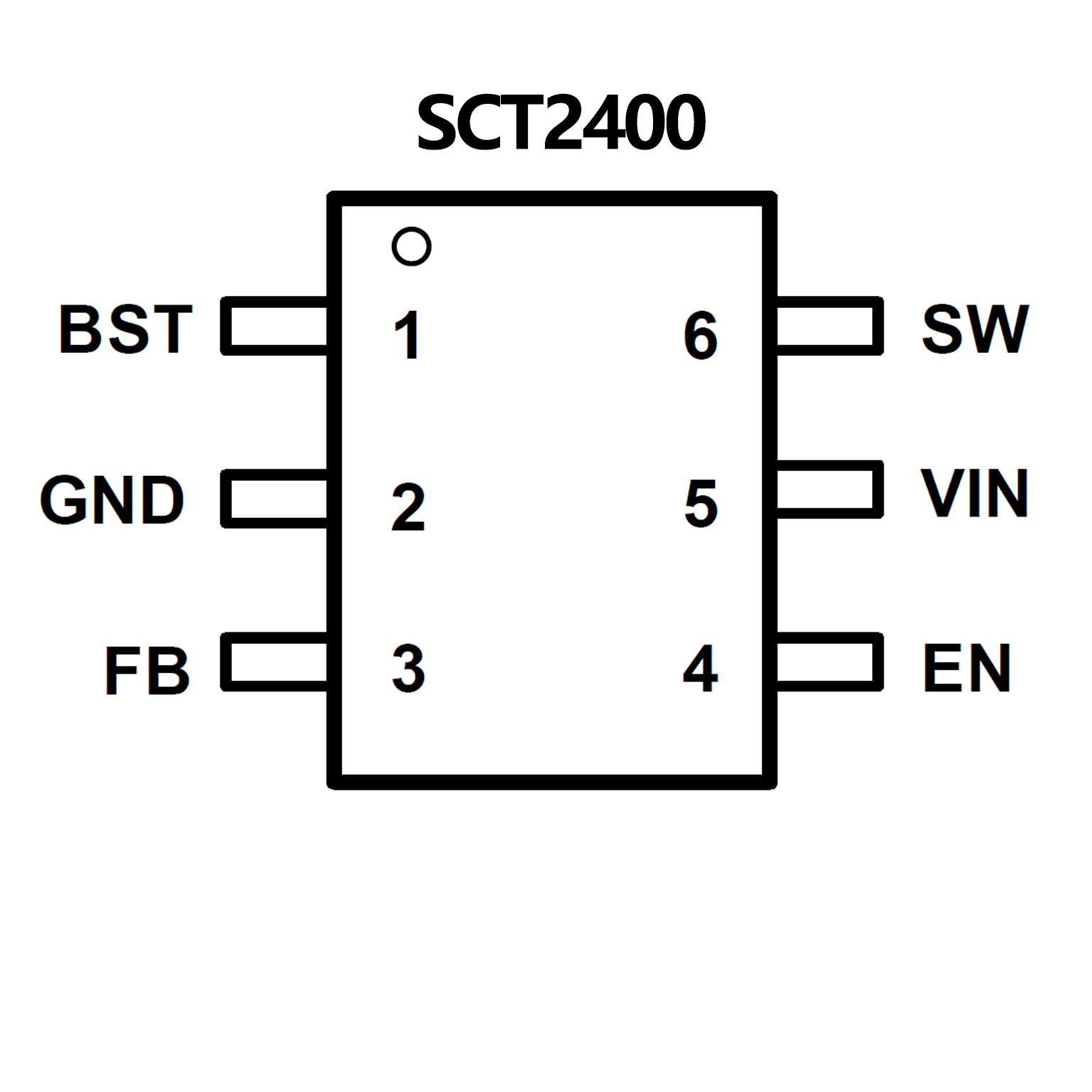

PIN CONFIGUTION
优势替代
FEATURES
? Low RDS(ON) for internal switches
(top/bottom):420/200 m
? 6-24V input voltage range
? Instant PWM architecture to achieve fast transient
responses Internal softstart limits the inrush current
? 2% 0.6V reference
? RoHS Compliant and Halogen Free
? Compact package: SOT23-6 pin

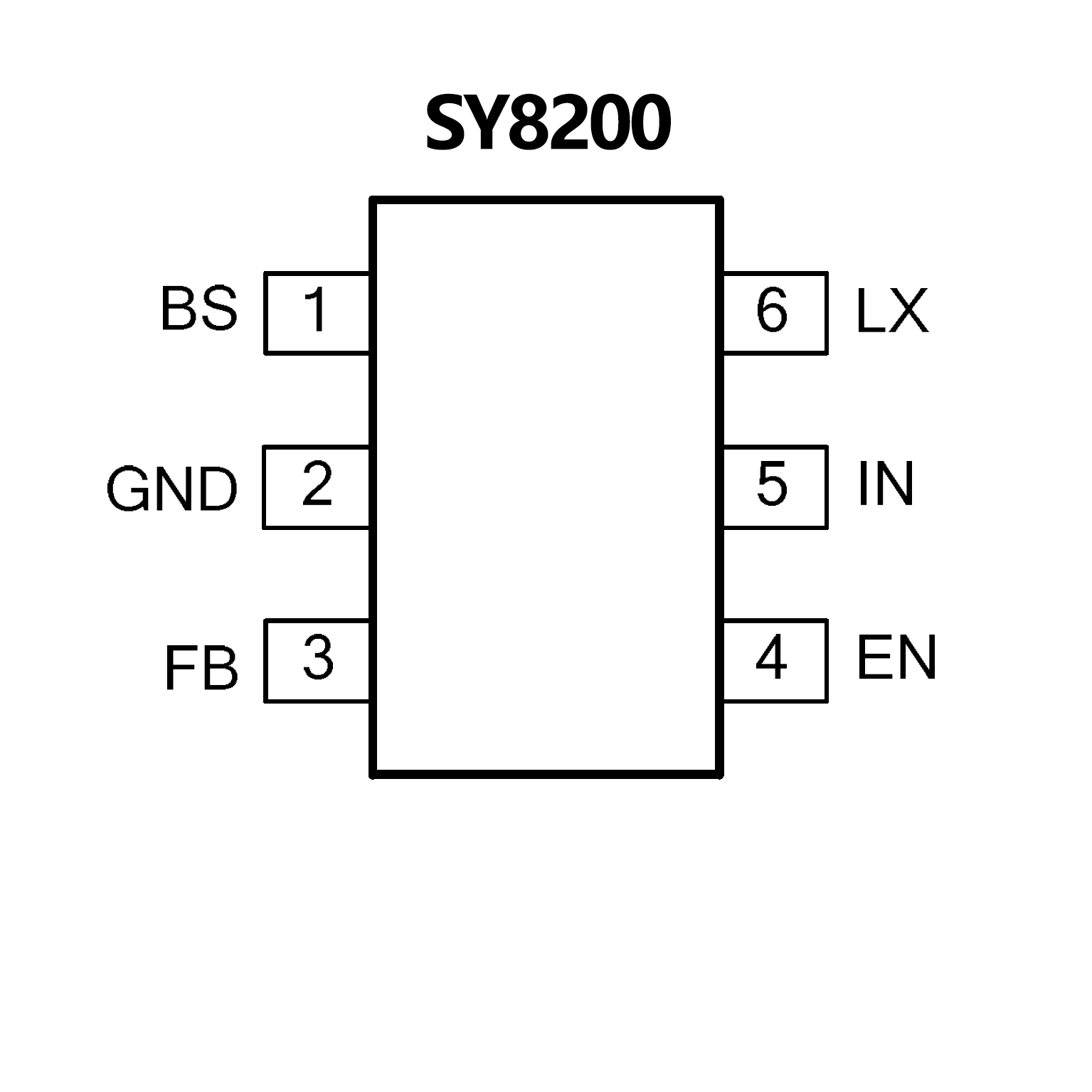

PIN CONFIGUTION
