High Efficiency, 200kHz, 100V Input, 0.6A Asynchronous Step Down Regulator, SCT2A01 Replace SY8511.
SCT2A01.pdf优势替代
FEATURES
? Low RDS(ON) for Internal N-channel Power FET:1Ω
? 4.5-100V Input Voltage Range
? 0.6A Output Current Capability
? 200kHz Pseudo Constant Switching Frequency
? Internal Soft-start Limits the Inrush Current
? Hic-cup Mode Output Short Circuit Protection
? EN ON/OFF Control with Accurate Threshold
? Cycle by Cycle Peak Current Limit
? 0.6V±1 % Reference Voltage
? TSOT23-6 Package

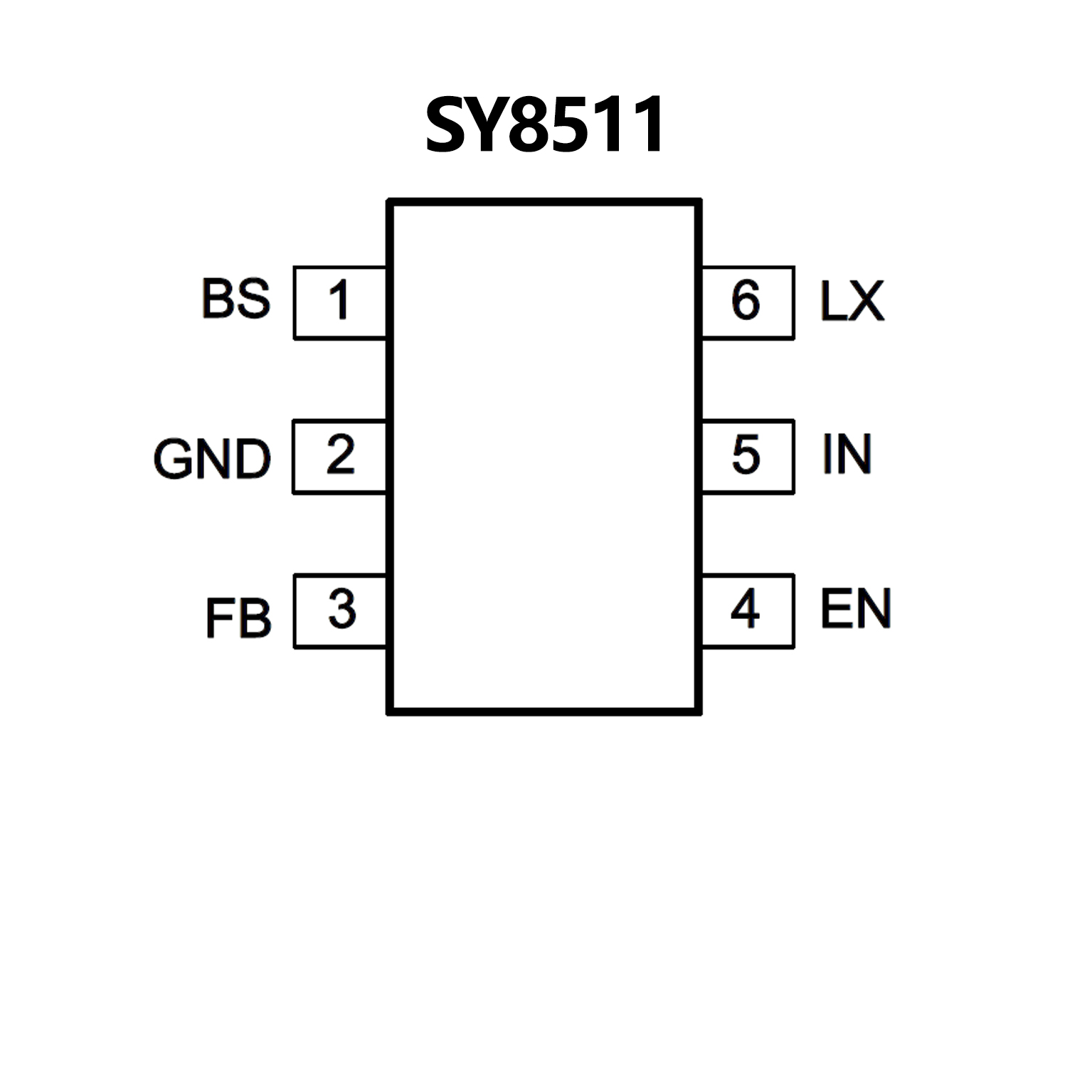

PIN CONFIGUTION
