? Wide Supply Voltage Range: 4.5V - 24V

? 4A Peak Source Current and 4A Peak Sink

  Current

? Stackable Output for Higher Driving Capability

? Negative Input Voltage Capability: Down to -5V

? TTL Compatible Input Logic Threshold

? Propagation Delay: 13ns

? Typical Rising and Falling Times: 8ns

? Typical Delay Matching: 1ns

? Low Quiescent Current: 55uA

? Output Low When Input Floating

? Independent Enable Logic for Each Channel

? Thermal Shutdown Protection: 170°C

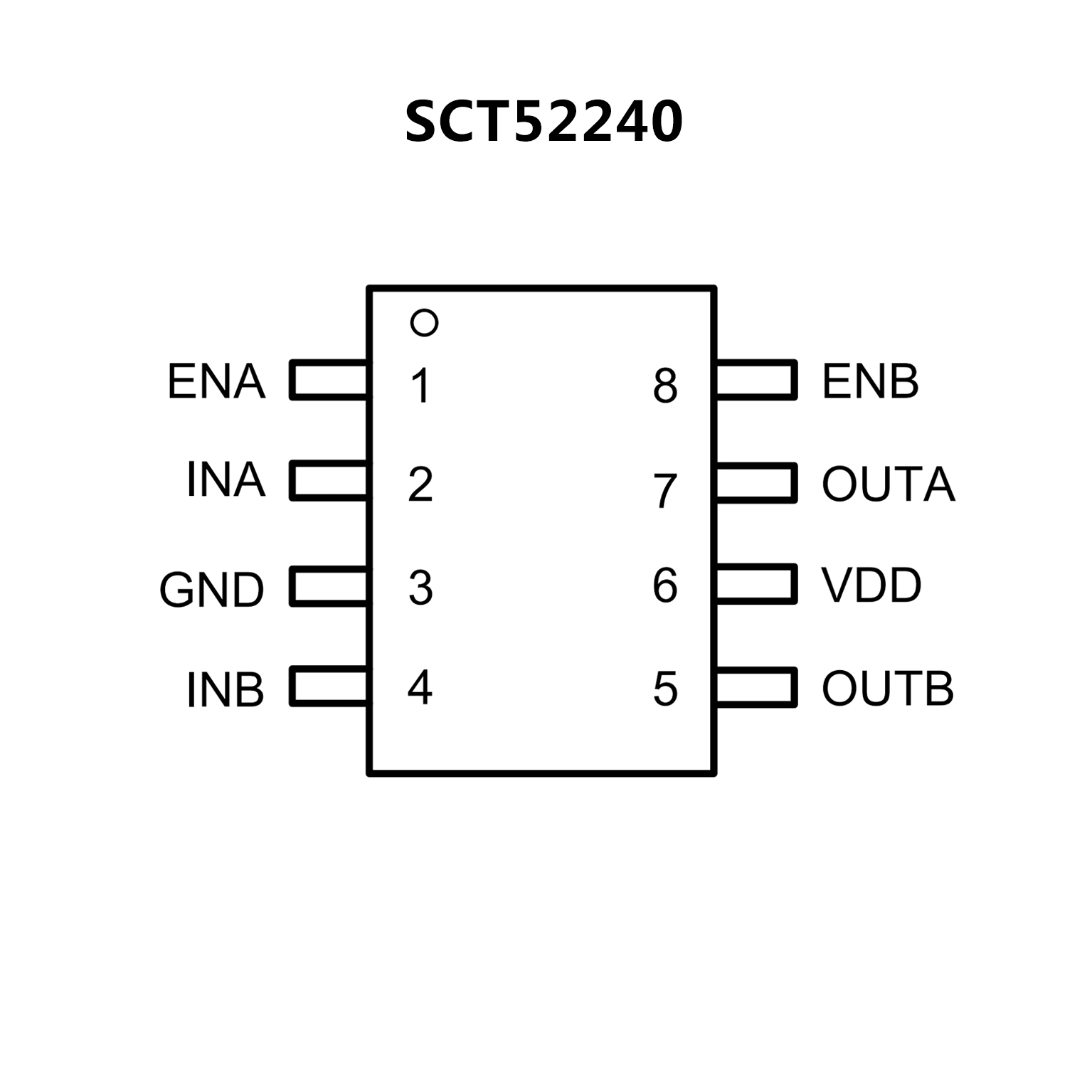

? Available in SOP-8 and eMSOP-8 Package
