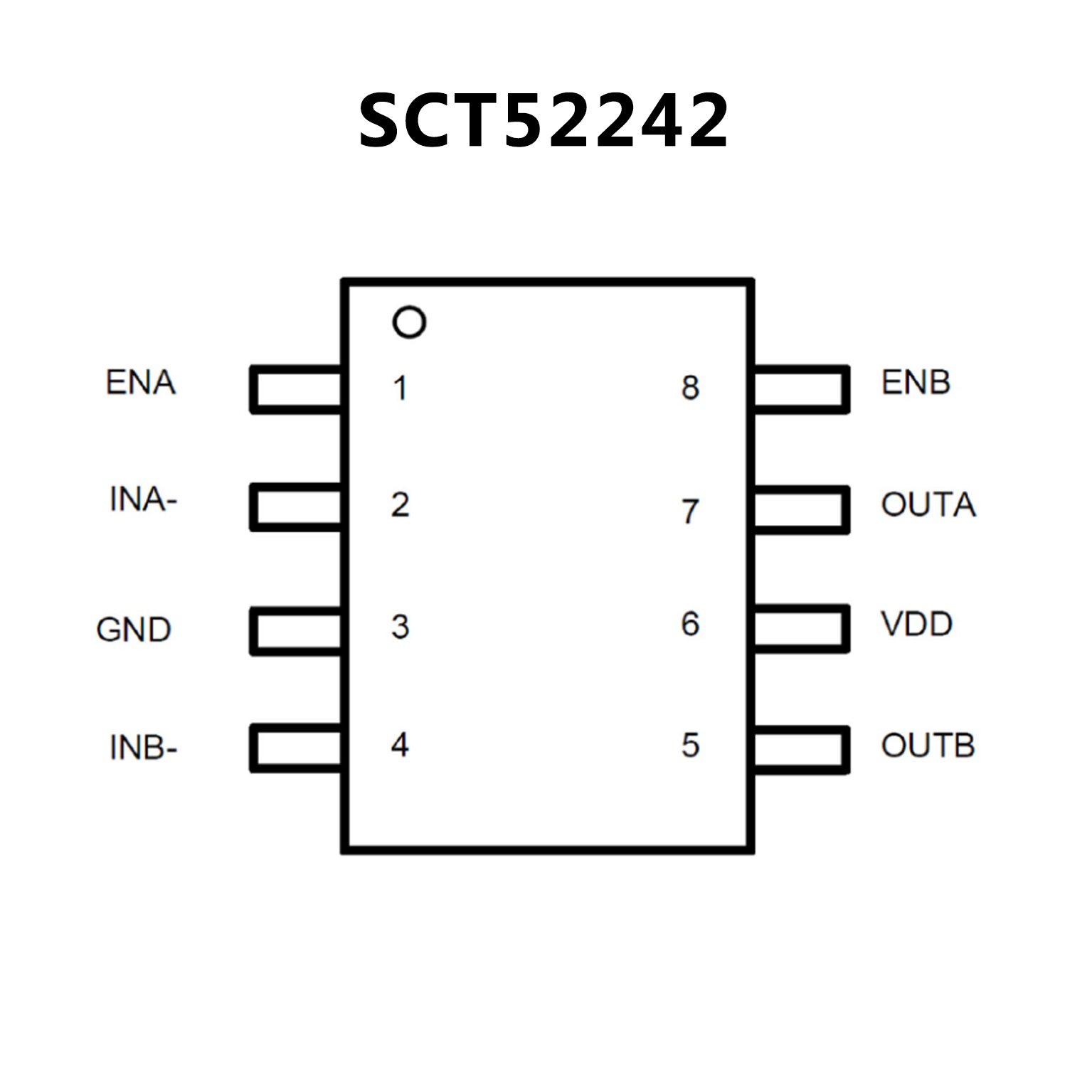

SCT52242.pdf? Wide Supply Voltage Range: 4.5V - 24V
? 4A Peak Source Current and 4A Peak SinkCurrent
? Stackable Output for Higher Driving Capability
? Negative Input Voltage Capability: Down to -5V
? TTL Compatible Input Logic Threshold
? Propagation Delay: 13ns
? Typical Rising and Falling Times: 8ns
? Typical Delay Matching: 1ns
? Low Quiescent Current: 55?A
? Output Low When Input Floating
? Independent Enable Logic for Each Channel
? Thermal Shutdown Protection: 170°C
? Available in SOP-8 Package
? Bipolar/CMOS/DMOS construction
? Latch-up protection to >500mA reverse current
? 1.5A-peak output current
? 4.5V to 18V operating range
? Low quiescent supply current4mA at
logic 1 input400?A at logic 0 input
? Switches 1000pF in 25ns
? Matched rise and rall times
? 7Ω output impedance
? <40ns typical delay
? Logic-input threshold independent
of supply voltage
? Logic-input protection to –5V
? 6pF typical equivalent input capacitance
? 25mV max. output offset
from supply or ground

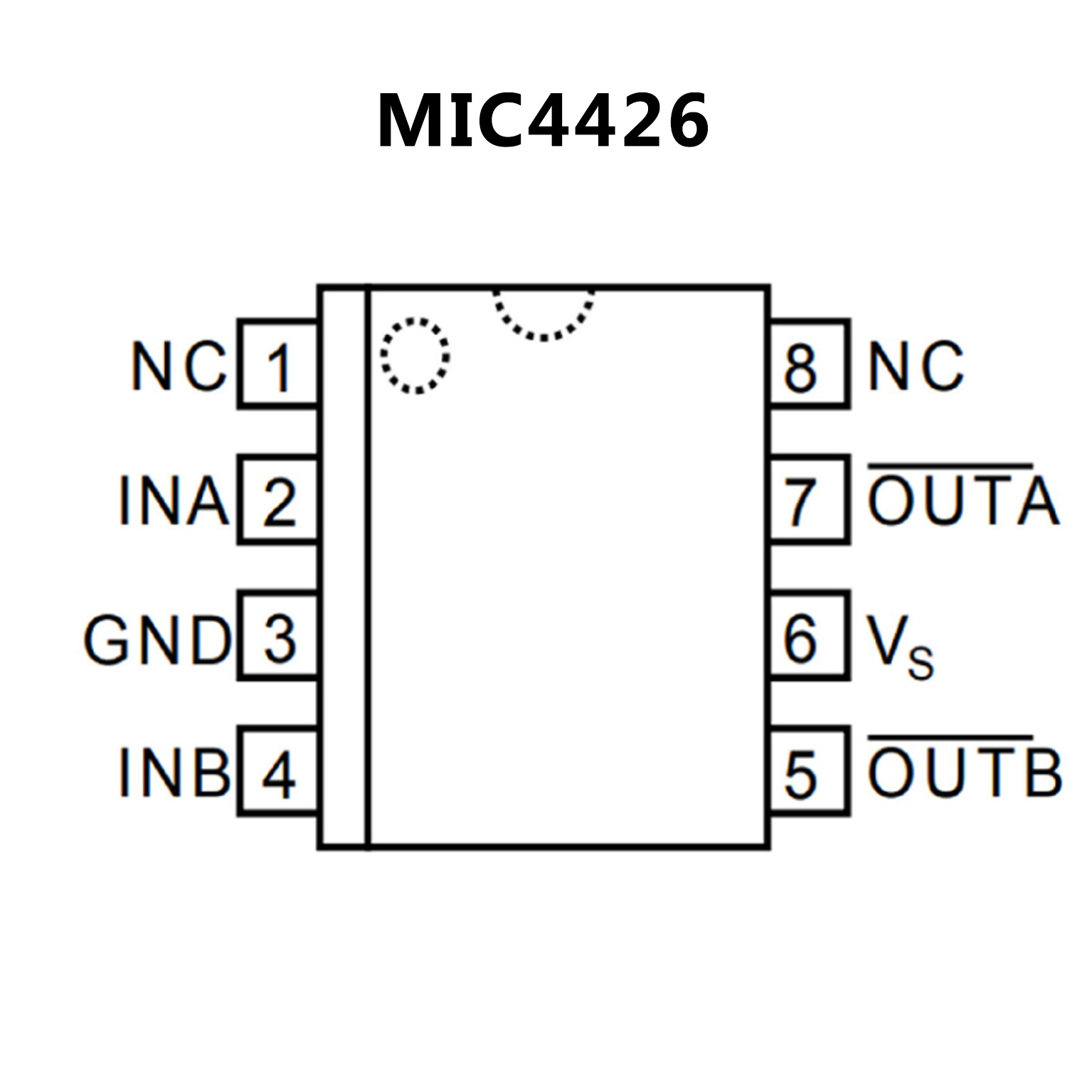

? Replaces MIC426/427/428
and MIC1426/1427/1428
? Dual inverting, dual noninverting,
and inverting/noninverting configurations
? ESD protection
