LinCMOS? Technology Timer, SE555 Replace TLC555.
SE555
SE555.pdf
SE555.pdfFEATURES
? Timing from Microseconds to Hours
? Astable or Monostable Operation
? Adjustable Duty Cycle
? TTL Compatible Output Can Source or Sink up to 200mA

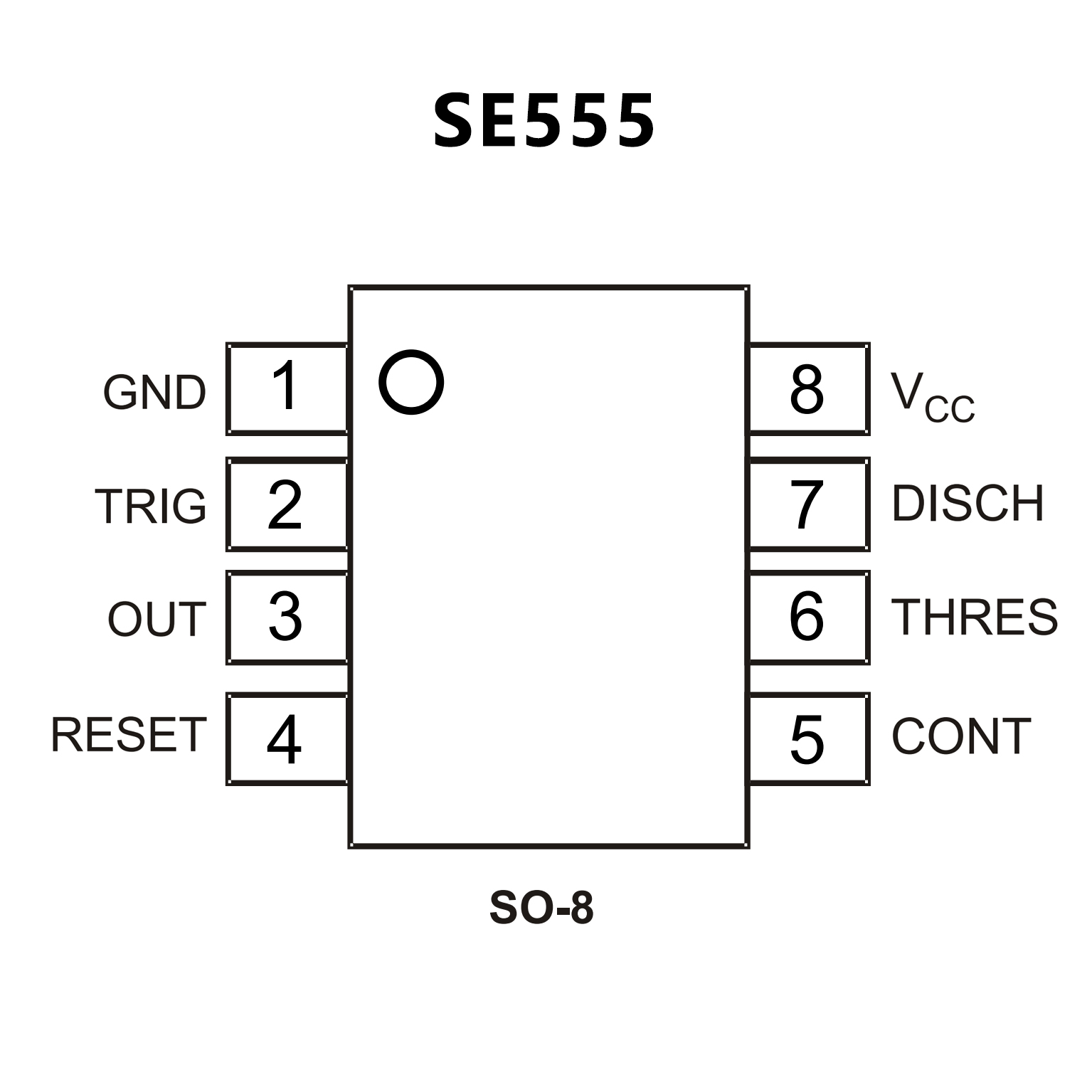

PIN CONFIGUTION
优势替代
FEATURES
? Very low power consumption:
– 1-mW typical at VDD = 5 V
? Capable of operation in astable mode
? CMOS output capable of swinging rail to rail
? High output current capability
– Sink: 100-mA typical
– Source: 10-mA typical
? Output fully compatible with CMOS, TTL, and MOS
? Low supply current reduces spikes during output
transitions
? Single-supply operation from 2 V to 15 V
? Functionally interchangeable with the NE555; has
same pinout
? ESD protection exceeds 1000 V per ANSI/ESDA/
JEDEC JS-001
? Available in Q-temp automotive
– High-reliability automotive applications
– Configuration control and print support
– Qualification to automotive standards

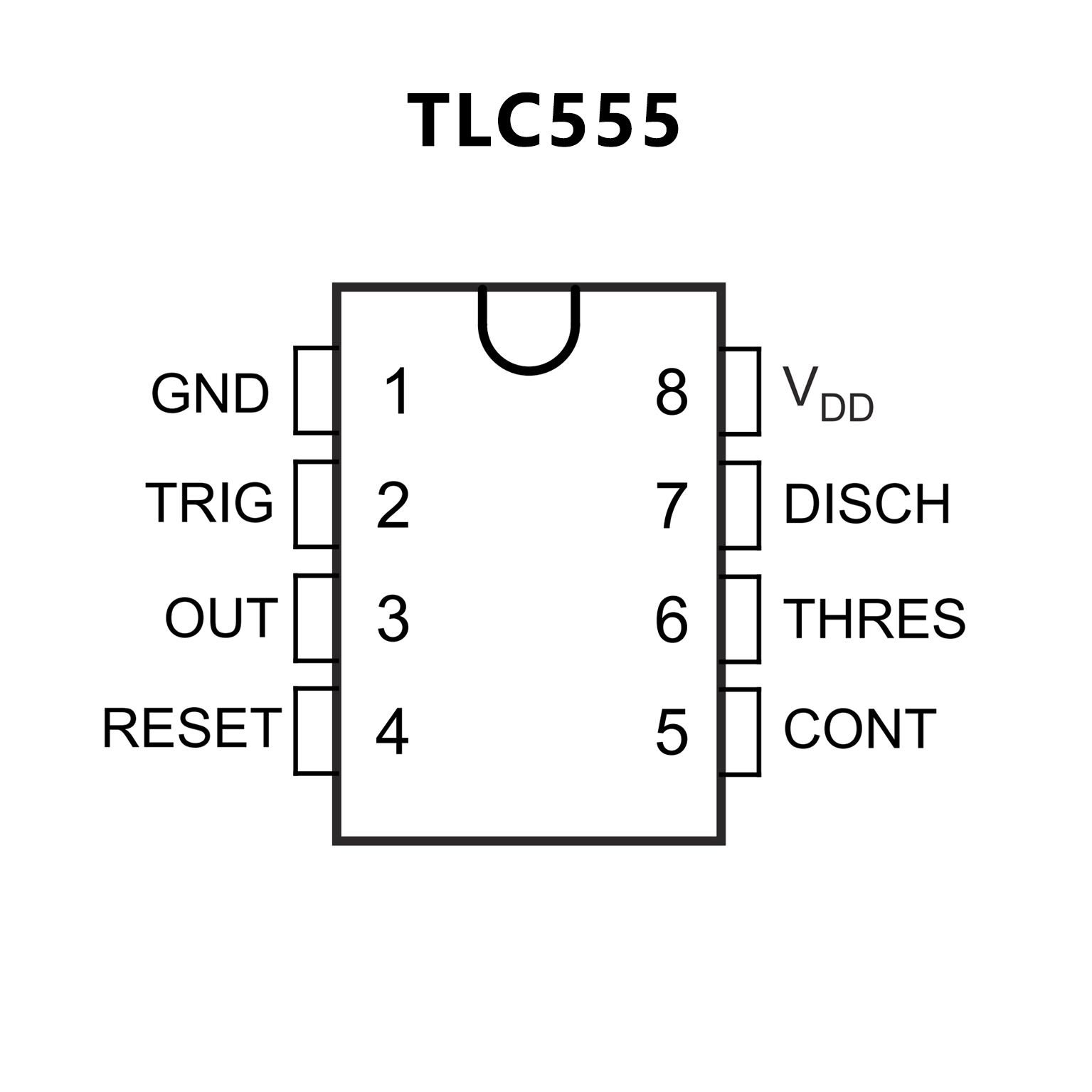

PIN CONFIGUTION
