Low Capacitance ESD Protection Diodefor High Speed Data Line, SGM05FB8D2 P2P ESD7008.
SGM05FB8D2.pdf优势替代
FEATURES
? Integrated 4 Pairs (8 Lines) High Speed Data
? Single Connect, Flow through Routing
? Low Capacitance (0.12 pF Typical, I/O to GND)
? Protection for the Following IEC Standards:
IEC 61000?4?2 Level 4
? UL Flammability Rating of 94 V?0
? SZ Prefix for Automotive and Other Applications
Requiring Unique Site and Control Change
Requirements; AEC?Q101 Qualified and
PPAP Capable
? This is a Pb?Free Device

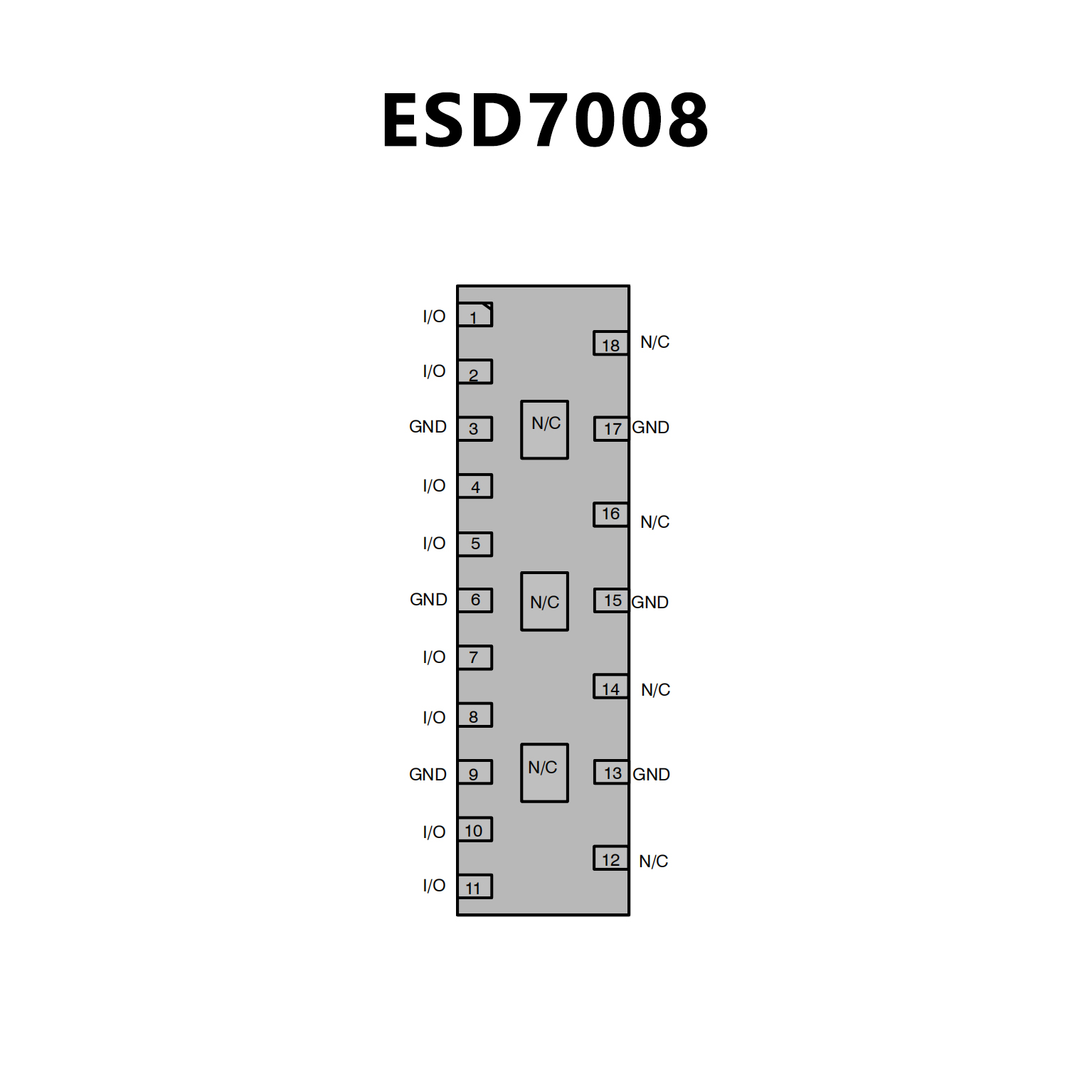

PIN CONFIGUTION
