5V Bidirectional ESD and Surge Protection Device, SGM05HB1AM P2P NSPM3042.
SGM05HB1AM
SGM05HB1AM.pdf
SGM05HB1AM.pdfFEATURES
? Low Clamping Voltage
? Low Leakage
? Small Package: UTDFN-1×0.6-2AL
? Protection for the Following IEC Standards:
IEC 61000-4-2 Level 4: ±30kV Contact Discharge
IEC 61000-4-5 (Lightning) 30A (8/20μs)
? These Devices are Pb-Free, Halogen Free/BFR
Free and are RoHS Compliant

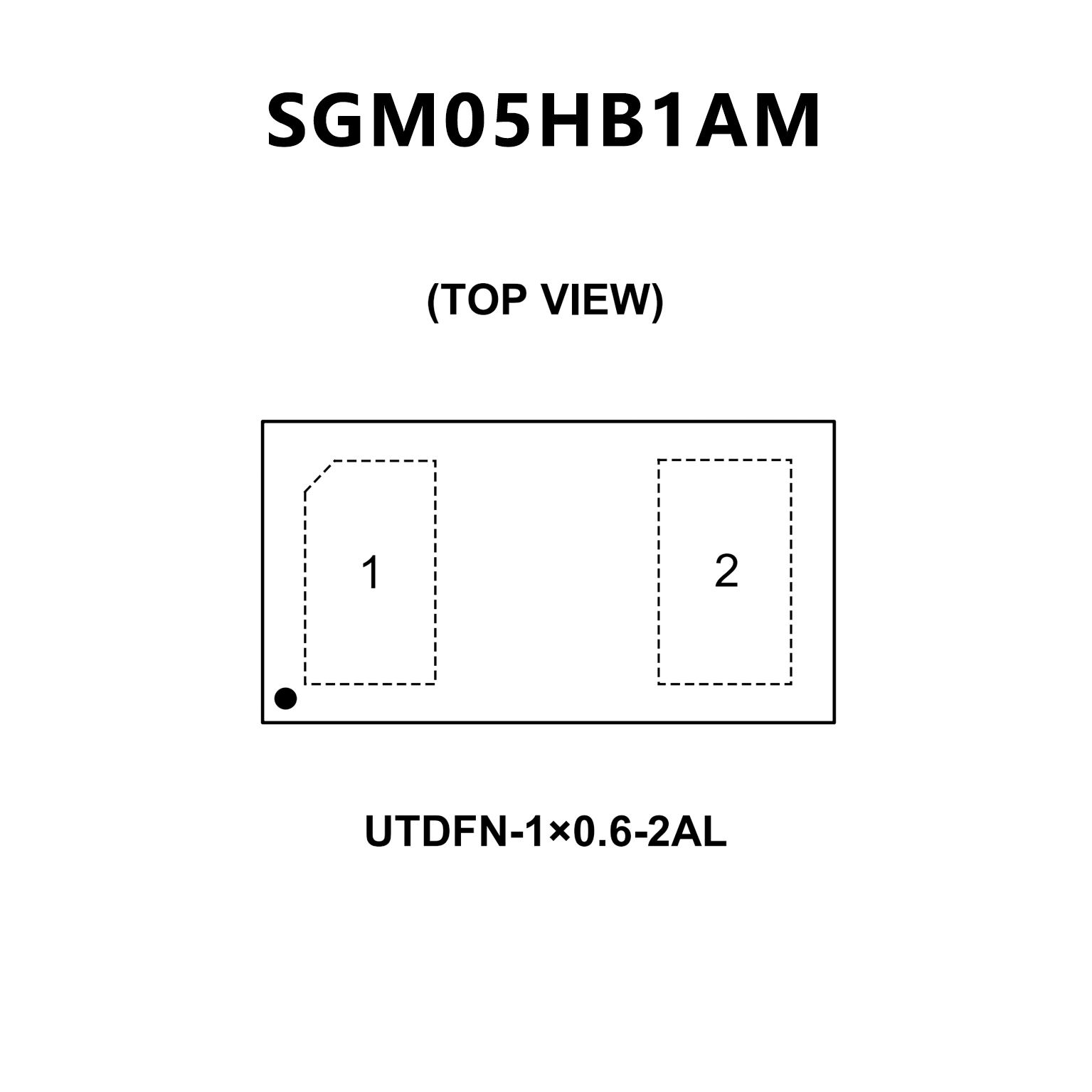

PIN CONFIGUTION
优势替代
FEATURES
? Low Clamping Voltage
? Low Leakage
? Small Body Outline: 1.0 mm x 0.6 mm
? Protection for the following IEC Standards:
IEC61000?4?2 Level 4: ±30 kV Contact Discharge
IEC61000?4?5 (Lightning) 43 A (8/20 s)
? These Devices are Pb?Free, Halogen Free/BFR
Free and are RoHS Compliant

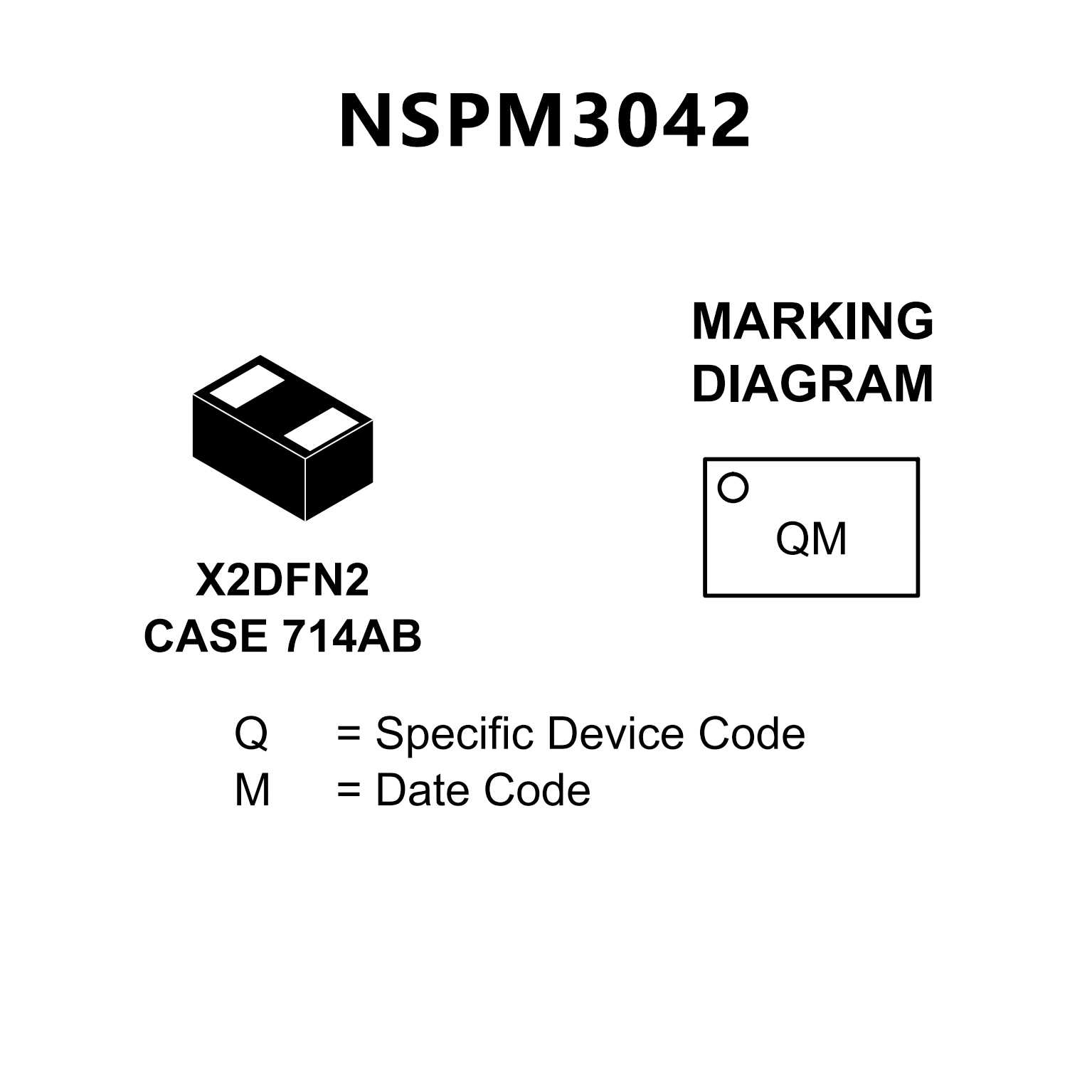

PIN CONFIGUTION
