Low Capacitance 1-Channel ESD Protection, SGM05UB1B3 P2P PESD5V0F1BRLD.
SGM05UB1B3
SGM05UB1B3.pdf
SGM05UB1B3.pdfFEATURES
? High ESD Withstand Voltage:
IEC 61000-4-2: ±30kV (Air)
IEC 61000-4-2: ±30kV (Contact)
? Low Profile Package: XTDFN-0.6×0.3-2L and
UTDFN-1×0.6-2L
? Working Voltage: 5V (MAX)
? Rated Peak Pulse Current: 4.2A
? Channel Input Capacitance: 0.5pF (TYP)

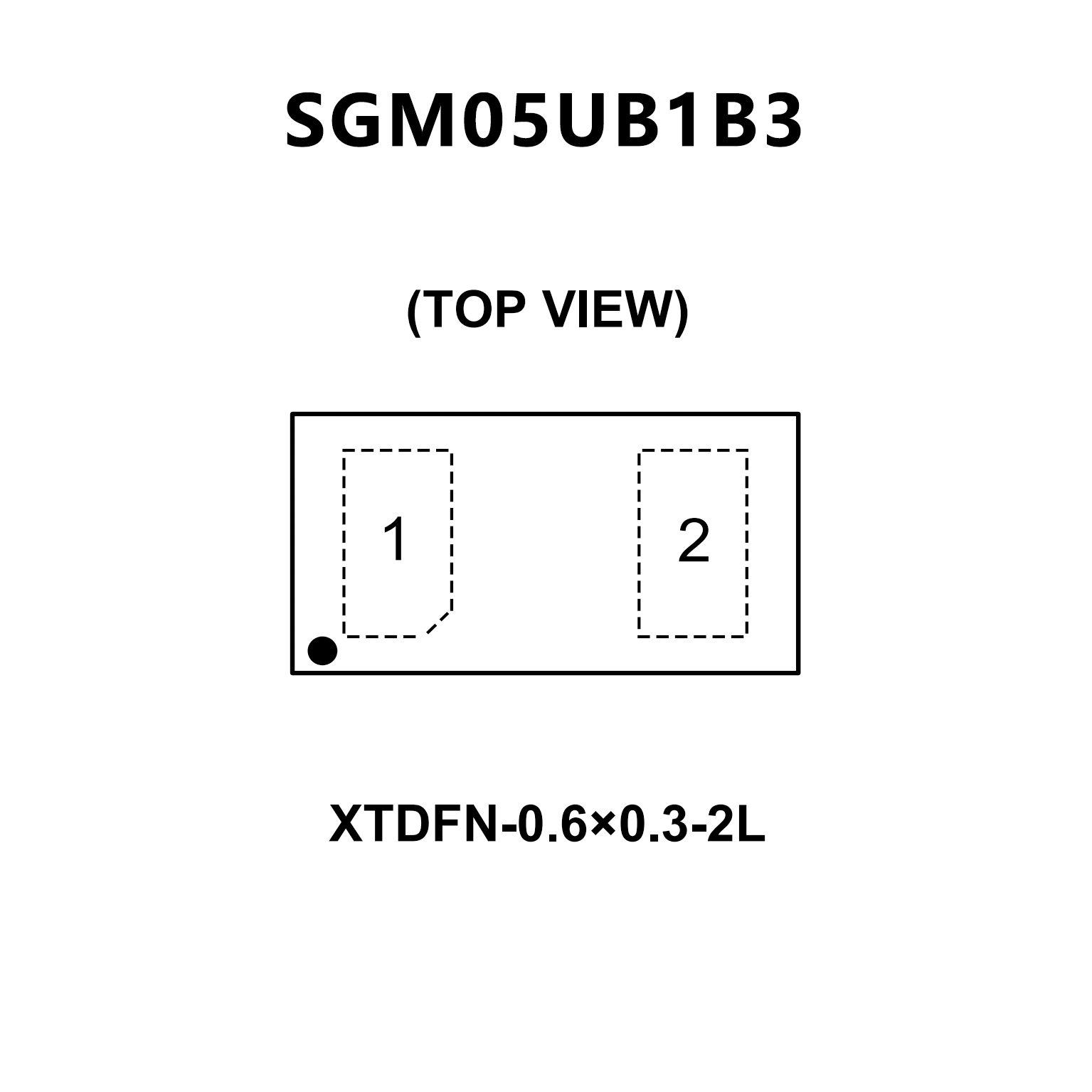

PIN CONFIGUTION
优势替代
FEATURES
? Bidirectional ESD protection of one line
? ESD protection up to 10 kV (contact) and 15 kV (air)
? Femtofarad capacitance: Cd = 400 fF
? IEC 61000-4-2; level 4 (ESD)
? Low ESD clamping voltage: 30 V at 30 ns and ?8 kV
? Package height typ. 0.37 mm
? Very low leakage current: IRM < 1 nA
? AEC-Q101 qualified

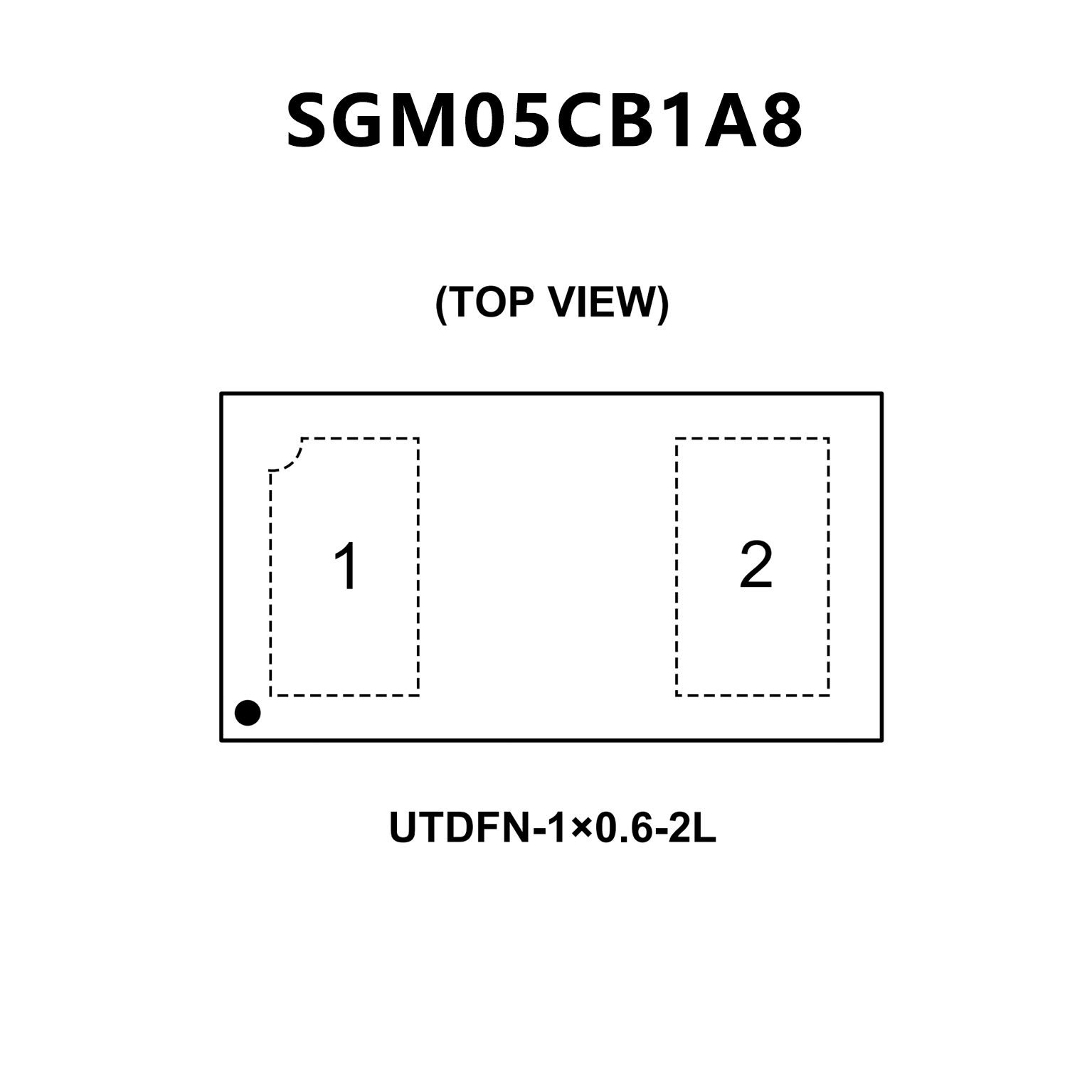

PIN CONFIGUTION
