用于GPS,GLONASS,Galileo和Compass的SiGe:C LNA MMIC,SGM13002C Replace MXDLN16G.
SGM13002C.pdf优势替代
FEATURES
? High Gain: 19dB
? Low noise figure 0.6dB @ 1575.42MHz
? Low operation current 6mA & PD current
less than 1uA
? 3.5mA current under 1.2V power supply
? Single supply voltage range 1.1V to 2.85V
? Small package 1mm×1.5mm×0.75mm
? Low cost BOM
? Lead-Free and RoHS-Compliant

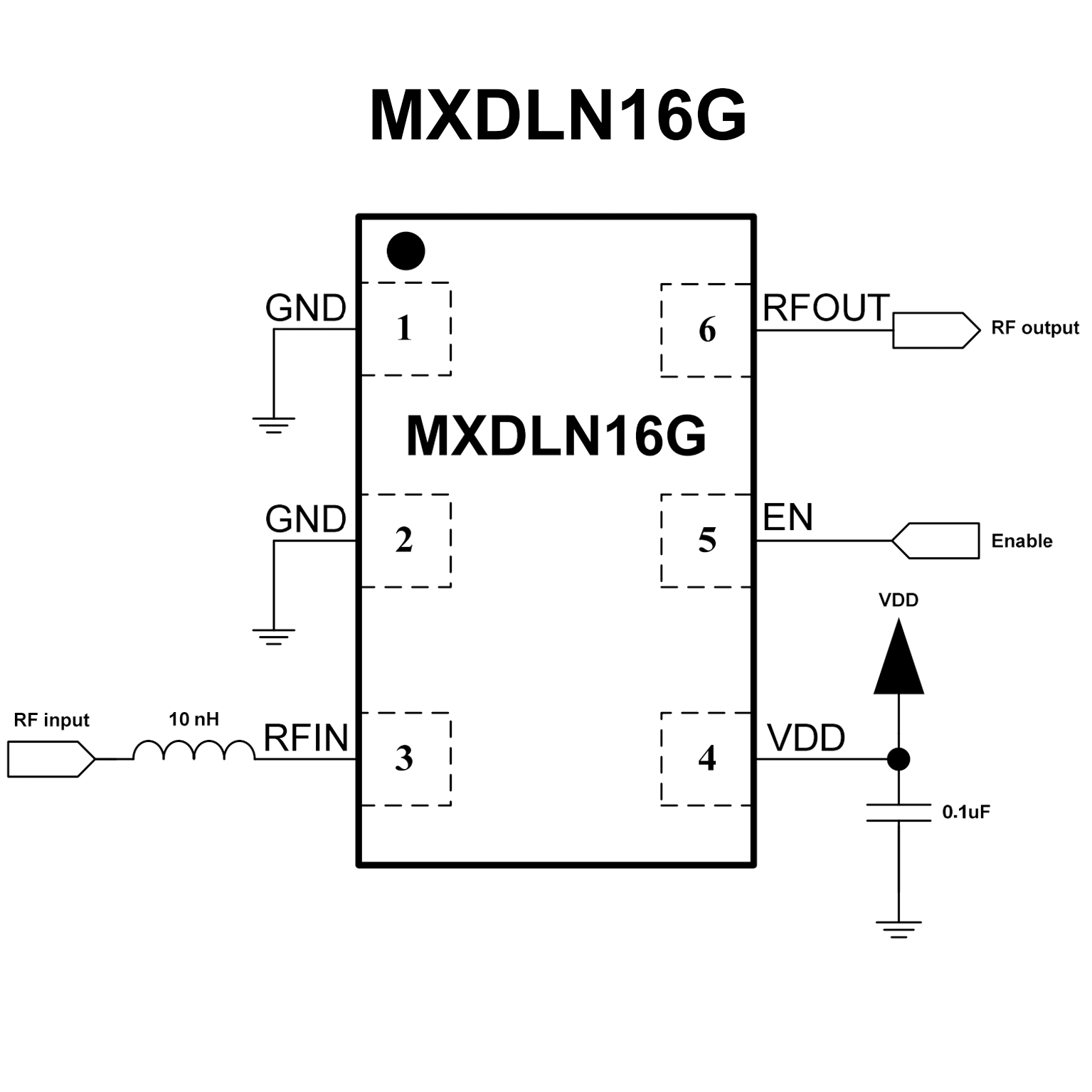

PIN CONFIGUTION
