? Insertion power gain: 13.6 dB

? Low noise figure: 0.75 dB

? Low current consumption: 4.9 mA

? Insertion Loss in bypass mode: -2.2 dB

? Operating frequencies: 716 - 960 MHz

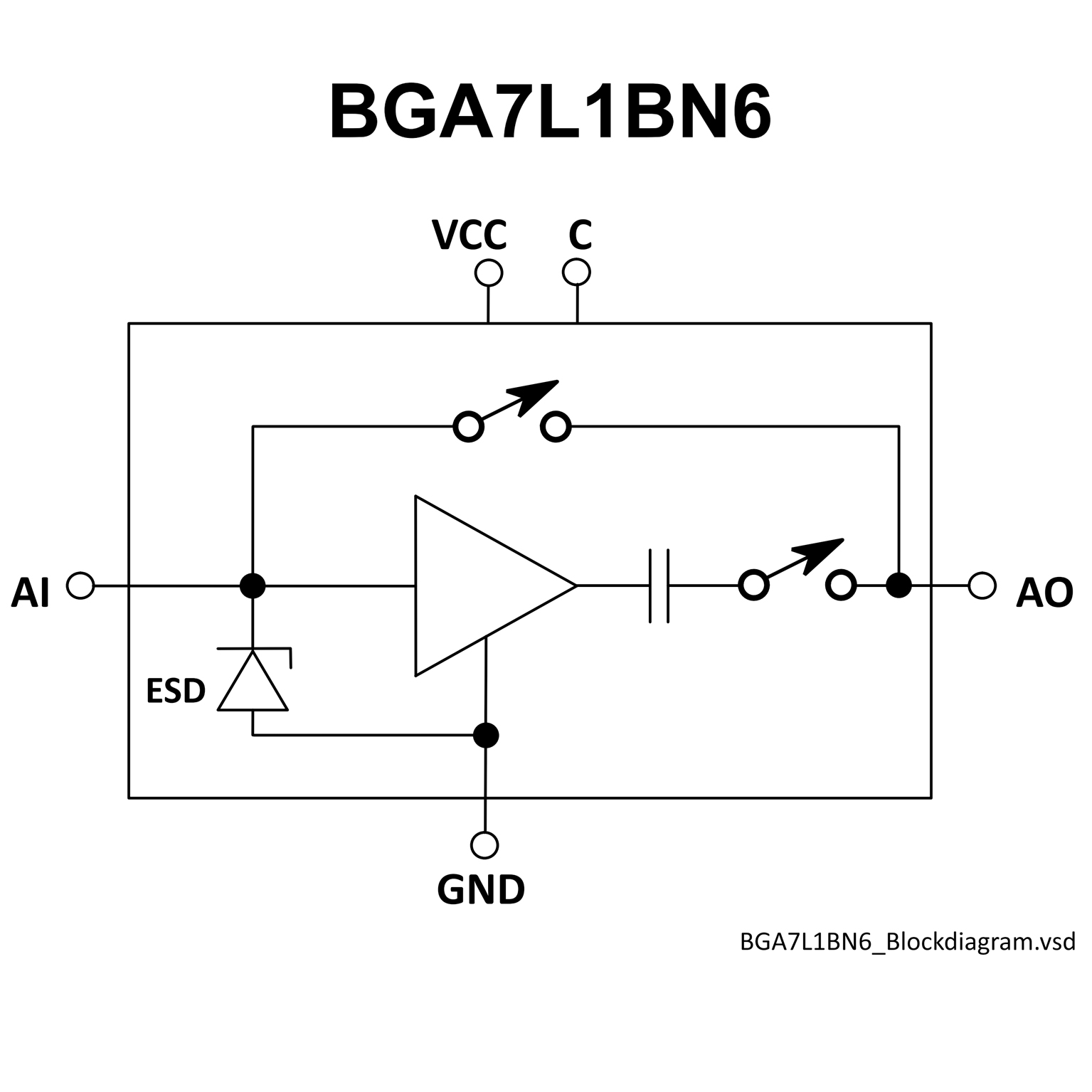

? Two-state control: Bypass- and High gain-Mode

? Supply voltage: 1.5 V to 3.6 V

? Digital on/off switch (1V logic high level)

? Ultra small TSNP-6-2 leadless package

  (footprint: 0.7 x 1.1 mm2)

? B7HF Silicon Germanium technology

? RF output internally matched to 50 Ω

? Only 1 external SMD component necessary

? Pb-free (RoHS compliant) package
