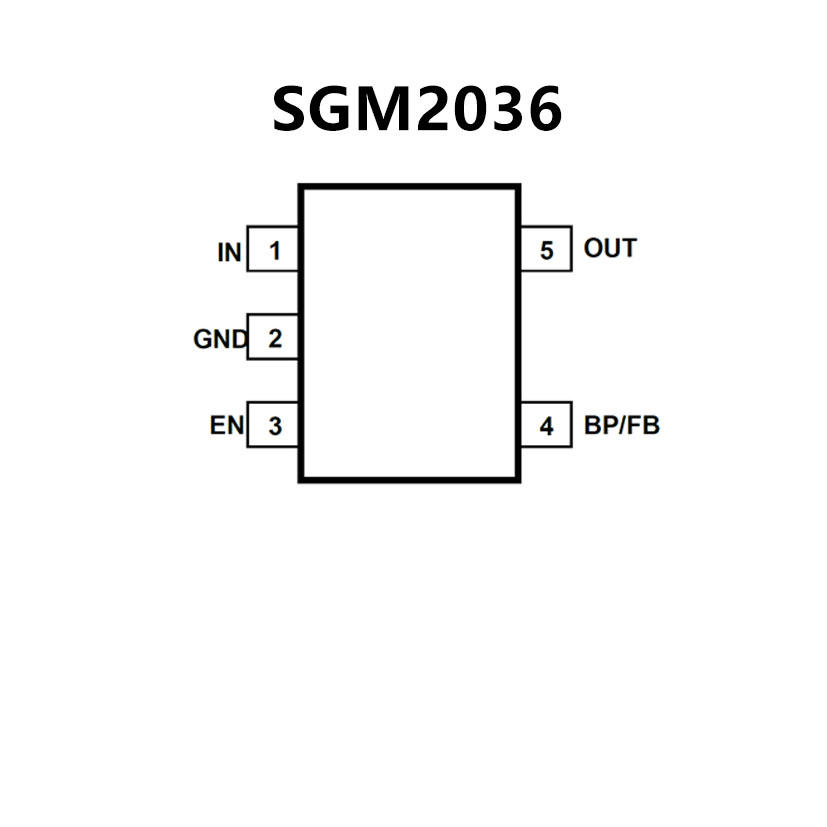

SGM2036-2.8YN5G.pdf? Low Dropout Voltage
? Thermal Overload Protection
? Built-In Fold Back Protection Circuit
? 20μA Low Supply Current
? 10nA Logic-Controlled Shutdown
? 1.6V to 5.5V Input Voltage Range
? Fixed Outputs of 0.8V, 0.9V, 1.0V, 1.05V,
1.1V,1.2V, 1.3V, 1.35V, 1.5V, 1.8V, 1.85V,
2.1V, 2.2V,2.3V, 2.5V, 2.6V, 2.7V, 2.8V,
2.85V, 2.9V, 3.0V, 3.1V, 3.3V, 3.6V,
4.2V, 4.4V and 5.0V
? Adjustable Output from 0.8V to 5.0V
? Short Auto-Discharge Function
? 300mA Output Current
? High Output Voltage Accuracy
? Quick Start-Up Time
? -40℃ to +85℃ Operating Temperature Range
? Available in Green UTDFN-1×1-4L, SOT-23-5
and SC70-5 Packages

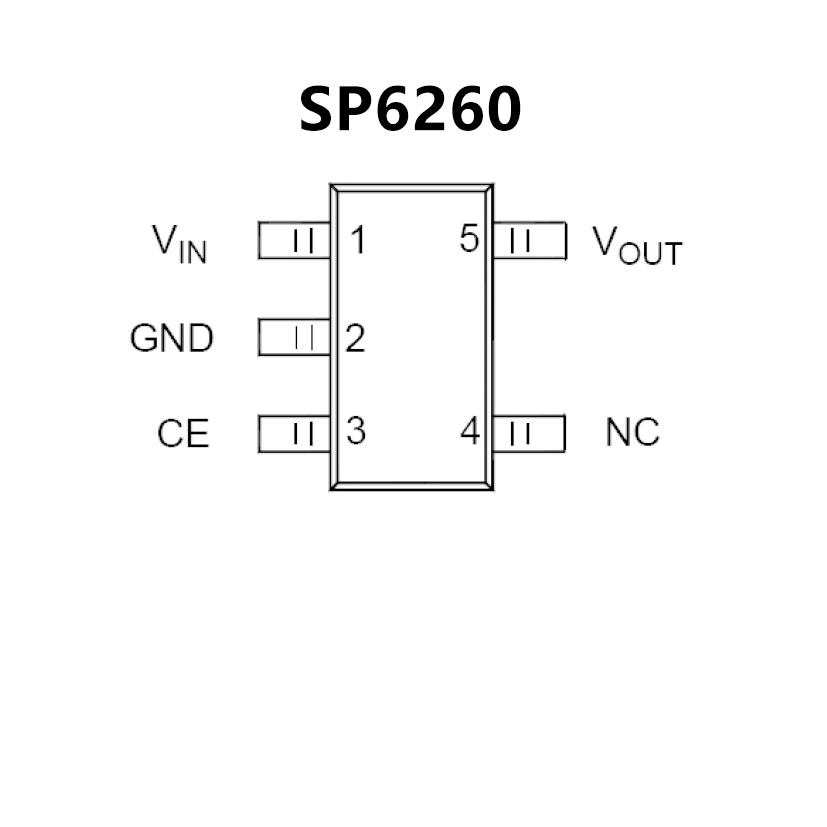

? 200mA Continuous Output Current
150mV Dropout Voltage @
IOUT=100mA(Except 1.2V and 1.5V Version)
1.2V to 3.3V Fixed Output Voltages
±2% Output Voltage Accuracy
? 2V Minimum Input Voltage
? 30μVrms Output Noise (10Hz-100KHz)
? 70dB Power Supply Rejection Ratio
? 4mV Line Regulation (typ)
? 12mV Load Regulation (typ)
? Low Standby Current: 0.1μA Typical
? Low Quiescent Current: 25μA Typical
? Lead Free, RoHS Compliant5-pin SOT-23 Package
