? Operating Input Voltage Range: 1.7V to 7.5V

? Fixed Outputs of 1.2V, 1.5V, 1.8V, 2.5V, 2.8V, 3.0V,

  3.3V, 3.6V, 4.0V, 4.2V and 5.0V

? 250mA Output Current

? High Output Voltage Accuracy: ±1.2% at +25℃

? Ultra-Low Quiescent Current: 1μA (TYP)

? Low Dropout Voltage: 60mV (TYP) at 100mA

? Low Reverse Leakage Current:

  0.4μA (TYP) when VOUT > VIN

? Current Limiting and Thermal Protection

? With Output Automatic Discharge

? -40℃ to +85℃ Operating Temperature Range

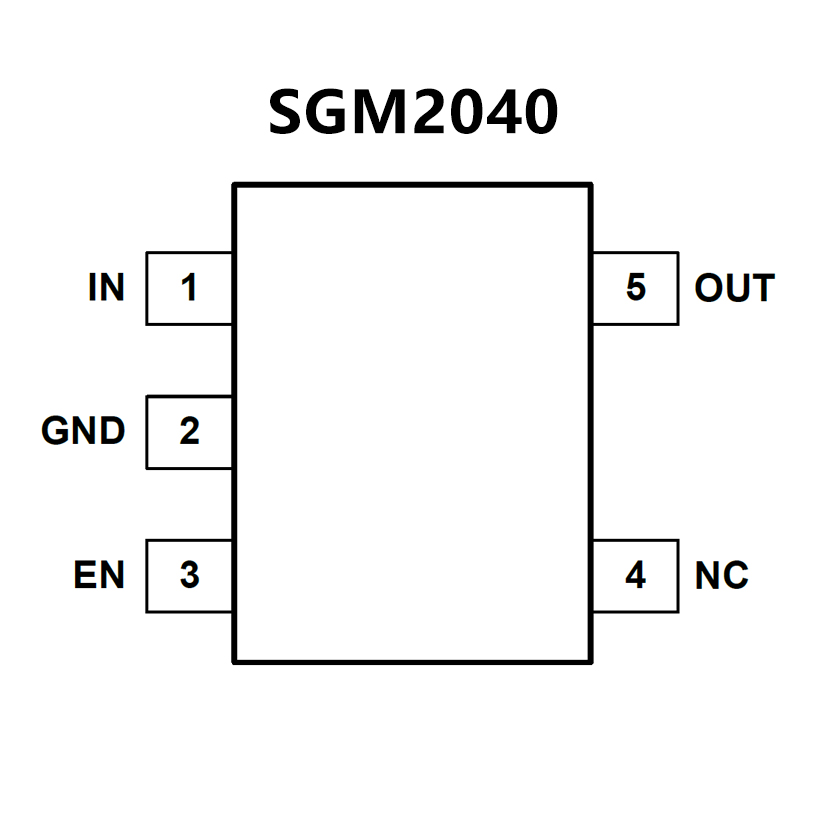

? Available in Green SOT-23-5 and UTDFN-1×1-4AL

  Packages
