? Operating Input Voltage Range: 2.5V to 20V

? Fixed Outputs of 1.2V, 1.8V, 2.5V, 3.3V and 5.0V

? Adjustable Output from 1.2V to 12V

? 300mA Output Current

? Output Voltage Accuracy: ±1% at +25℃

? Quiescent Current: 36μA (TYP)

? Low Dropout: 80mV (TYP) at 100mA, V_OUT = 3.3V

? Low Noise: 48μVRMS (TYP) at V_OUT = 3.3V

? High PSRR: 100dB (TYP) at 1kHz

? Current Limiting and Thermal Protection

? With Output Automatic Discharge

? Stable with Small Case Size Ceramic Capacitors

? Shutdown Supply Current: 0.5μA (TYP)

? -40℃ to +125℃ Operating Temperature Range

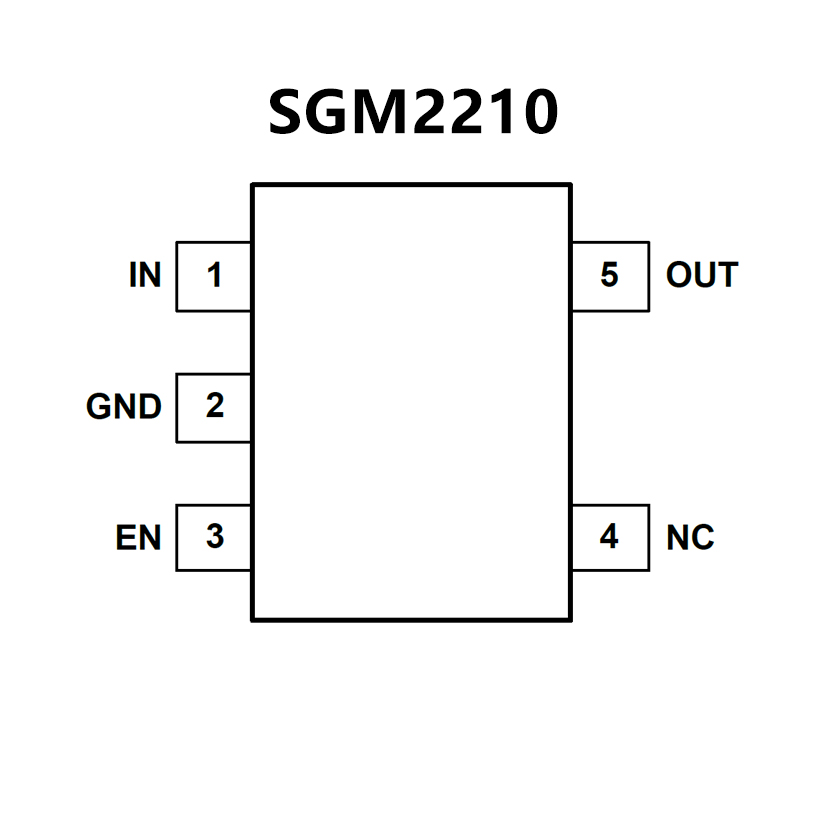

? Available in a Green SOT-23-5 Package
