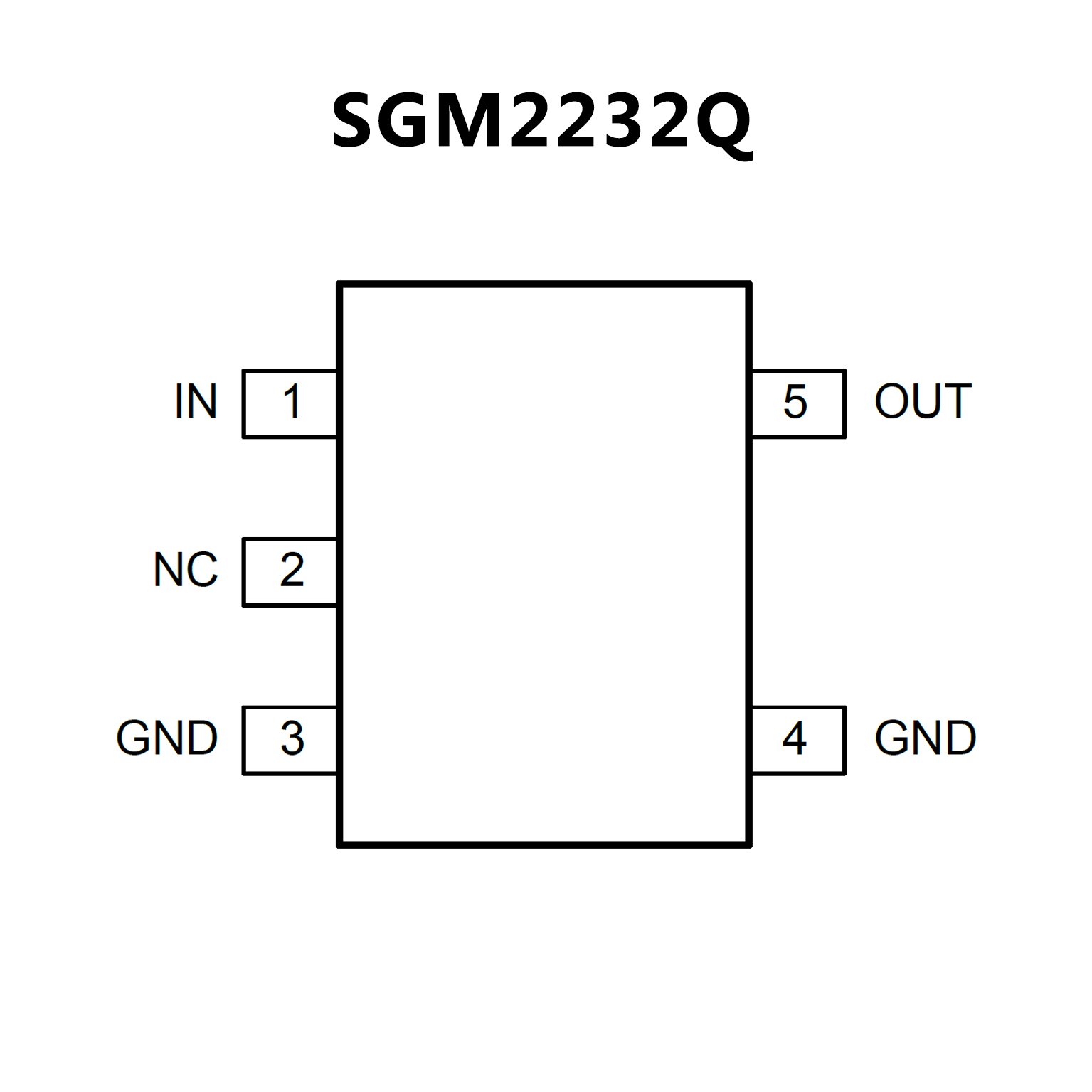

SGM2232Q.pdf? AEC-Q100 Qualified for Automotive Applications Device Temperature Grade 1
TA = -40℃ to +125℃
? Operating Input Voltage Range: 4V to 40V
? Fixed Outputs of 2.5V, 3.3V, 5.0V
? 150mA Output Current
? Low Quiescent Current: 15?A (TYP)
? Low Dropout Voltage:
405mV (TYP) at 100mA, VOUT = 5.0V
? High PSRR: 78dB (TYP) at 1kHz
? Current Limiting and Thermal Protection
? Stable with Low ESR Ceramic Capacitors
? Under-Voltage Lockout (UVLO)
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOT-223-3 and SOT-23-5 Packages
? Qualified for Automotive Applications
Device Temperature Grade 1: –40°C to
125°C Ambient Operating Temperature Range
Device HBM ESD Classification Level 2
Device CDM ESD Classification Level C4B

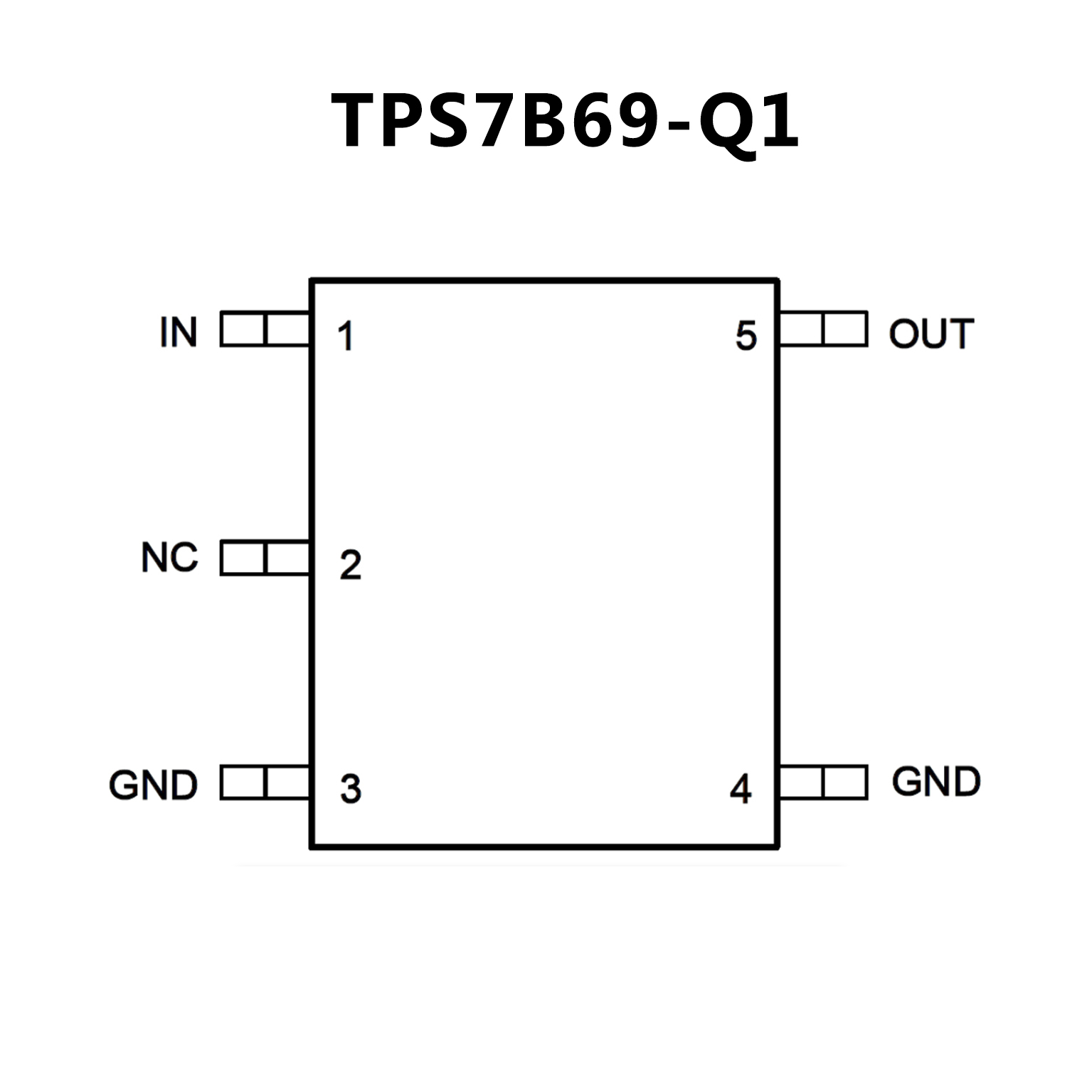

? 4 to 40-V Wide VI Input Voltage Range With up to
45-V Transient
? Maximum Output Current: 150 mA
Low Quiescent Current (IQ):
15 ?A Typical at Light Loads
25 ?A Maximum Under Full Temperature
? 450-mV Typical Low Dropout
Voltage at 100 mA Load Current
? Stable With Low ESR Ceramic
Output Capacitor (2.2 to 100 ?F)
? Fixed 2.5-V, 3.3-V, and 5-V
Output Voltage Options
? Integrated Fault Protection:
? Thermal Shutdown
? Short-Circuit Protection
? Packages:
4-Pin SOT-223 Package
5-Pin SOT-23 Package
