? 100mΩ (TYP) High-side N-Channel MOSFET

? Three Current Limit Levels  SGM2588C/D/I:

  2100 ± 210mA

? Input Voltage Range: 2.5V to 5.5V

? Quiescent Current: 23μA (TYP)

? Shutdown Current: 0.1μA (TYP)

? Soft-Start Function

? Thermal Shutdown Protection

? Under-Voltage Lockout Protection for VIN

? No Reversed Leakage Current (Reverse Blocking)

? Fault Flag (nFAULT) with 13ms Filter Eliminates

  False Assertions

? Automatic Output Discharge in Shutdown Mode

  (SGM2588A/B/C/D/E/F)

? 500kΩ Pull-Down Resistor at EN Pin (SGM2588G/I/K)

? Evaluated to IEC 60950-1, Ed 2, Am1, Annex CC,

  Test Program 1 with CB Report (SGM2588A/C/E/G/I/K)

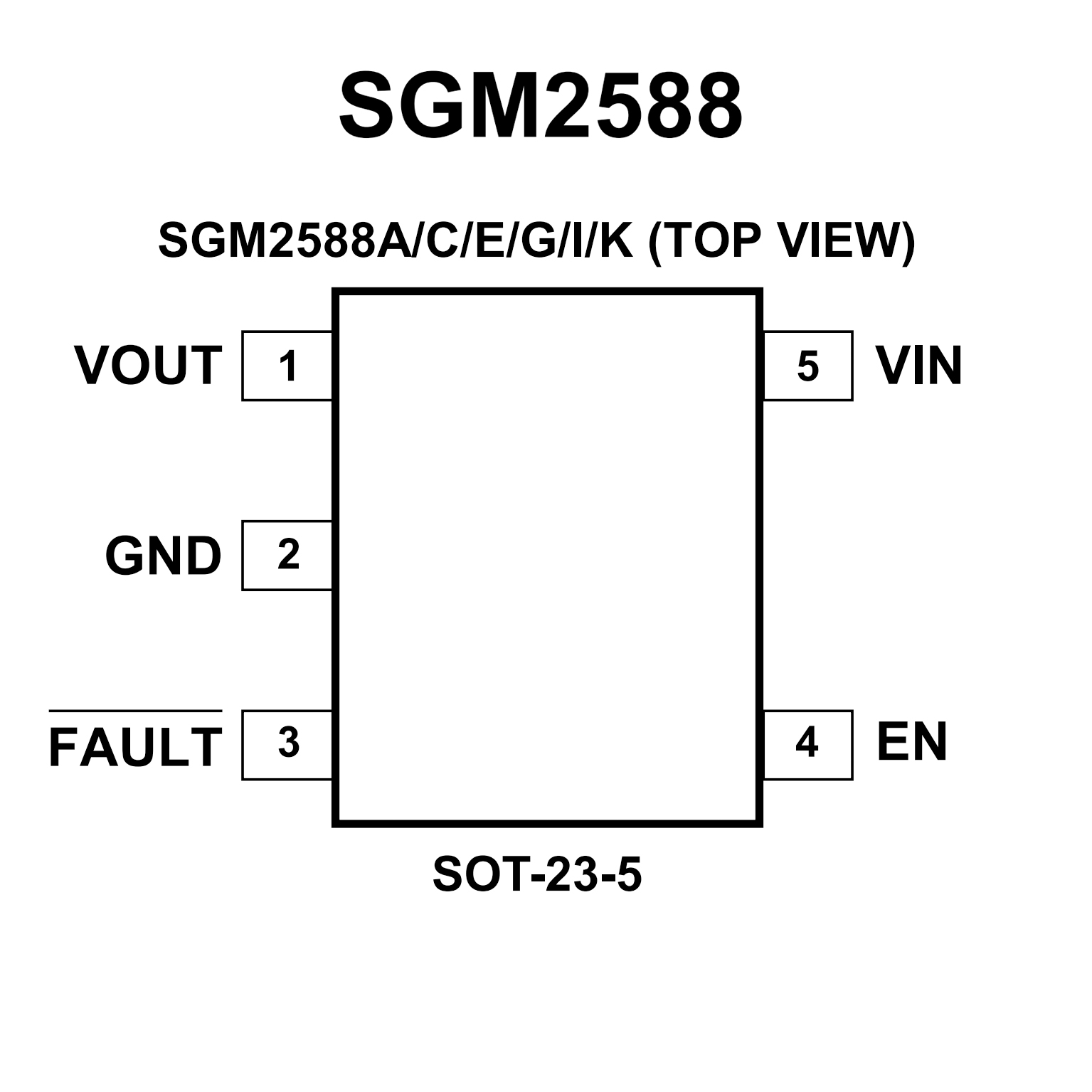

? Available in a Green SOT-23-5 Package
