Micro-Power Precision Shunt Voltage Reference, SGM4040 Replace LM4040.
SGM4040
SGM4040.pdf
SGM4040.pdfFEATURES
? Fixed Output Voltage: 2.5V
? Wide Operating Current
Range:
48μA to 15mA (TYP)
? Output Voltage Accuracy:
SGM4040B: 0.3% (MAX)
SGM4040C: 0.5% (MAX)
? Low Temperature Coefficient: 20ppm/℃ (TYP)
? Low Output Noise: 20μVRMS (TYP)
? Stable without External Capacitors
? Stable with Any Capacitive Load
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOT-23 and SC70-5 Packages

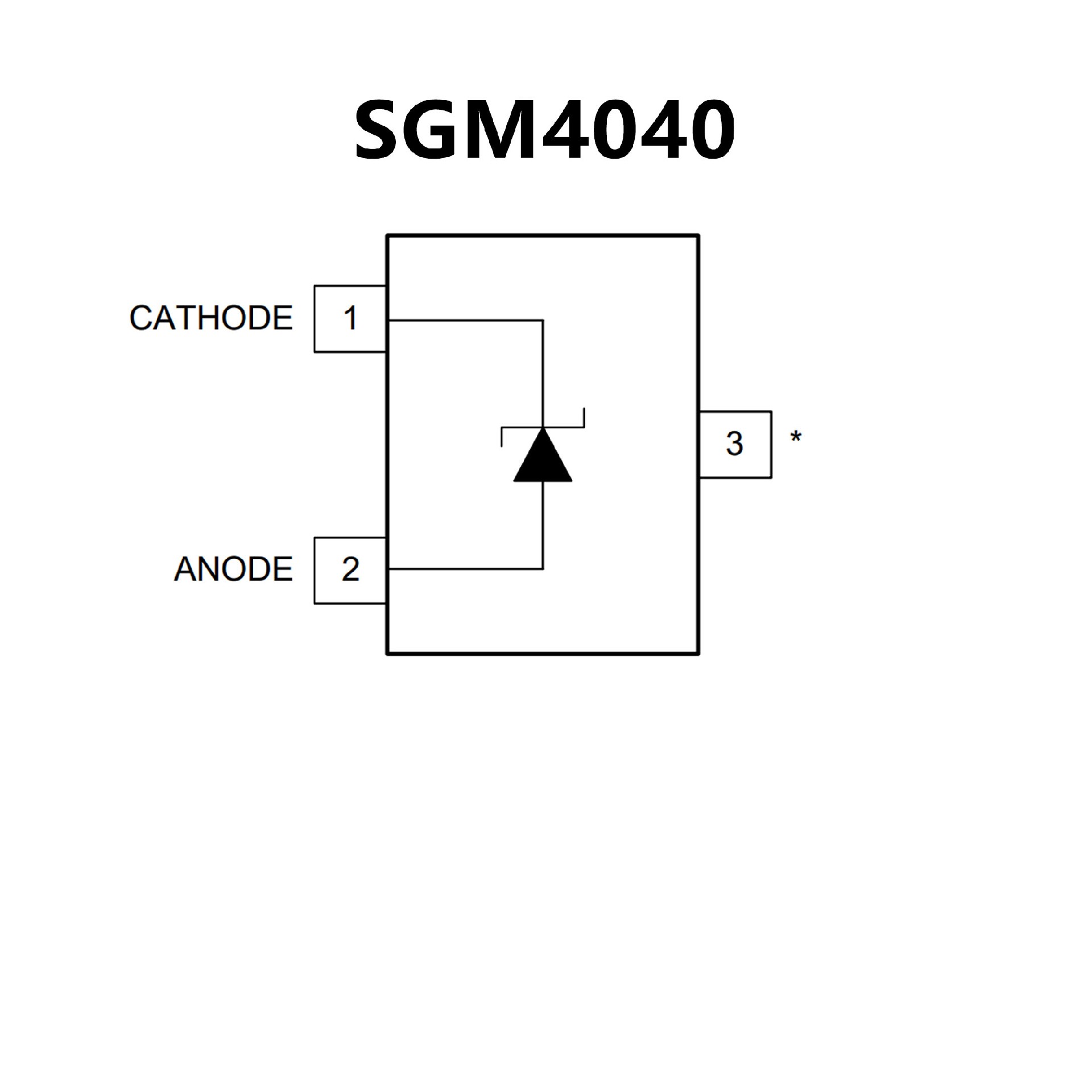

PIN CONFIGUTION
优势替代
FEATURES
? Small SOT-23 Package
? No Output Capacitor Required
? Tolerates Capacitive Loads
? Fixed Reverse-Breakdown Voltages of
1.225V,
2.500V, 4.096V, and 5.000V
? Adjustable Reverse-Breakdown Version
PIN CONFIGUTION
