? Protection of Charger Reverse

  Connection

? Protection of Battery Cell Reverse

  Connection without external load

? Integrate Advanced Power MOSFET

  with Equivalent of 44mΩ RDS(ON)

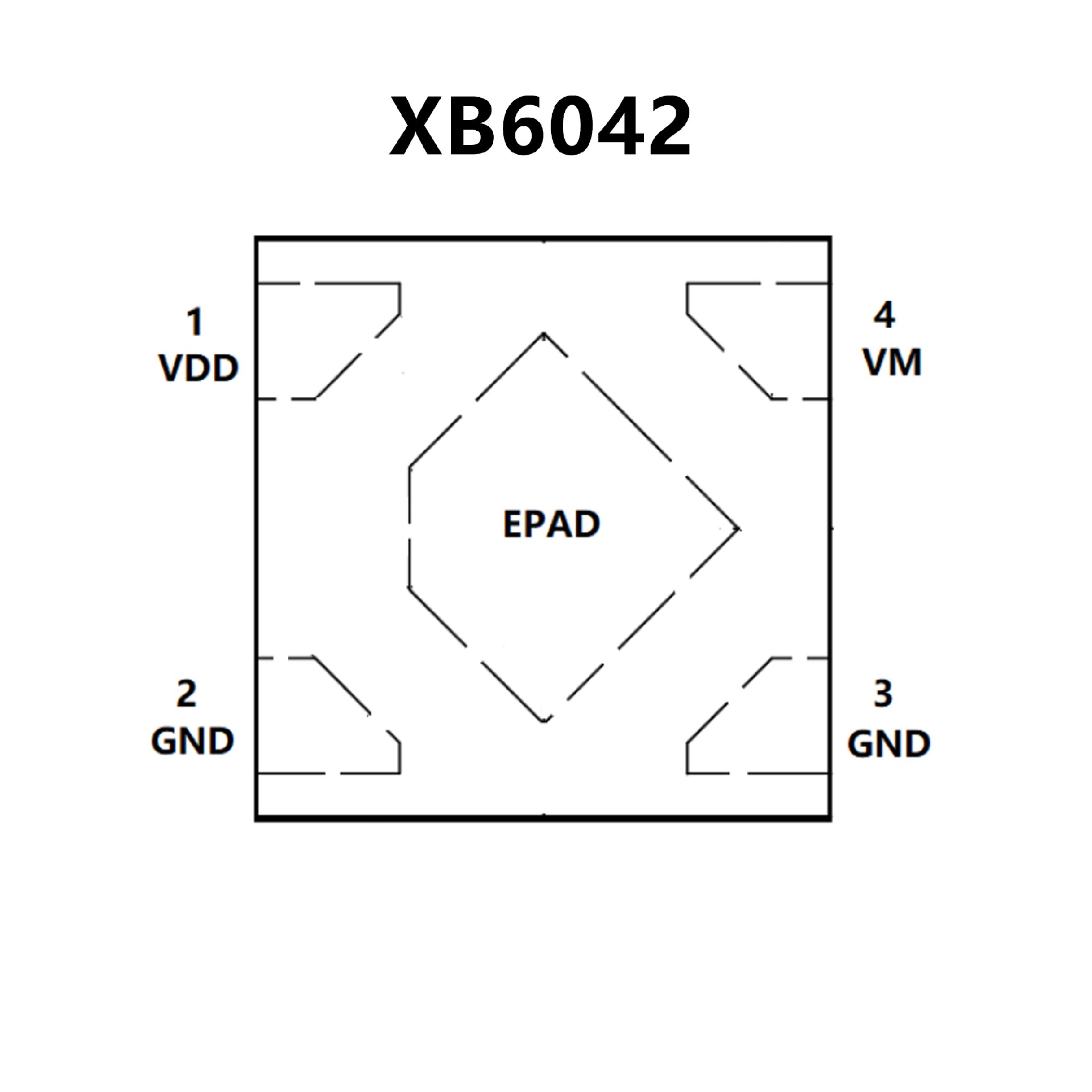

? DFN1X1x0.37-4 Package

? Low Overcharge Release Voltage

? Over-temperature Protection

? Overcharge Current Protection 0.4A

? Two-step Overcurrent Detection:

  -Overdischarge Current 0.4A

  -Load Short Circuiting

? Charger Detection Function

? 0V Battery Charging Function

  - Delay Times are generated inside

? High-accuracy Voltage Detection

? Low Current Consumption

  - Operation Mode:1.5μA Typ.

? RoHS Compliant and Lead (Pb) Free
