Precision Programmable Reference,SGM432BXK3G Replace uPC1093.
SGM432BXK3G
SGM432BXK3G.pdf
SGM432BXK3G.pdfFEATURES
? Reference Voltage Tolerance at +25℃:
SGM432: 1% (Standard Grade)
SGM432B: 0.5% (B Grade)
? Adjustable Output Voltage: VREF to 36V
? High Stability under Capacitive Load
? Typical Temperature Drift: 5mV
? Low Output Noise
? Typical Output Impedance: 0.1Ω
? Sink-Current Capability: 1mA to 100mA
? Operating Junction Temperature Range:
-40℃ to +125℃
? Available in Green SOT-89-3,
SOT-23 and SOT-23-5 Packages

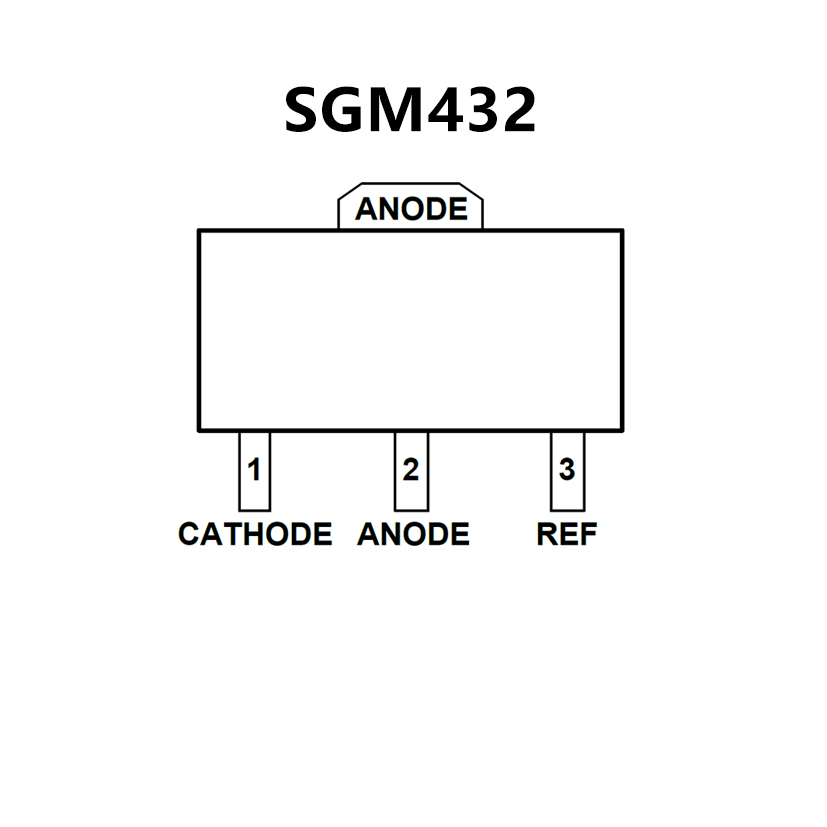

PIN CONFIGUTION
优势替代
FEATURES
? High Accuracy
VREF = 2.495 V ± 2 %
? Low Temperature Coefficient
DVREF/DT ? 100 ppm/°C
? Adjustable Output Voltage by two
External Resistors VREF ? VO ? 36 V
? Low Dynamic Impedance | ZKA | = 0.1 WTYP.

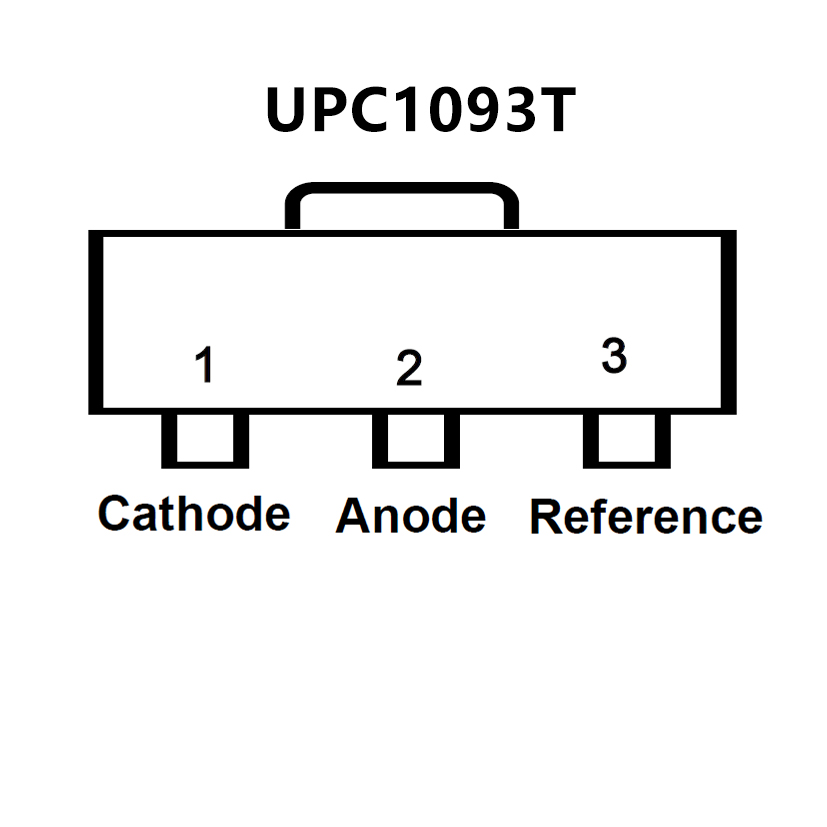

PIN CONFIGUTION
