Pin Configuration and Functions,SGM457 Replace TMP112AIDRL.
SGM457
SGM457.pdf
SGM457.pdfFEATURES
? 1.6Vto 5.5V Supply Voltage Range
? Temperature Accuracy:
– 40℃to +125℃: ±2℃(MAX)
? Operating Supply Current:14μA (TYP)
? ShutdownMode Current: 0.5μA (TYP)
? Resolution: 12 Bits
? Serial Control Bus is Compatible withTwo-Wire,I2C
? AvailableinaGreen SOT-563-6Package

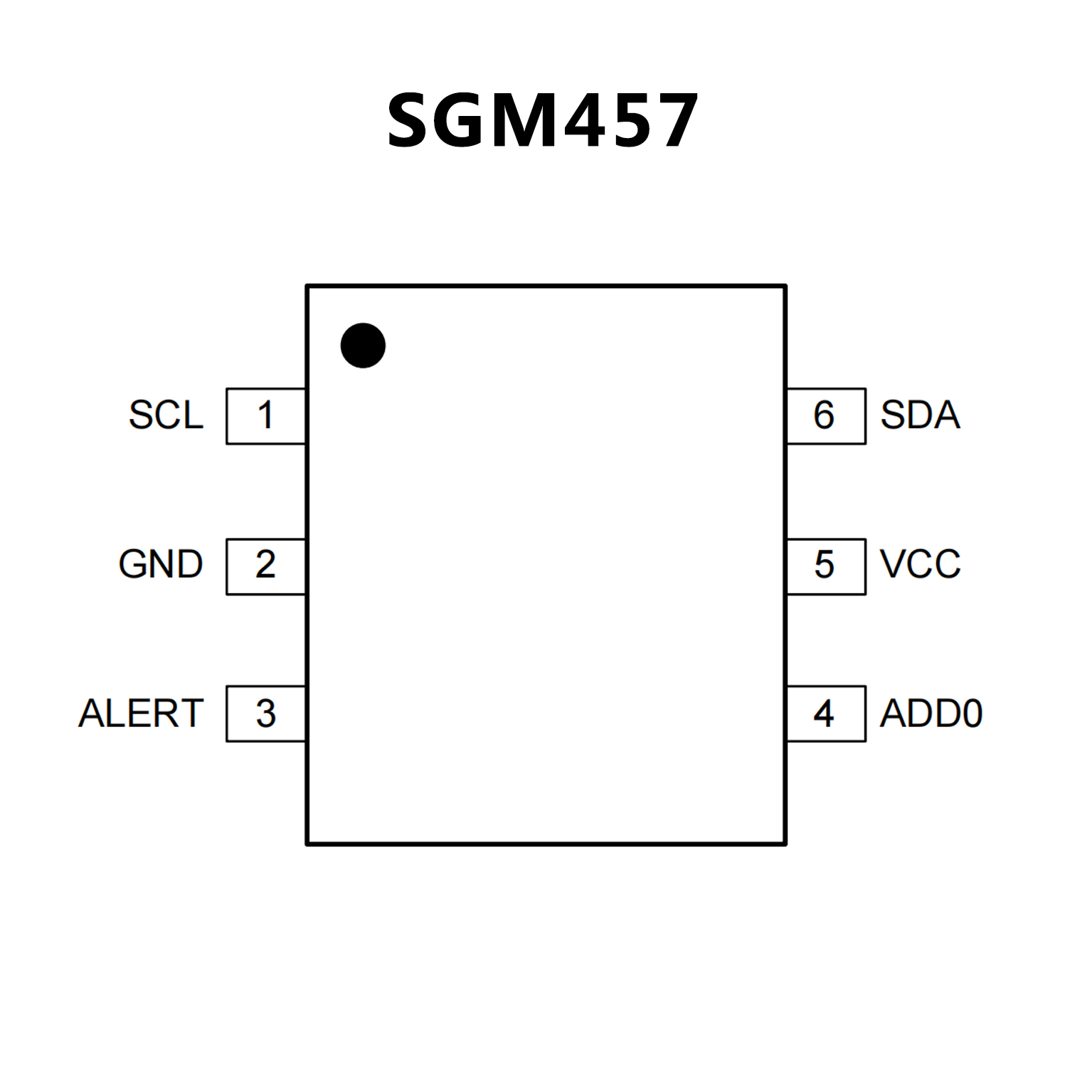

PIN CONFIGUTION
优势替代
FEATURES
? Temperature range: -55°C ~ +150°C
? Temperature accuracy: ±0.5°C (-40°C ~ +125°C)
? Supply voltage range: 1.4V ~ 5.5V
? Low quiescent current:
Normal operation: ≤10μA (4Hz)
Shutdown mode: ≤1μA
? Resolution: 12bits, 0.0625°C
? Digital output: SMBusTM and I2C interface
compatibility

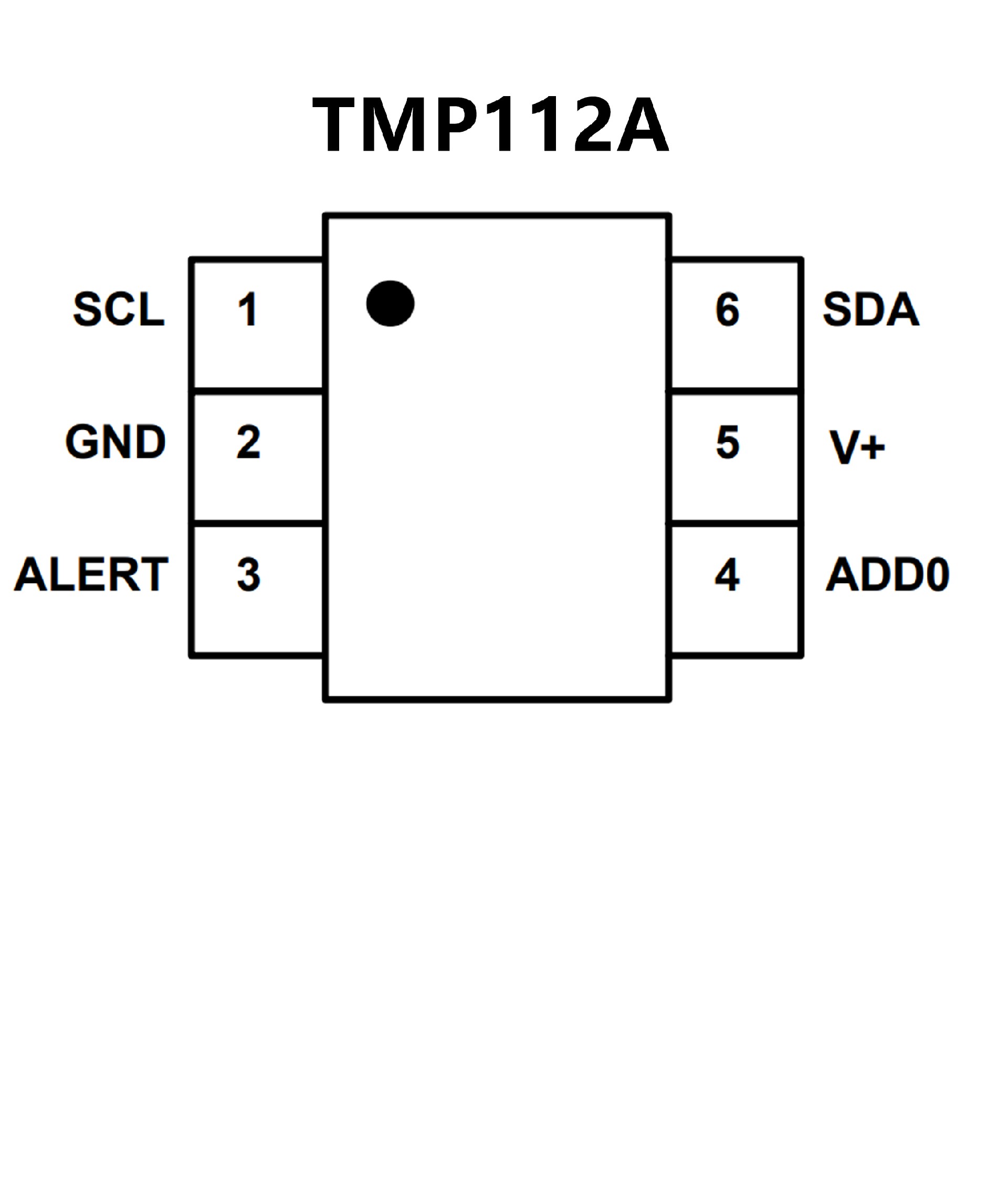

PIN CONFIGUTION
