High Voltage, CMOS Analog Multiplexer, SGM4582YTS16G/TR Replace 74HCT4052D.
SGM4582YTS16
SGM4582YTS16.pdf
SGM4582YTS16.pdfFEATURES
? Guaranteed On-Resistance 51Ω with
±5V Supplies 84Ω with Single +5V Supply
? Guaranteed On-Resistance Match Between Channels
? Low Off-Leakage Current 10nA at +25℃
? Low On-Leakage Current 10nA at +25℃
? ±1.8V to ±5.5V Dual-Supply Operation
+3.6V to +11V Single-Supply Operation
? TTL/CMOS-Logic Compatible
? Low Distortion: 0.08%
(RL = 600Ω, f = 20Hz to 20kHz)
? High Off-Isolation: -66dB
(RL = 50Ω, f = 1MHz)
? Low Crosstalk: -100dB
(RL = 50Ω, f = 1MHz)
? -40℃ to +85℃ Operating Temperature Range
? Available in Green SOIC-16, SSOP-16,
TSSOP-16 and TQFN-3×3-16L Packages

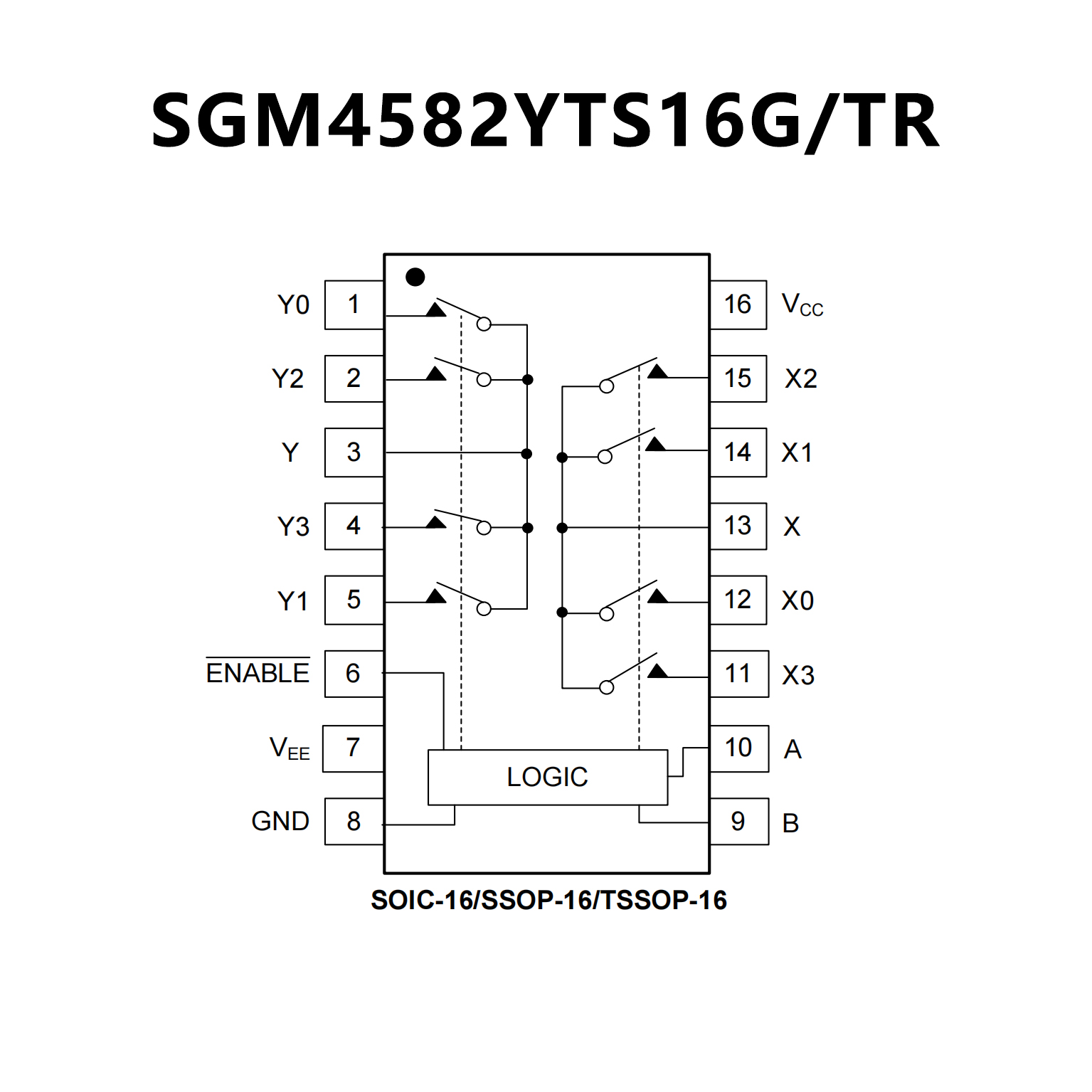

PIN CONFIGUTION
优势替代
FEATURES
? Wide analog input voltage range from -5 V to +5 V
? CMOS low power dissipation
? High noise immunity
? Latch-up performance exceeds 100 mA per JESD 78
Class II Level B
? Low ON resistance:
? 80 Ω (typical) at VCC - VEE = 4.5 V
? 70 Ω (typical) at VCC - VEE = 6.0 V
? 60 Ω (typical) at VCC - VEE = 9.0 V
? Logic level translation: to enable 5 V
logic to communicate with ±5 V analog signals
? Typical ‘break before make’ built-in
? Complies with JEDEC standards:
? JESD8C (2.7 V to 3.6 V)
? JESD7A (2.0 V to 6.0 V)
? Input levels:
? For 74HC4052: CMOS level
? For 74HCT4052: TTL level
? ESD protection:
? HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V
? CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
? Specified from -40 °C to +85 °C and -40 °C to +125 °C

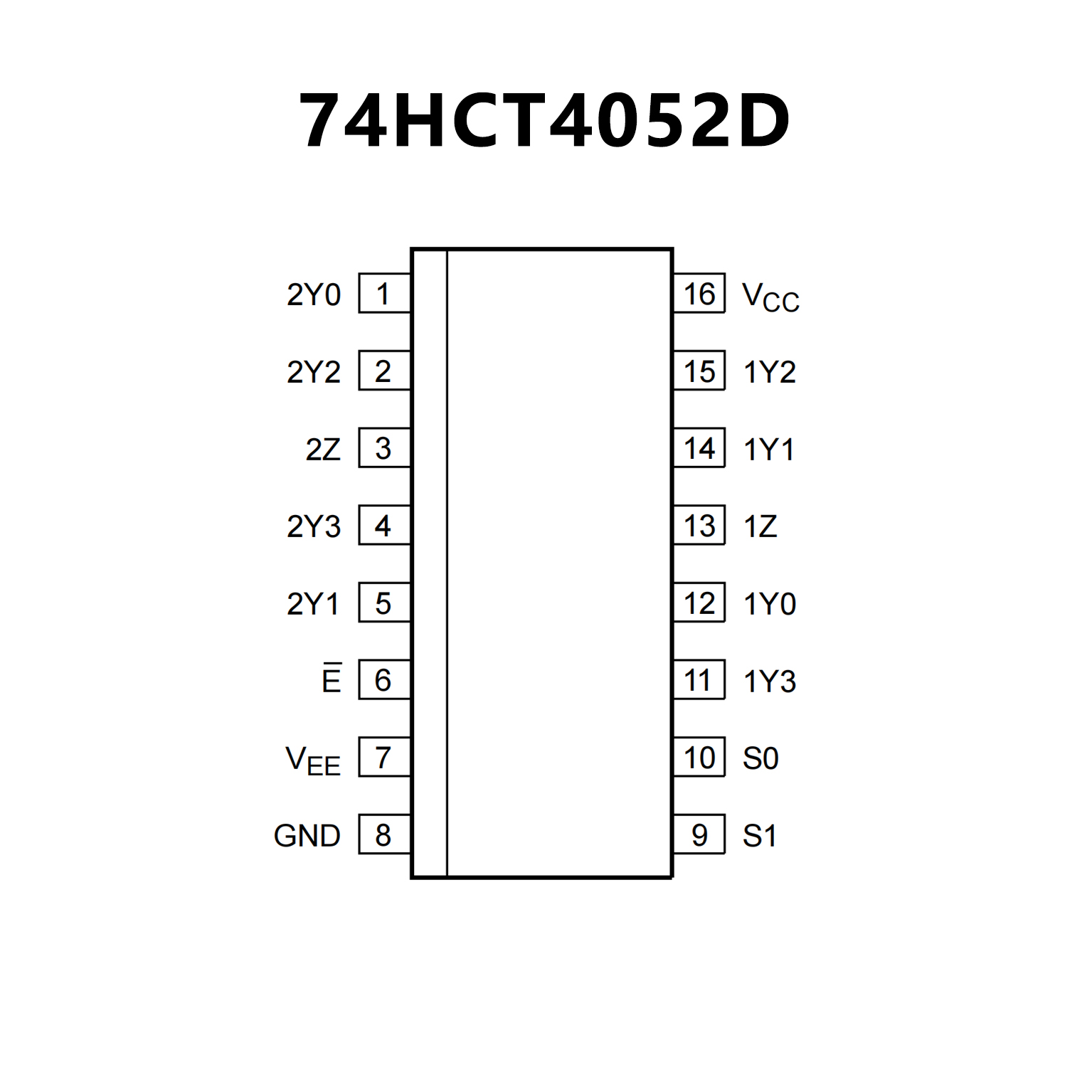

PIN CONFIGUTION
