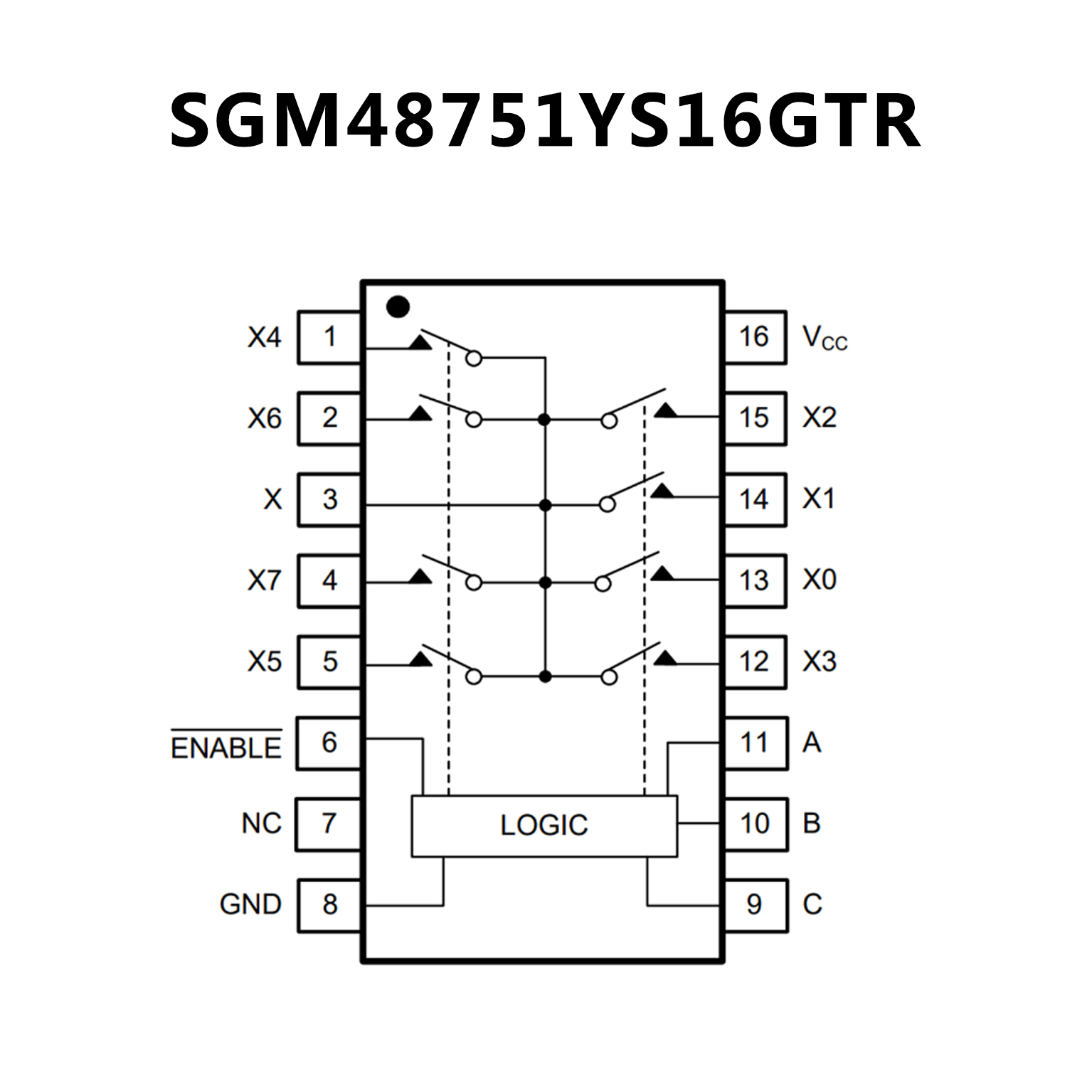

SGM48751.pdf? Guaranteed On-Resistance 48Ω (TYP) with 5V Supply
? Guaranteed On-Resistance Match Between
Channels
? Low Off-Leakage Current 1nA (TYP) at +25℃
? Low On-Leakage Current 1nA (TYP) at +25℃
? Optimized Rise Time and Fall Time of A, B, C
Control Pins to Reduce Clock Feedthrough Effect
? 2.5V to 5.5V Single Supply Operation
? 1.8V Logic Compatible
? High Off-Isolation: -83dB (RL = 50Ω, f = 1MHz)
? -40℃ to +85℃ Operating Temperature Range
? Available in Green SOIC-16, SSOP-16, TSSOP-16
and TQFN-3×3-16L Packages

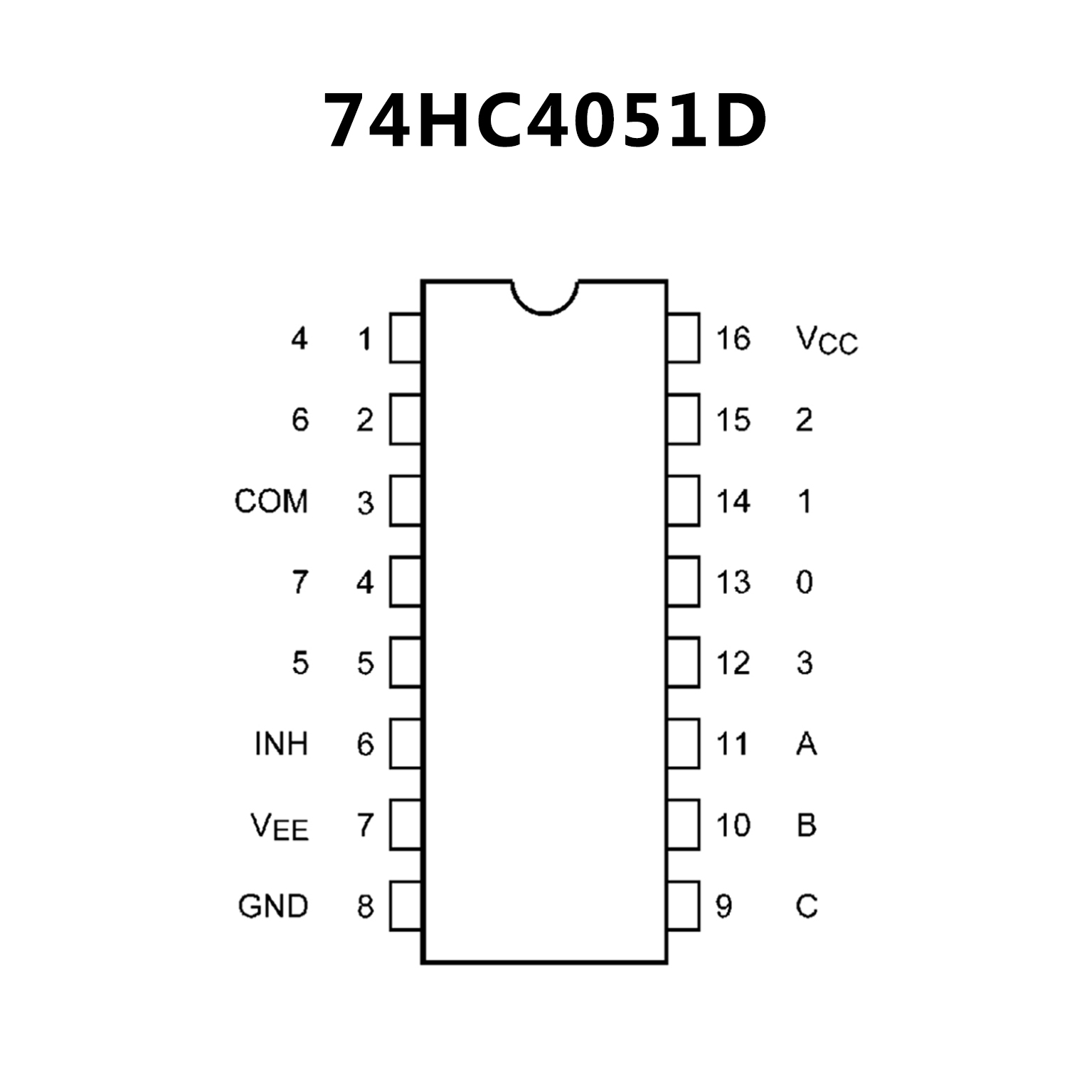

? Wide operating temperature range:
Topr = -40 to 125℃(Note 1)
? Low power dissipation: ICC = 4.0
?A (max) (VCC = 6.0V, VEE = GND, Ta = 25℃ )
? Low ON-resistance: RON = 50? (typ.) at VCC - VEE = 9V
? High degree of linearity:
THD = 0.02 % (typ.) at VCC - VEE = 9V
