? Low Power Consumption (0.5mW/CH)

? Integrating 8 Channels of 12-Bit DAC

? Built-In Rail-to-Rail Output Amplifier:

  Sink/Source Current with Short Current Control

? Daisy-Chain Capability

? Simultaneous 8 Channels Output Updating

? Individual Channel Power-Down Capability

  0.6μA I_CC for Power-Down Mode

? 0.1% Gain Error for All Channels

? Interface Sees No Quiescent Current when VBUS < V_CC

? Power-On Reset: Output Reset to GND

? Serial Data Input: 40MHz Operation

? TTL Compatible Input Logic Level

? Wide Power Supply Range: 2.7V to 5.5V

? Dual Reference Voltages with Range of 0.5V to V_CC

? -40℃ to +125℃ Operating Temperature Range

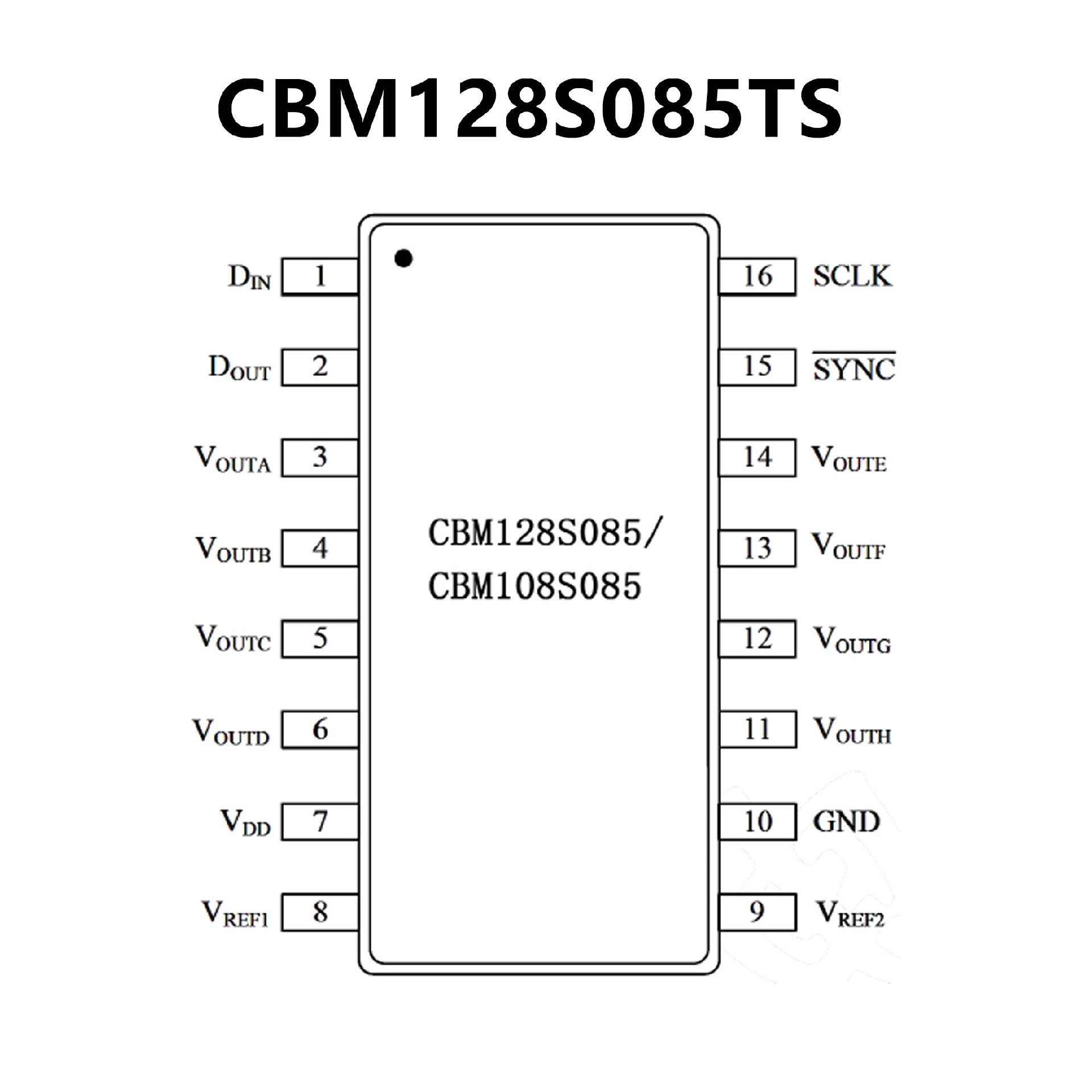

? Available in Green TSSOP-16 and TQFN-3×3-16L
Packages
