Ultra-Small, Low-Power, 16-Bit Analog-to-Digital Converter with Internal, SGM58031 P2P ADS1118.
SGM58031
SGM58031.pdf
SGM58031.pdfFEATURES
? Wide Power Supply Range: 3V to 5.5V
- I2C Bus Voltage: 3V to 5.5V
? Low Current Consumption:
- Continuous Mode: 255μA (TYP)
- Power-Down Mode: 0.8μA (TYP)
? Programmable Date Rate: 6.25SPS to 960SPS
? Internal Low-Drift Voltage Reference
? Internal Oscillator
? Internal PGA
? I2C Interface: Pin-Selectable Addresses
? Four Single-Ended or Two Differential Inputs
? Programmable Comparator
? Available in Green MSOP-10 and TDFN-3×3-10L Packages

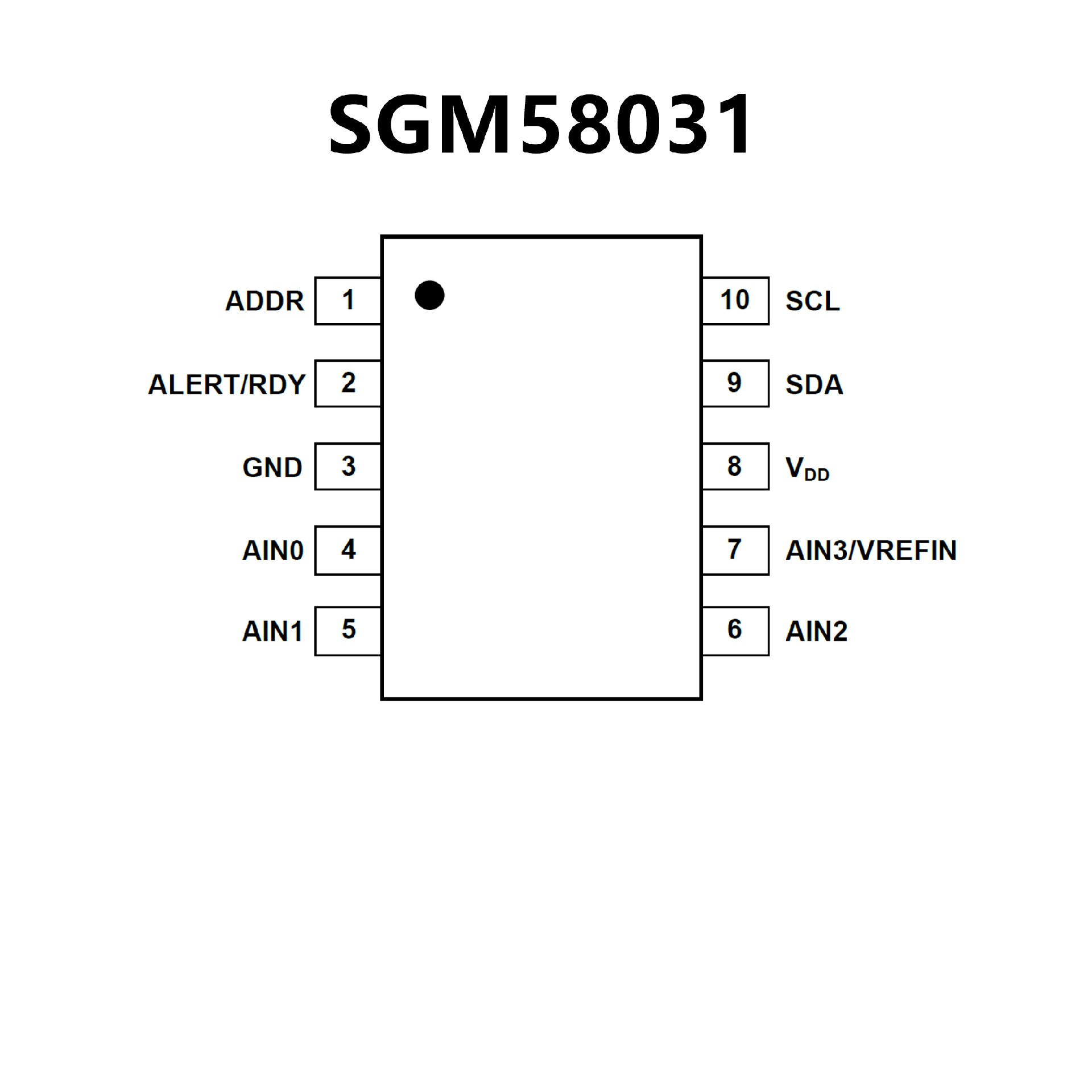

PIN CONFIGUTION
优势替代
FEATURES
? Ultra-Small QFN Package: 2mm × 1,5mm × 0,4mm
? Wide Supply Range: 2.0V to 5.5V
? Low Current Consumption:
– Continuous Mode: Only 150μA
– Single-Shot Mode: Auto Shutdown
? Programmable Data Rate: SPS to 860SPS
? Single-Cycle Settling
? Internal Low-Drift Voltage Reference
? Internal Temperature Sensor:
– 0.5°C Max Error
? Internal Oscillator
? Four Single-Ended or Two Differential Inputs

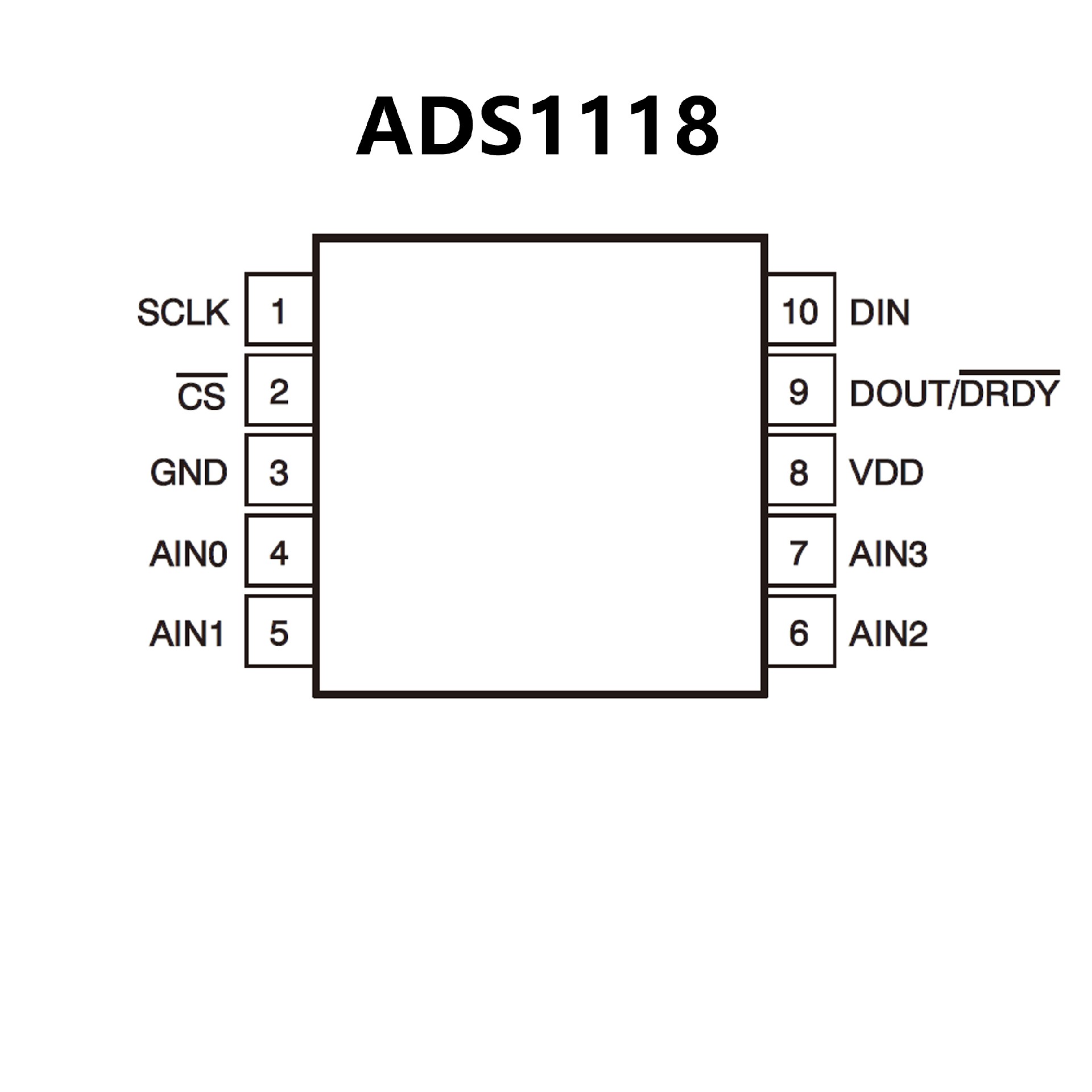

PIN CONFIGUTION
