? 2.5V to 5.5V Input Voltage Range

? Adjustable Output Voltage from 0.6V to VIN

? Up to 95% Efficiency

? Low RDSON MOSFET Switches (100mΩ/55mΩ)

? Power-Save Mode for Light Load Efficiency

? 42μA (TYP) Operating Quiescent Current

? 100% Duty Cycle Capability for Low Dropout

? 1.5MHz PWM Switching Frequency

? Power Good Output (SGM61020P Only)

? Over-Current Protection

? Thermal Shutdown Protection

? Input Under-Voltage Lockout (UVLO) Protection

? Small Packaging:

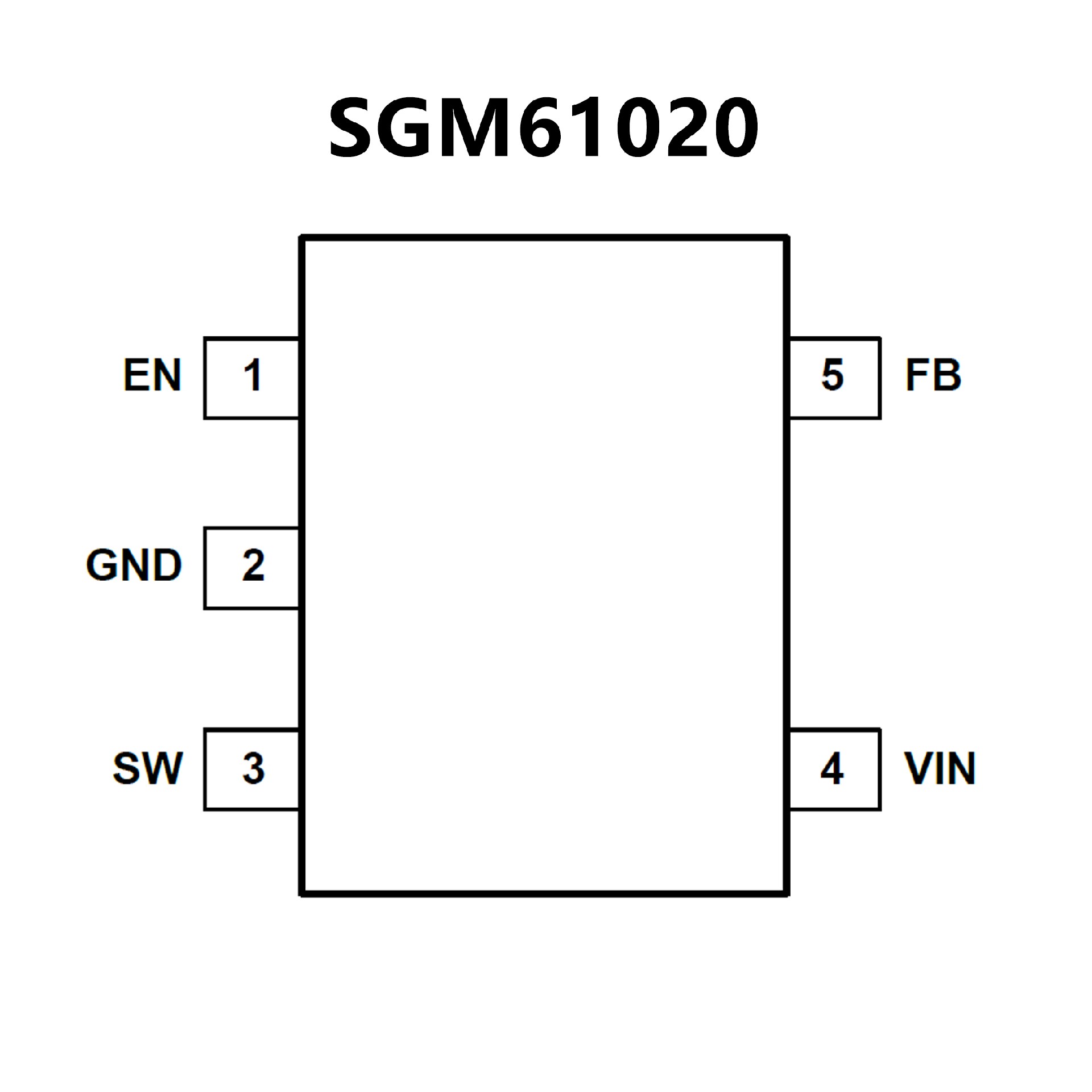

  SGM61020: Available in Green SOT-23-5 and

  SOT-563-6 Packages

  SGM61020P: Available in a Green SOT-563-6

  Package
