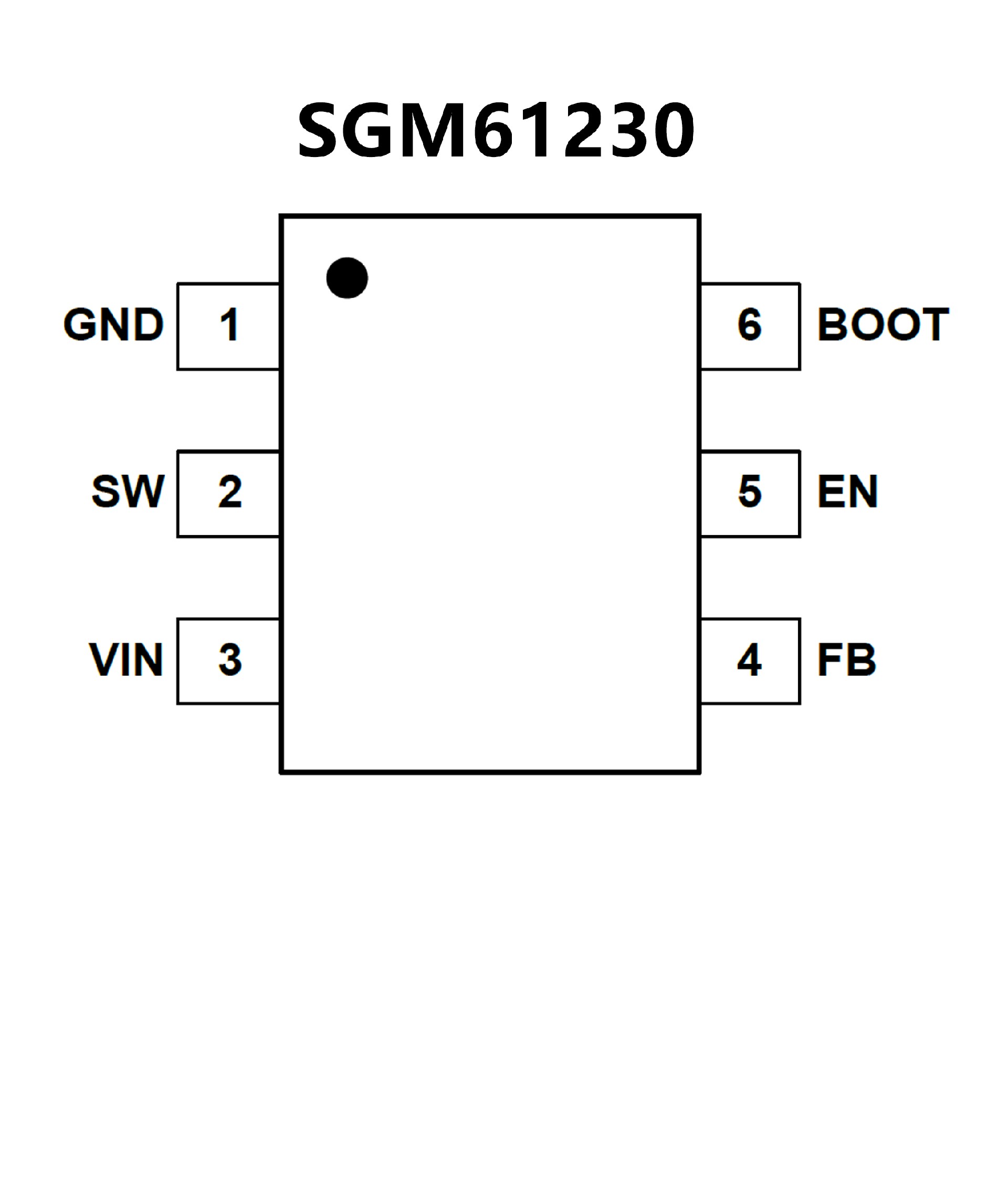

SGM61230.pdf? Wide 4.5V to 28V Input Voltage Range
? 3A Continuous Output Current
? Integrated 66mΩ/36mΩ Power MOSFETs
? Low Quiescent Current: 25μA (TYP)
? Shutdown Current: 2μA (TYP)
? 5ms Internal Soft-Start Time
? Fixed 410kHz Switching Frequency
? Pulse Skip Mode and PWM Mode
? Peak Current Mode Control
? Internal Loop Compensation
? Over-Current Protection for Both MOSFETs
? Output Over-Voltage Protection
? Adjustable Input Under-Voltage Lockout
? Thermal Shutdown with Auto Recovery
? Available in a Green TSOT-23-6 Package

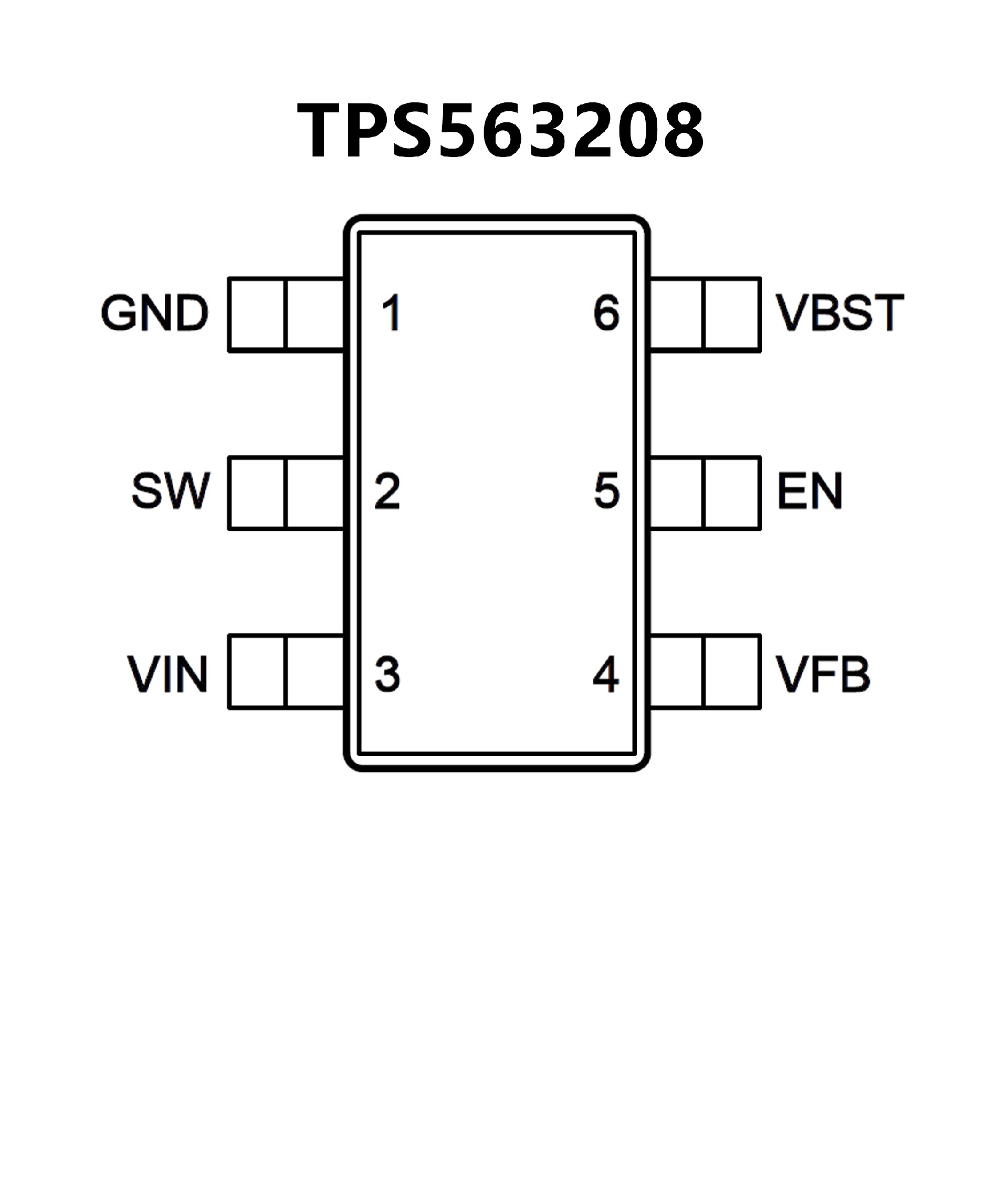

? TPS563201 and TPS563208 3-A Converter
Integrated 95-m? and 57-m? FETs
? D-CAP2? Mode Control with fast transient response
? Input Voltage Range: 4.5 V to 17 V
? Output Voltage Range: 0.76 V to 7 V
? Pulse-skip mode (TPS563201) or Continuous
Current Mode (TPS563208)
? 580-kHz Switching Frequency
? Low Shutdown Current Less than 10 ?A
? 2% Feedback Voltage Accuracy (25 ?C)
? Startup from Pre-Biased Output Voltage
? Cycle-by-Cycle Overcurrent Limit
? Hiccup-mode Overcurrent Protection
? Non-Latch UVP and TSD Protections
? Fixed Soft Start: 1.0 ms
