? Wide 4.5V to 28V Input Voltage Range

? 3A Continuous Output Current

? Integrated 66mΩ/36mΩ Power MOSFETs

? Low Quiescent Current: 25μA (TYP)

? Shutdown Current: 2μA (TYP)

? 5ms Internal Soft-Start Time

? Fixed 410kHz Switching Frequency

? Pulse Skip Mode and PWM Mode

? Peak Current Mode Control

? Internal Loop Compensation

? Over-Current Protection for Both MOSFETs

? Output Over-Voltage Protection

? Adjustable Input Under-Voltage Lockout

? Thermal Shutdown with Auto Recovery

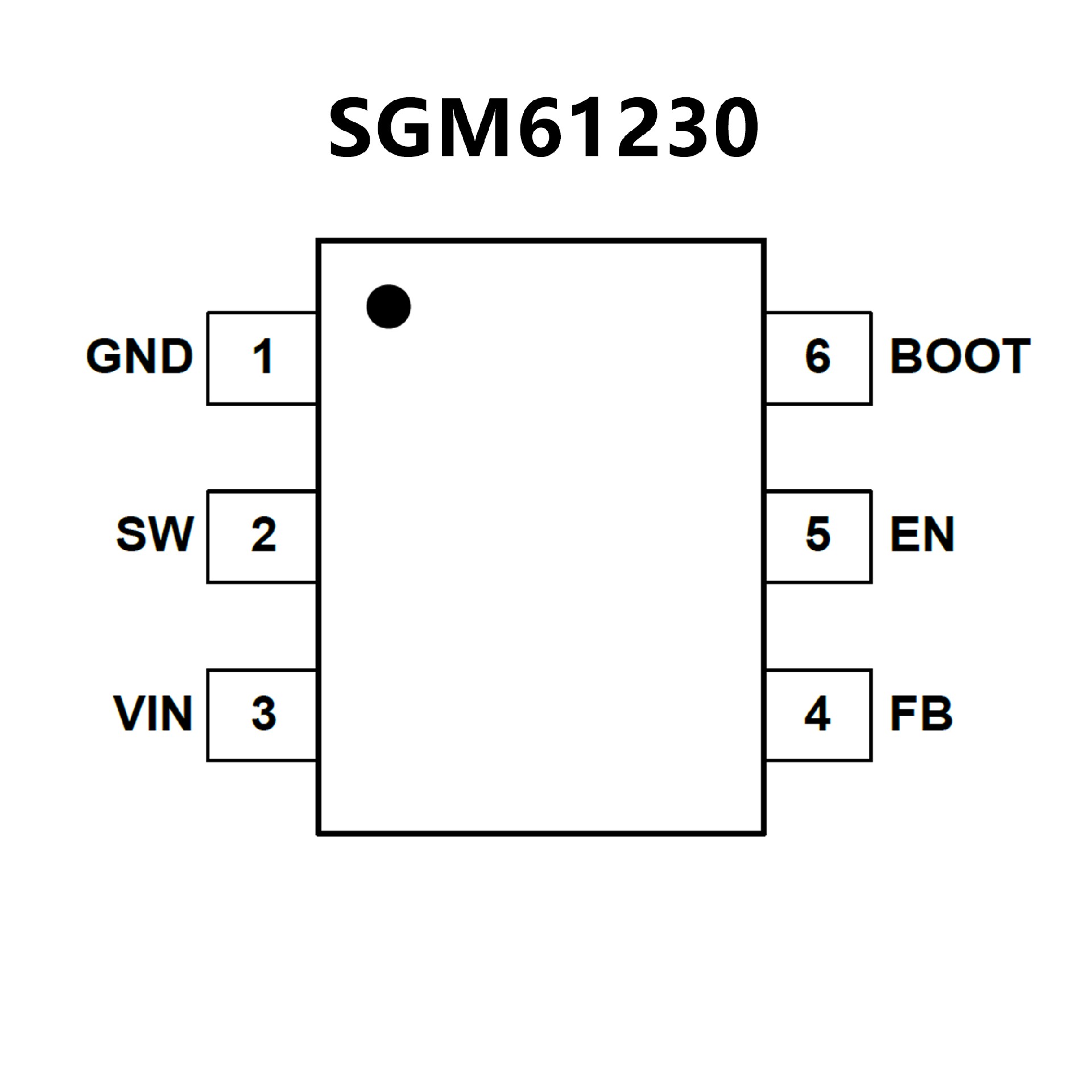

? Available in a Green TSOT-23-6 Package
