? Documentation Available to Aid Functional

  Safety System Design

? Wide 4V to 36V Input Voltage Range

? Up to 1A Continuous Output Current

? Minimum Switching On-Time: 60ns

? 700kHz Fixed Switching Frequency

? 98% Maximum Duty Cycle

? Monotonic Startup with Pre-Biased Output

? Internal Short-Circuit Protection with Hiccup  Mode

? Precision Enable

? Integrated Synchronous Rectification

? Internal Compensation for Ease of Use

? Pin-to-Pin Compatible with SGM61410 and SGM61306

? SGM61310A: PSM at Light Load Condition

? SGM61310B: FPWM at Light Load Condition

? -40℃ to +125℃ Operating Temperature Range

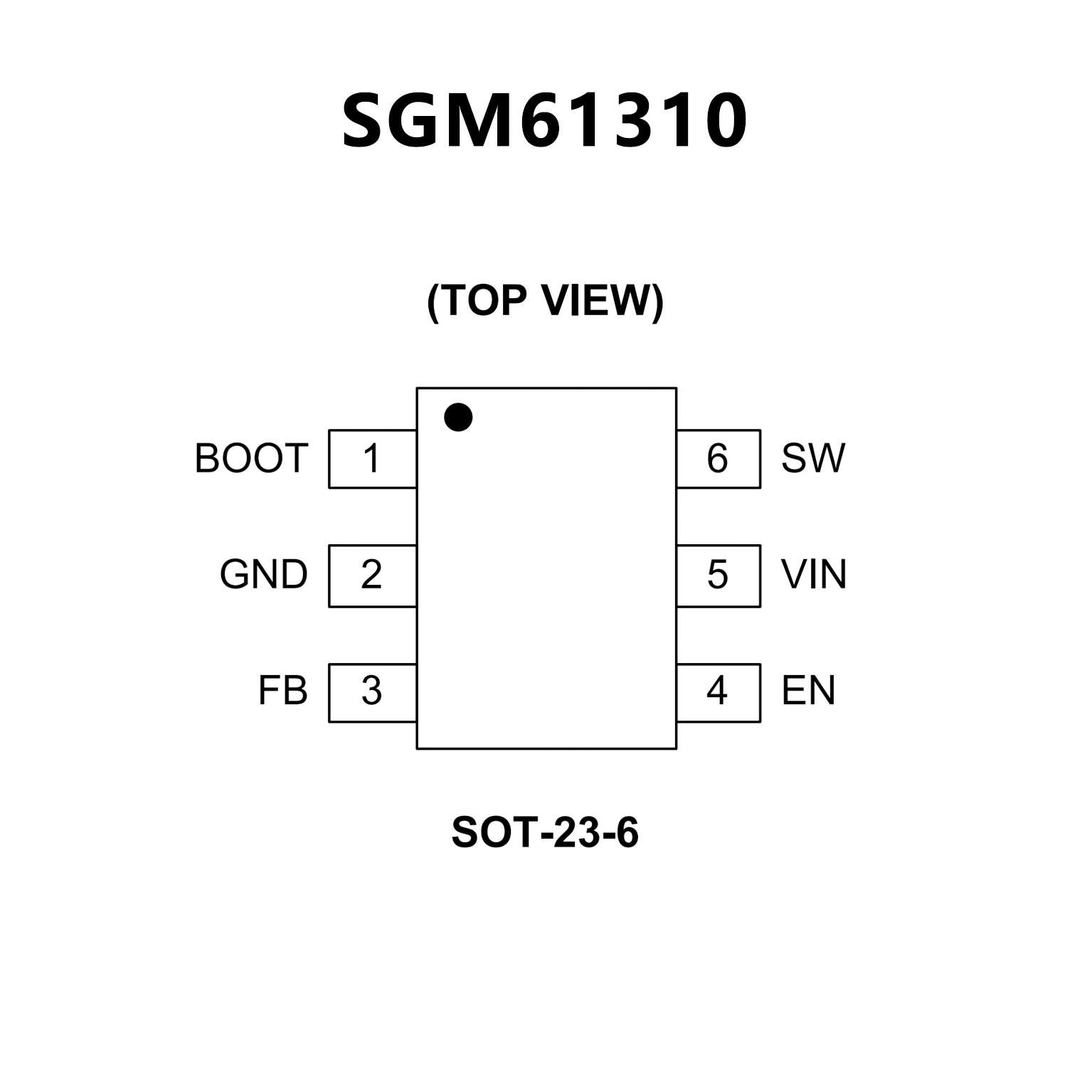

? Available in a Green SOT-23-6 Package
